The ways of installation showed in this page,integrated steel pipe brackets/split steel pipe brackets
and combined brackets are three kind of main installation ways which almost can satisfy the
protector's mounting.
Combined bracket is composed of two parts,their combination angle can be changed by changing
the installation position.
The right-angle bracket is simple and practical for xing,it is xed through two right-angle brackets
with the sensor on mechanical device column,its shortcoming is that the angle is not easy to adjust,it
is suitable for the tting surface which is smooth situation.

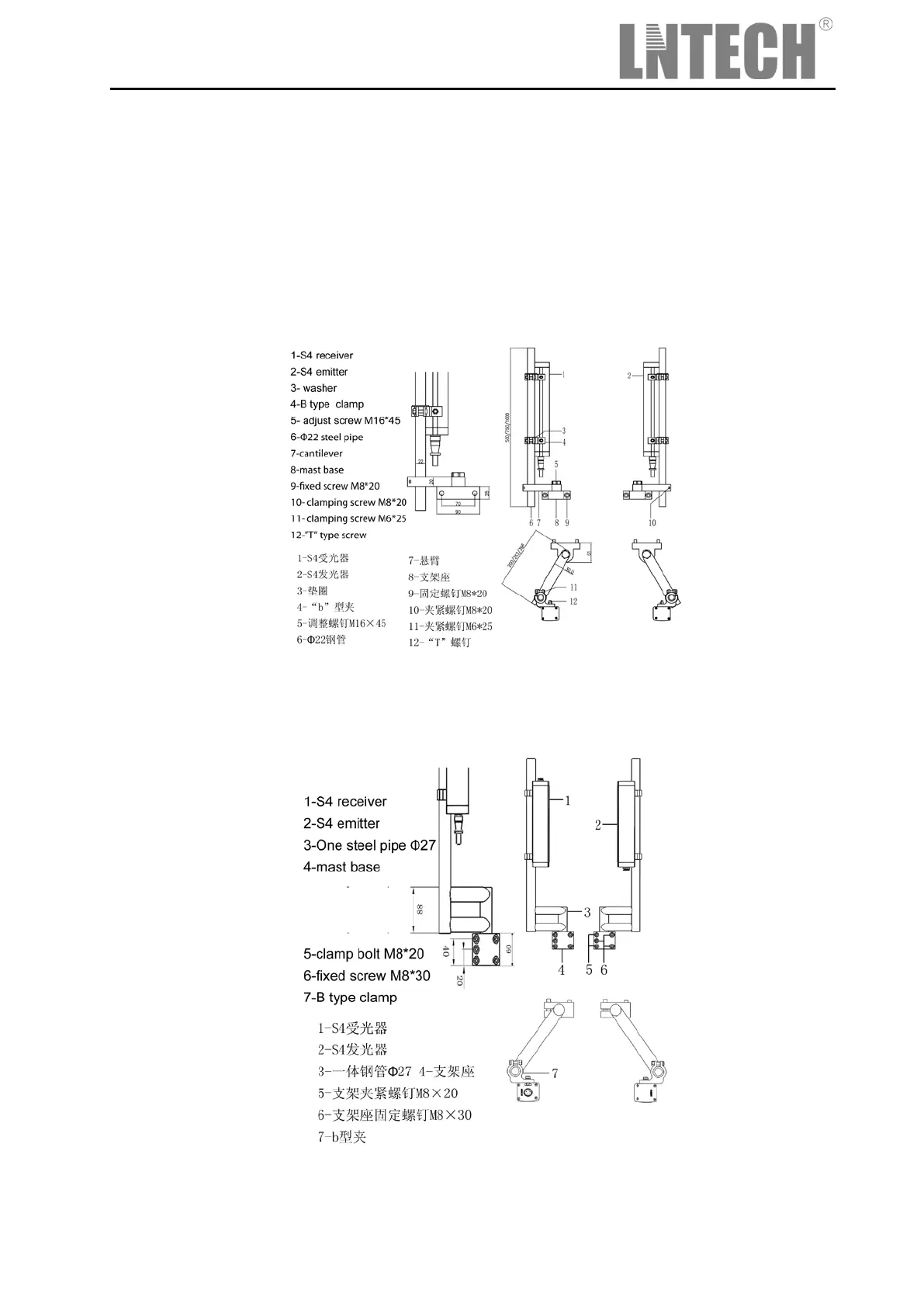

Figure 4-5 Installation of split steel pipe brackets
Figure 4-6 Installation of integrated steel pipe brackets
4.5 Accessories
