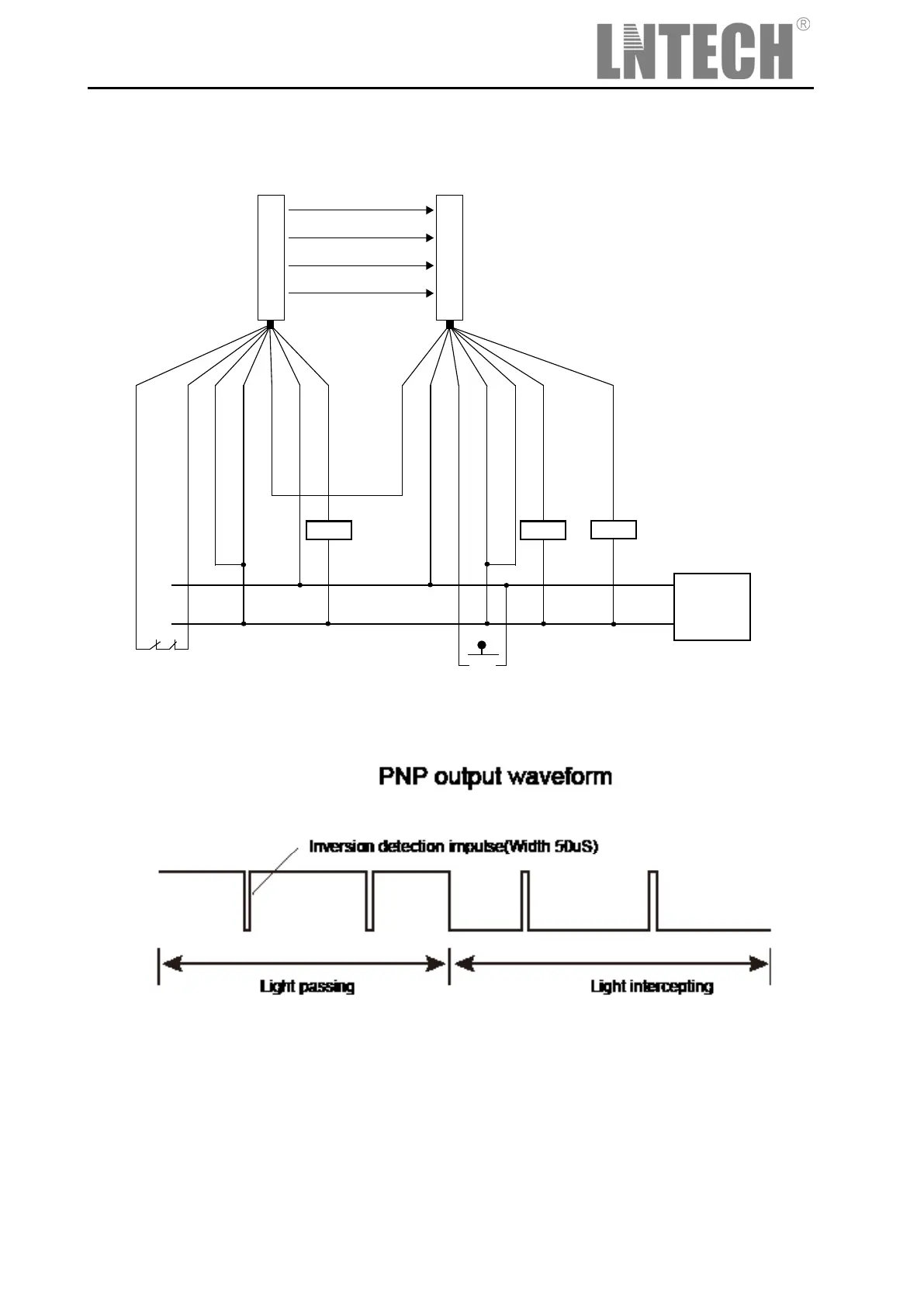

6.2 Wiring of PNP
Output T
ype Protector
Figure 6-2 Wiring of PNP Output
T
ype Protector and output waveform
Ｋ１
Ｋ２
+
-
24VDC
Power
Supply
Ｋ１
Ｋ２
EDM (Red T)
EDM (Red T)
Shield
Shield
0V (Blue GND)
0V (Blue GND)
synchronizing signal line(White CP)
synchronizing signal line(White CP)
24V (Brown VDD)
24V (Brown VDD)
auxiliary output (Black S2)
Manual reset line (Red T)
output OSSD1 (Black S1)
output OSSD2 (Green S1)
PNP load
PNP dural output wiring
emitter
receiver
