LNTECH S4 SERIES User Manual

23

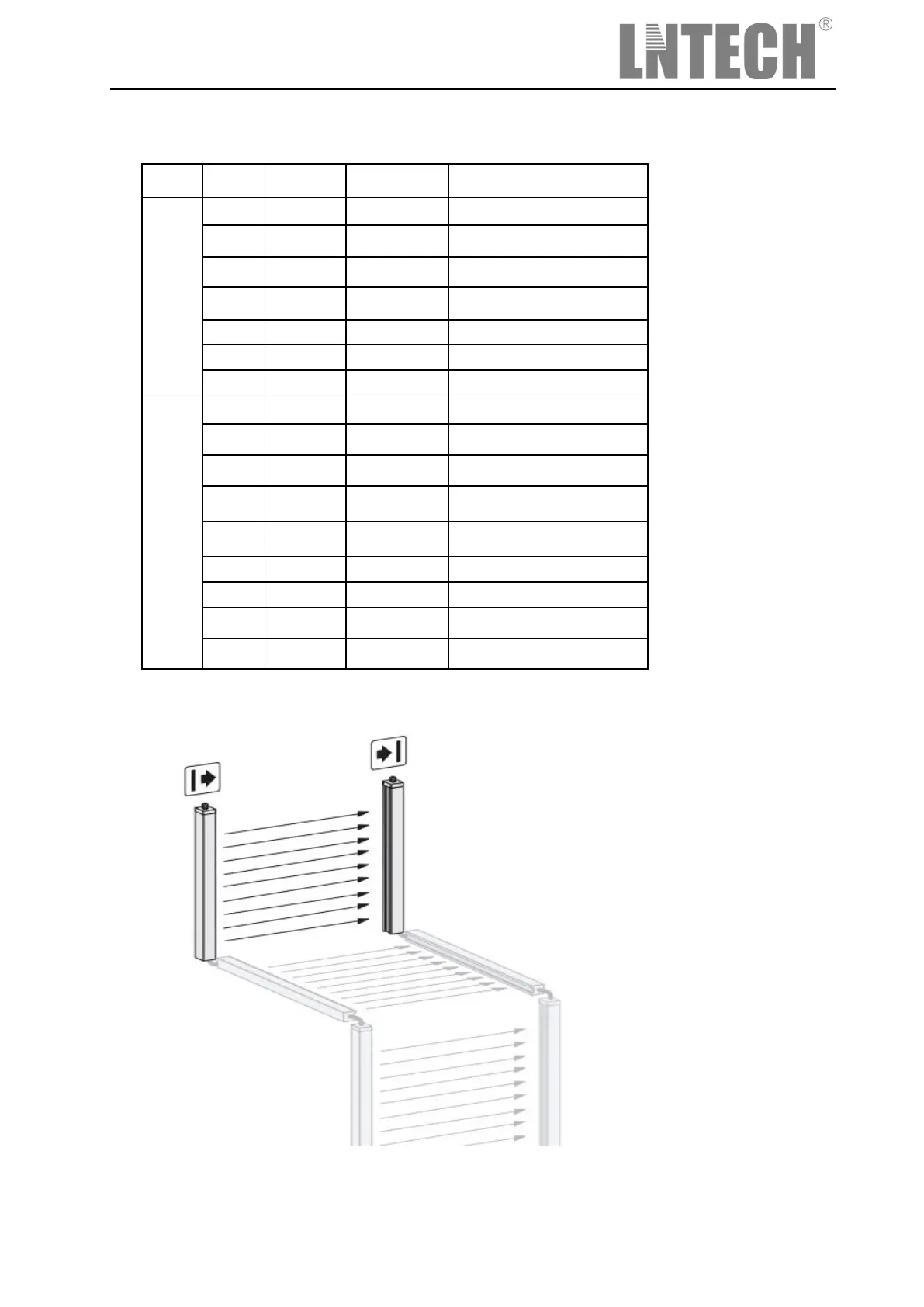

6.3 The signal table
6.4 Cascade light cutrain
To provide effective protection,
choose cascade light curtain,
most three-level cascade.
The longest signal table between
the cascade light curtain is 1m.
1、
2、
Parts Pin Cable Color Function Comments
Emitter
1 Blue 0V GND
2 Brown DC12V or DC24V VCC
3 Green OSSD3 Aux output
4 White CP Link line between emitter and receive
5 Yellow EDM1 Relay detection
6 Red EDM2 Relay detection
7 Shield SHIELD Shield
Receiver
1 Blue 0V GND
2
Brown
DC12V or DC24V VCC
3 Green OSSD2 NPN output or PNP output (Assign)
4 White CP Link line between emitter and receiver
5 Black OSSD1 NPN output or PNP output ( Assign)
6 Red RESET Reset
7 Shield SHIELD Shield
8 Non Unassigned
9 Non Unassigned
