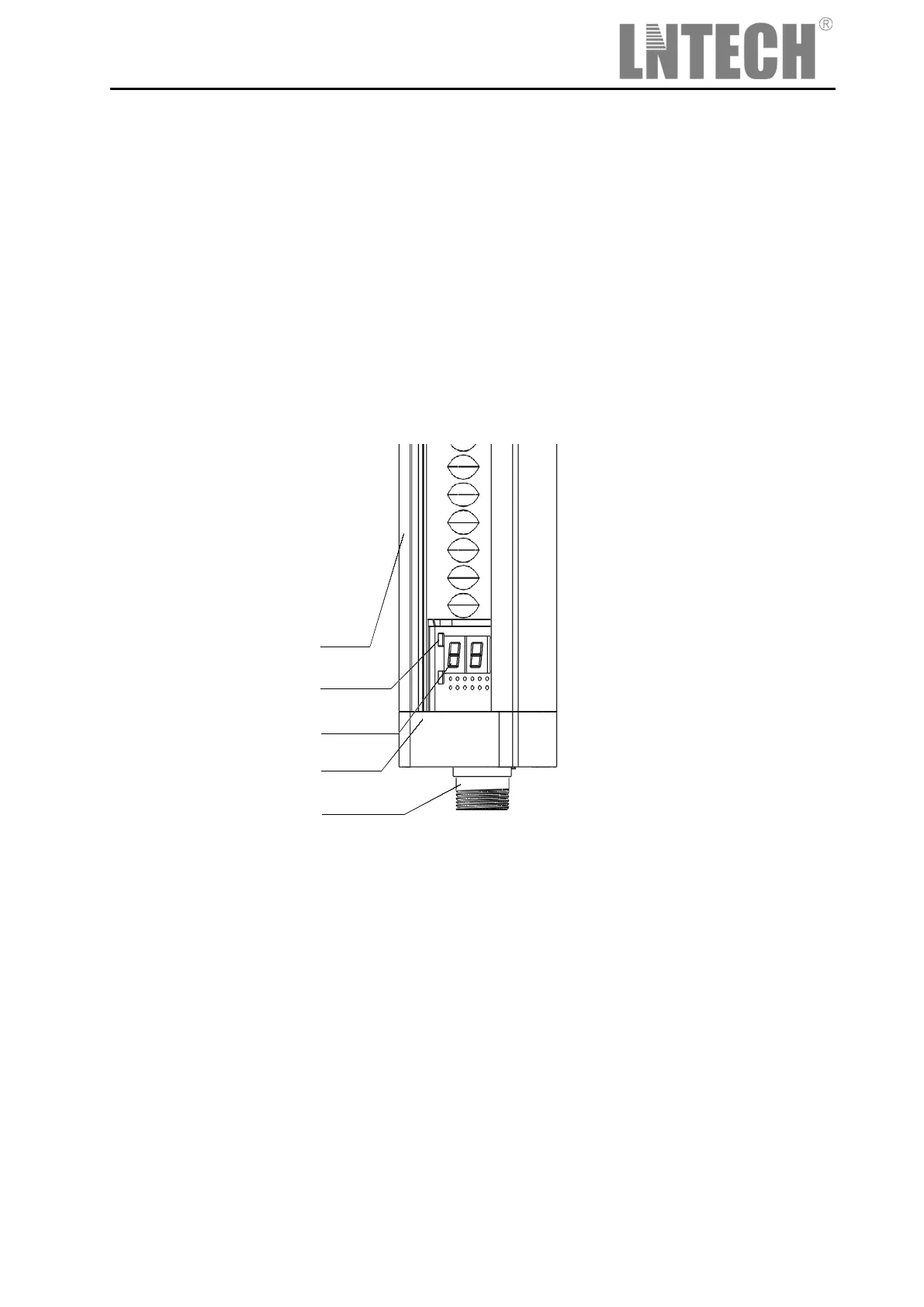

1. Sensor shell
2. Indicator light: Light passing indicator, green. Light intercepting indicator, red.
3.Digital display
(1)receiver digital display:Light intercepting indicator, the number of intercepted light beam. Light
passing indicator,light intensity. Failure indication,failure state
(2)emitter digital display: Light passing indicator,—. Light intercepting indicator,丄. Failure
indication,failure state.
4.The top cover
5.Parts that connects the sensor and the signal cable
4.6
Installation tools
Electric drill,bit(Ф4.2,Ф5.0,Ф6.8,Ф10)
Screw tap(Size:M6,M8)
Crosshead and A"screwdriver
Sechskant-Schraubendreher(Size:5mm,6mm)
12 "shifting wrench
long at nose pliers and so on
5 S4 Series Light Curtain’s installation
5.1 S4 parts’ function description
Figure 5-1 Parts’ function description of S4 series
