5
2 CON·X·US Installation (continued)
Installation and Operation Instructions
INSTALL
RELAY,REMOTE
MONITORING
INSTALL 8X
SCREW,PHP,
6-32 X 1/4,STL
INSTALL 4X
STAND-OFF,HEX,6-32 X 1/2,STL,NICKEL
REMOVE 4X
SCREW,PHP,PLASTIT,#8X1/2,STL,ZINC
REMOVE 6X
SCREW,PHP,SHTMTL,,#10 X 1/2
REMOVE TOP
REMOVE FRONT
DOOR
REMOVE BEZEL

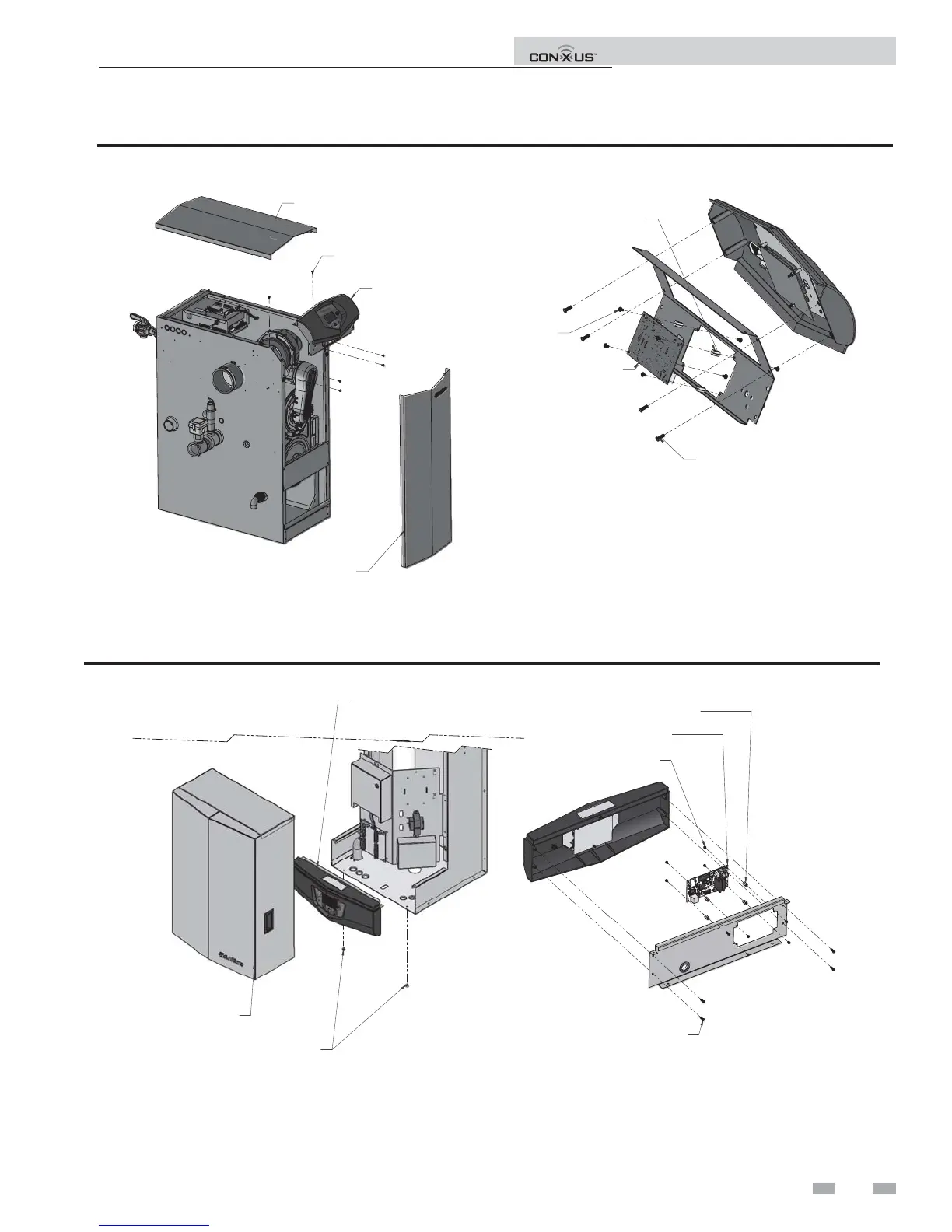

Figure 2-2B_Install KB CON·X·US Board
REMOVE 4X
SCREW,PHP,PLASTIT,#8X1/2,STL,ZINC
INSTALL 8X
SCREW,PHP,6-32 X 1/4,STL
INSTALL 4X
STAND-OFF,HEX,6-32 X 1/2,STL,NICKEL
INSTALL
RELAY,
REMOTE MONITORING
REMOVE FRONT DOOR
REMOVE 2X
SCREW,PHP,SHTMTL,#10X1/2
REMOVE BEZEL
Figure 2-2C_Install WH CON·X·US Board
NOTE: On units purchased after Serial #1915 the bezel bracket will not be required. If purchased between Serial #H10 to D15
the bezel bracket (see Table 2B on page 4) is required. Be certain to record the CON·X·US board QR code (see FIG. 3-9 on page
12) before mounting the bezel to the unit.
NOTE: On units purchased after Serial #1915 the bezel bracket will not be required. If purchased between Serial #H10 to D15 the
bezel bracket (see Table 2B on page 4) is required. Units purchased prior to Serial #H10 are not compatible.
