4
2 CON·X·US Installation
Installation procedure
1. Using four (4) 100053762 screws, install the four (4)
stando s (100134798) into the four (4) small holes on the
front right side of the unit (see FIG.’s 2-2A through
2-2F).
2. Using four (4) 100053762 screws, install the CON·X·US
board (100094892) onto the stando s installed in Step 2.
Installation and Operation Instructions
Part # Description
100265396
KIT,BRKT,BEZEL,CONXUS,KB
100265397
KIT,BRKT,BEZEL,CONXUS,WH
2X BUSHING, SNAP, 1-1/4"
4X SCREW,PHP,6-32 X1/4,STL
4X STAND-OFF, #6x1/2" HEX
CON·X·US BOARD
A
DETAIL A
2X RIVET, NYLON PUSH
2X HARNESS CLIPS
4X SCREW, PHP, 6-32 X 1/4 ST

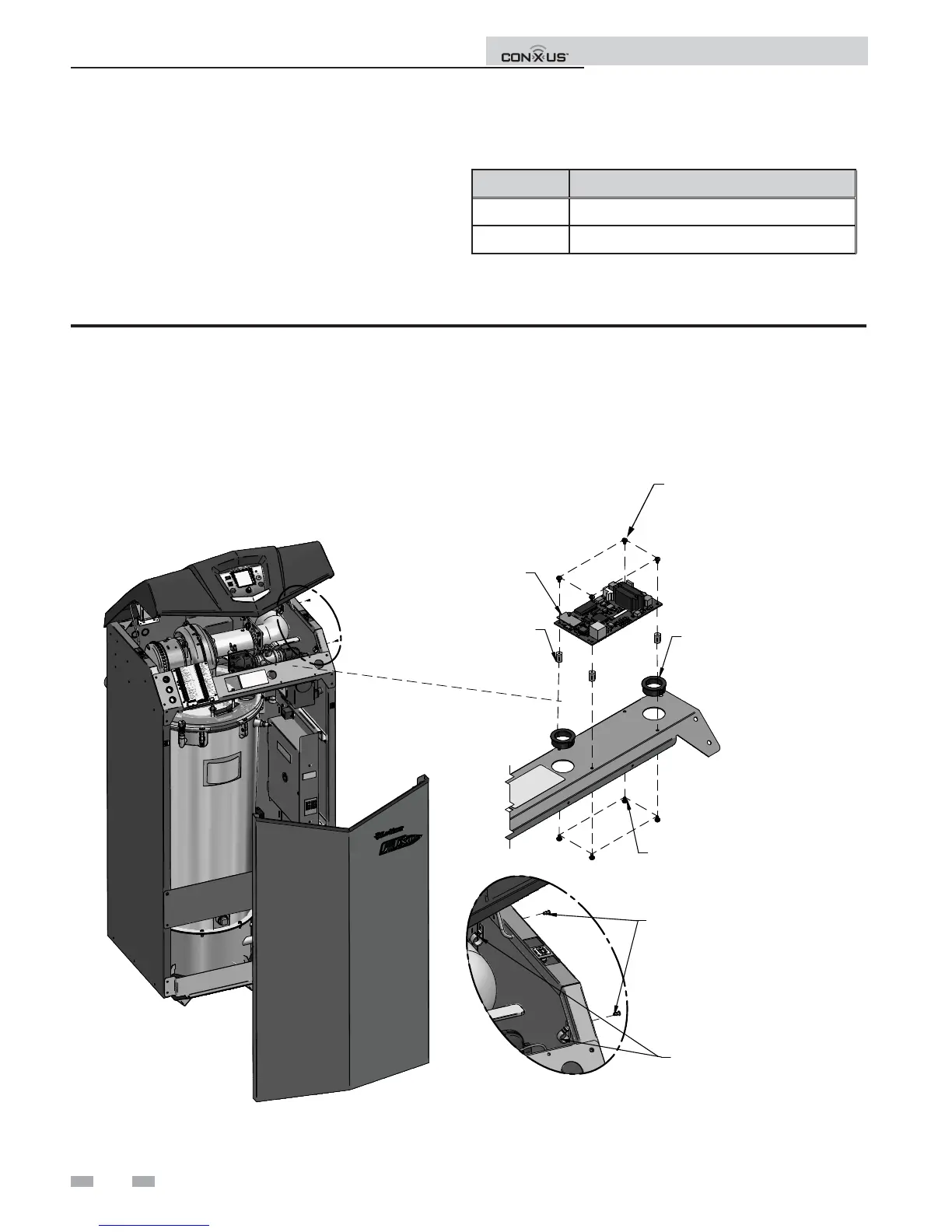

Figure 2-2A_Install FTXL CON·X·US Board
NOTE: FTXL Models Only:
a. Install two (2) push rivets (100134843) on the right side of the unit (reference Detail A). Once installed attach the harness
clips (100137491) to the push rivets on the inside of the unit (Detail A), above the main control panel.
b. Install two (2) bushings (100163015) into the le and right side of the CON·X·US board.
Table 2B - List of bracket kits
