Lochinvar SOLUTION 260000 - Full System Flow

SOLUTION
BOILER
BACKFLOW
PREVENTER
PRESSURE
REDUCING VALVE
PRESSURE
GAUGE
TEMPERATURE / PRESSURE
GAUGE
AIR
SEPARATOR
EXPANSION
TANK
BALL VALVE
(TYPICAL)
UNION
(TYPICAL)
PRESSURE
RELIEF VALVE
MAKE UP WATER
FROM
SYSTEM
SYSTEM
CIRCULATOR
TO
SYSTEM
SYSTEM SUPPLY
SENSOR
DRAIN
Y-STRAINER
(RECOMMENDED)

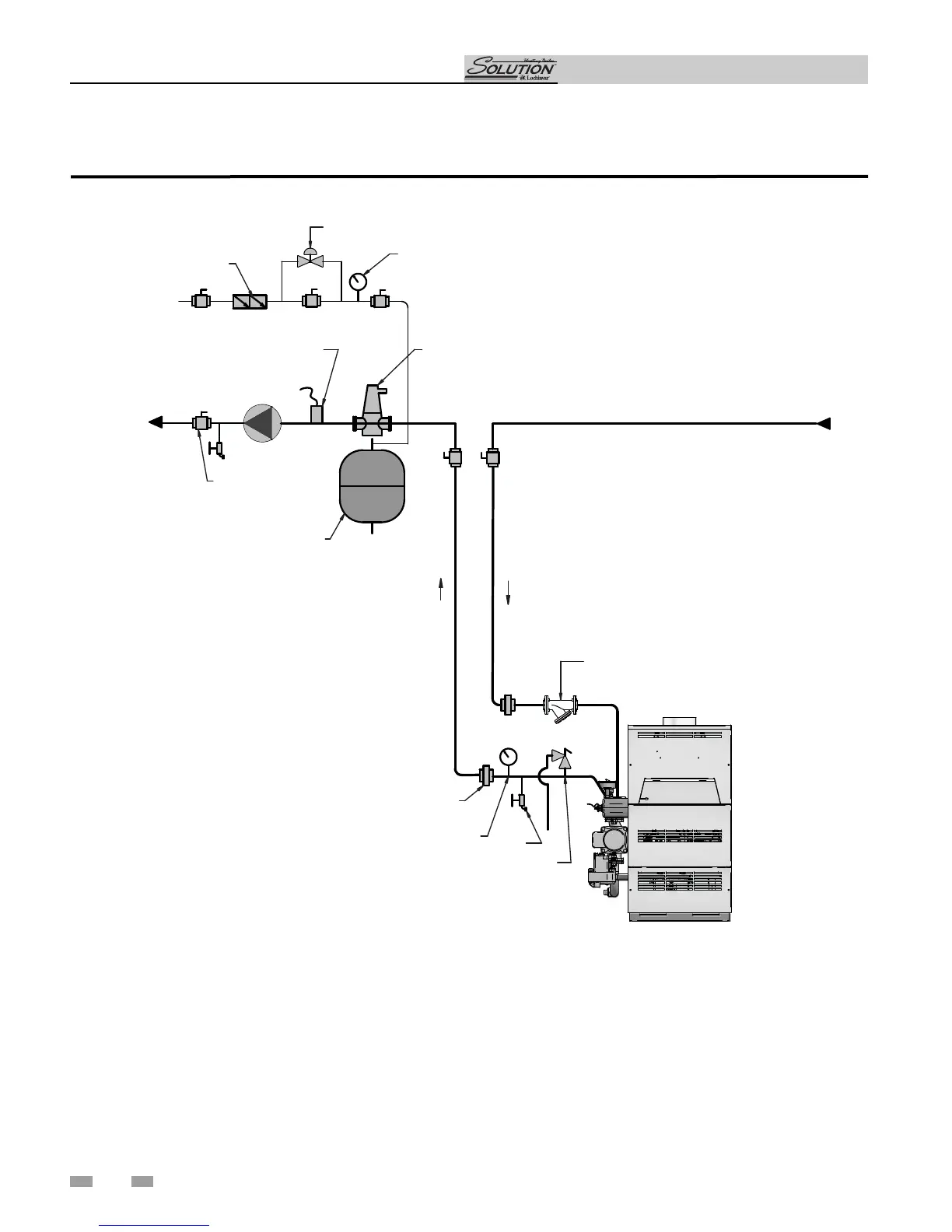

Figure 4-7_Single Boiler Full System Flow
Full System Flow
