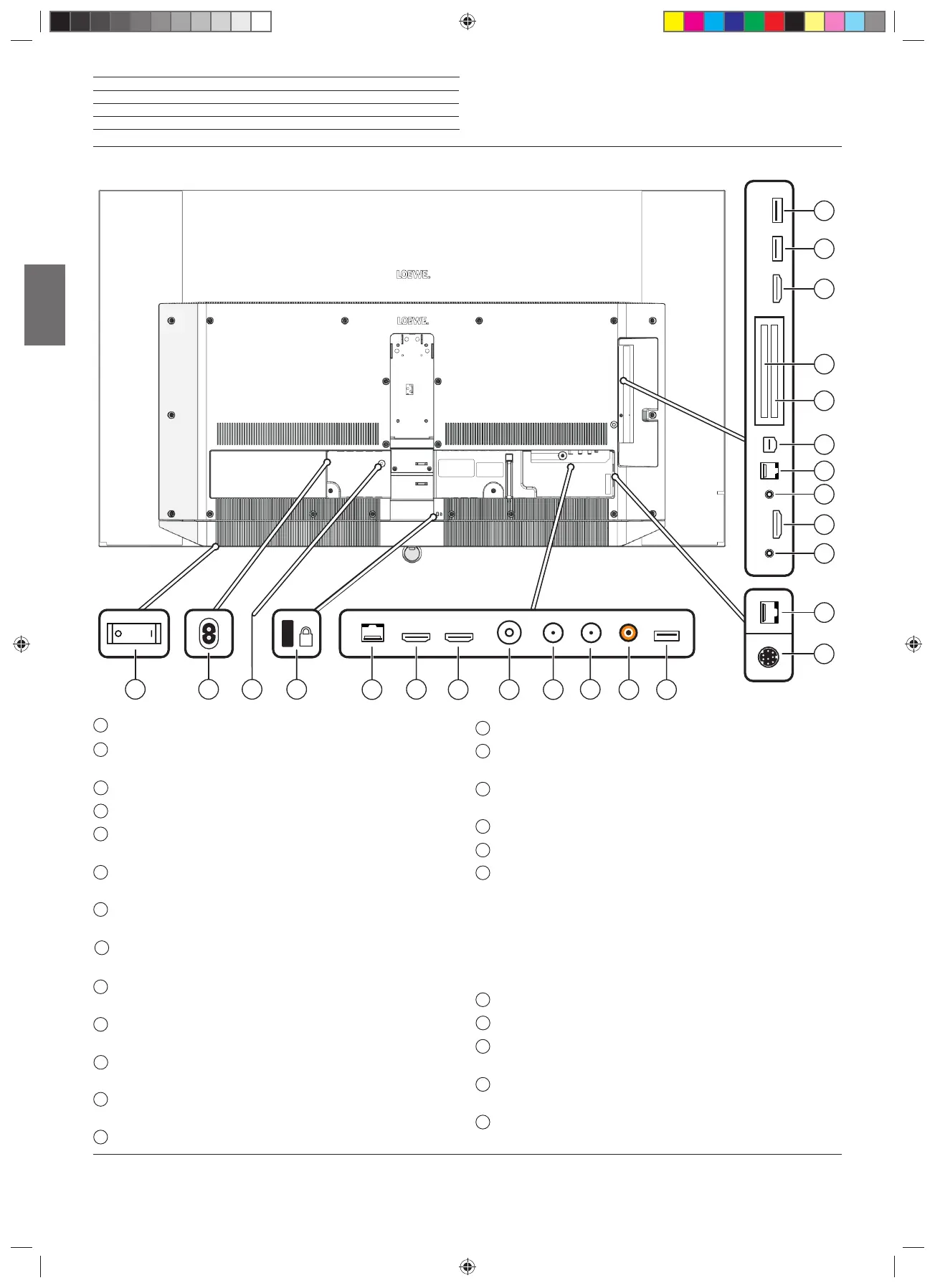

Position and function of the connections

Connections

K
4
5
7
8
6
11
2
3
X
9
10
12
13
16
20
19
17
18
14
15
21
22
23
1
Mains switch
AC IN - Mains connection
Mains socket – 220-240 V ~ 50 / 60 Hz
X
Transport lock for kinematics (please remove screw)
3
Slot for Kensington lock
4
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
5
HDMI 1 ARC - HDMI input 1
(2
(with Audio Return Channel)
HDMI – Digital Video IN/Audio IN/OUT
6
HDMI 2 - HDMI input 2
(2
HDMI – Digital Video IN/Audio IN
7
ANT TV - Antenna/cable analogue / DVB-T/T2 / DVB-C
IEC socket – 75 Ohm / 5 V / 80mA
8
ANT SAT 1 - Satellite antenna (Sat tuner 1) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
9
ANT SAT 2 - Satellite antenna (Sat tuner 2) DVB-S/S2
F socket – 75 Ohm / 13/18 V / 500mA
10
SPDIF OUT - Audio output (digital)
Cinch socket (orange)
11
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 900mA)
12
MOTOR UNIT - rotating stand control
1
2
13
DIGITAL AUDIO LINK - Surround audio outputs (digital) – (RJ45)
14
HEADPHONE - Headphone connection
Jack 3,5 mm – Headphones 32–200 Ohm
15
HDMI 3 - HDMI input 3
(2
HDMI – Digital Video IN/Audio IN
16
AUDIO OUT - Audio output (analogue) L/R – ( Jack 3,5 mm)
17
RS-232C - Serial interface
(1
– (RJ12)
18
AV - Micro AV socket
(1
Audio/Video IN with Scart adapter: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
Audio/Video IN with VGA adapter:
PC/STB video signal
Component (YPbPr)
L/R
19
COMMON INTERFACE - CI slot 1 (standard V1.3)
20
COMMON INTERFACE - CI slot 2 (standard V1.3)
21
HDMI 4 - HDMI input 4
(2
HDMI – Digital Video IN/Audio IN
22
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
23
USB - USB connection
USB type A – USB 2.0 (max. 500mA)
(1
The adaptor is available as an accessory from your dealer.
(2
Before connecting an external device, please be aware that the individual HDMI ports can work with a range of different signals, see online User handbook, chapter
Technical data, section bild (across sets) – Signals via HDMI/AV (PC IN).
