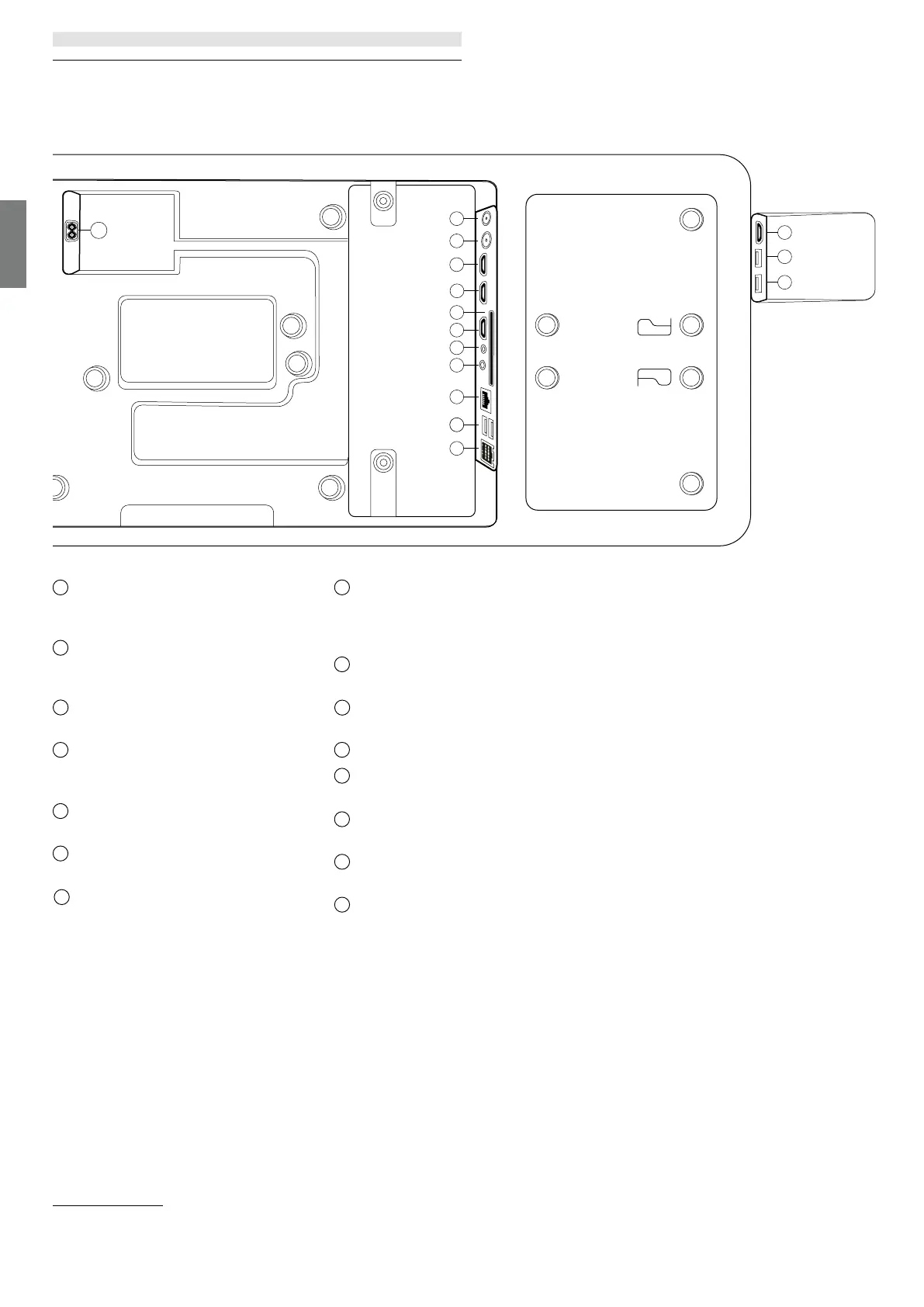

Position and function of the connections
14
13
12
1
2
3
4
5
6
7
8
9
10
11
15
1
ANT SAT - Satellite antenna
DVB-S/S2 HD
F socket – 75 Ohm / 13/18 V / 500mA
2
ANT TV - Terrestrial/cable
analogue / DVB-T/T2/C HD
IEC socket – 75 Ohm / 5 V / 80mA
3
HDMI 3 - HDMI input 3
HDMI – Digital Video IN/Audio IN
4
HDMI 2 - HDMI input 2
(with enhanced Audio Return Channel)
HDMI – Digital Video IN/Audio IN/OUT
5
COMMON INTERFACE -CI slot
(standard V1.4)
6
HDMI 1 - HDMI input 1
HDMI – Digital Video IN/Audio IN
7
SERVICE
8
AUDIO OUT/TOSLINK - Audio output
(analogue/digital)
(1
Jack 3,5 mm (analogue) L/R
Mini TOSLINK (digital)
9
LAN - Network connection
RJ-45 – Ethernet / Fast Ethernet
10
2x USB 2.0 - USB connection
USB type A – USB 2.0 (max. 500mA)
11
klang bar i
12
HDMI 4 - HDMI input 4
HDMI – Digital Video IN/Audio IN
13
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 1000mA)
14
USB 3.0 - USB connection
USB type A – USB 3.0 (max. 1000mA)
15
AC IN - Mains connection
Mains socket - 220-240 V - 50 / 60 Hz
Position and function of the connections
1)
The analogue or digital output signal at the AUDIO OUT connector cannot be used simultaneously.
