Loewe bild i | User Manual (part 2 of 2)
Technical data

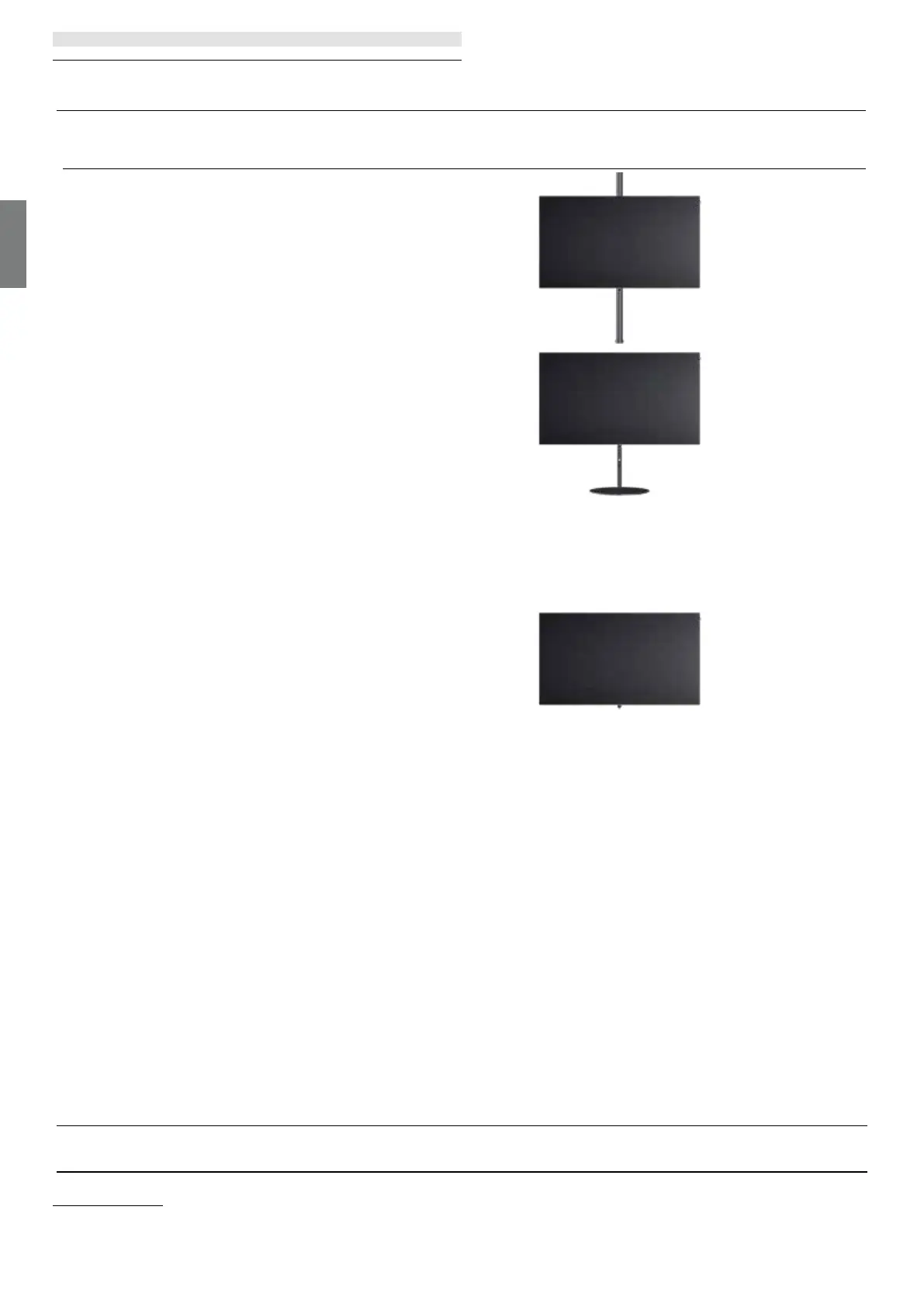

Set-up options
Further set-up options are possible. Your dealer will be happy to advise you.
Set up option ground
oor2ceiling stand
bild i.65 dr+ set: W* x H x PD x TD/FP = 145,7 x 86,8 x 6,4 x 18,0
bild i.55 dr+ set: W* x H x PD x TD/FP = 123,6 x 74,4 x 6,4 x 17,5
bild i.48 dr+ set: W* x H x PD x TD/FP = 107,7 x 65,4 x 6,4 x 17,1
bild i.65 dr+: W* x H x PD x TD/FP = 145,7 x 85,8 x 6,4 x 18,0
bild i.55 dr+: W* x H x PD x TD/FP = 123,6 x 73,4 x 6,4 x 17,5
bild i.48 dr+: W* x H x PD x TD/FP = 107,7 x 64,4 x 6,4 x 17,1
manually rotatable (+/– 110°), concealed cable routing,
height adjustable (220-290 cm)
oor stand ex
bild i.65 dr+ set: W* x H x PD x TD/FP = 145,7 x 128,9 x 6,4 x 54,0
bild i.55 dr+ set: W* x H x PD x TD/FP = 123,6 x 116,5 x 6,4 x 54,0
bild i.48 dr+ set: W* x H x PD x TD/FP = 120,8 x 107,5 x 6,4 x 54,0
bild i.65 dr+: W* x H x PD x TD/FP | 145,7 x 128,9 x 6,4 x 54,0
bild i.55 dr+: W* x H x PD x TD/FP | 123,6 x 116,5 x 6,4 x 54,0
bild i.48 dr+: W* x H x PD x TD/FP | 120,8 x 107,5 x 6,4 x 54,0
manually rotatable (+/– 45°), concealed cable routing,
with or without carrier for accessory tray or soundbar
Set up option wall
wall mount slim 432
bild i.65 dr+ set: W* x H x PD x TD | 146,0 x 86,8 x 6,4 x 8,4
bild i.55 dr+ set: W* x H x PD x TD | 123,6 x 74,4 x 6,4 x 8,4
bild i.48 dr+ set: W* x H x PD x TD | 107,7 x 65,4 x 6,4 x 8,5
bild i.65 dr+: W* x H x PD x TD | 146,0 x 85,8 x 6,4 x 8,4
bild i.55 dr+: W* x H x PD x TD | 123,6 x 73,4 x 6,4 x 8,4
bild i.48 dr+: W* x H x PD x TD | 107,7 x 64,4 x 6,4 x 8,5
at mounting
wall mount universal
bild i.65 dr+ set: W* x H x PD x TD/FP | 145,7 x 86,8 x 6,4 x 10,1
bild i.55 dr+ set: W* x H x PD x TD/FP | 123,6 x 74,4 x 6,4 x 10,1
bild i.48 dr+ set: W* x H x PD x TD/FP | 107,7 x 65,4 x 6,4 x 10,2
bild i.65 dr+: W* x H x PD x TD/FP | 145,7 x 85,8 x 6,4 x 10,1
bild i.55 dr+: W* x H x PD x TD/FP | 123,6 x 73,4 x 6,4 x 10,1
bild i.48 dr+: W* x H x PD x TD/FP | 107,7 x 64,4 x 6,4 x 10,2
tiltable mounting
Dimensions in cm: W = width, H = height, PD = product depth, TD = total depth. Technical modications and errors excepted.
* In the area of the side-mounted Loewe clip, the width of the TV set may increase by up to 1 cm, depending on the type of set.
