Loewe CONNECT 42 MEDIA 67407 User Manual

19
W1521
Buchsenplatte /
Socket PCB
70185.050
W1014
W1016
W1013
W1007
W1004
W1002
W1001
Basicboard
89974.343
Inverter
LCD-Controller
Panelkit
70147.001
89207.004
86318.065
88247.067
88247.068
85855.075
70221.002
70062.001
87791.052
Netzschalter
Main switch
32370
W1401 W1301
87534.061
Single Common Interface
89905.051
W2052
W2051
Signalboard
89935.060
W2050
W2004W2000 W2001 W2002
W2400
W2005 W2006 W2007 W2008
W
2011
W
2012
W2014 W2018
W2046 W2047
W2053
W2034
W2024
W2025
W2026
W2023W2016 W2022W2015
W
2040
W
2039
W2042 W2049
W2033
USB
89844.003
W6000
W6004
Bedieneinheit /
Operating Unit
89835.050
Lautsprecherbox
Speaker box
70100.001
Lautsprecherbox
Speaker box
70100.001
~230V
Media Network Player
33393.001
CN5
CN1
CN8
CN19
LAN
W2054
70184.001 70173.001
W1009
86188.057
Lichtleiter kompl.
70227.001
Externe WLAN-Antenne
33459
WLAN-Antenne
33463
Festplatte / Harddisk
32944.056

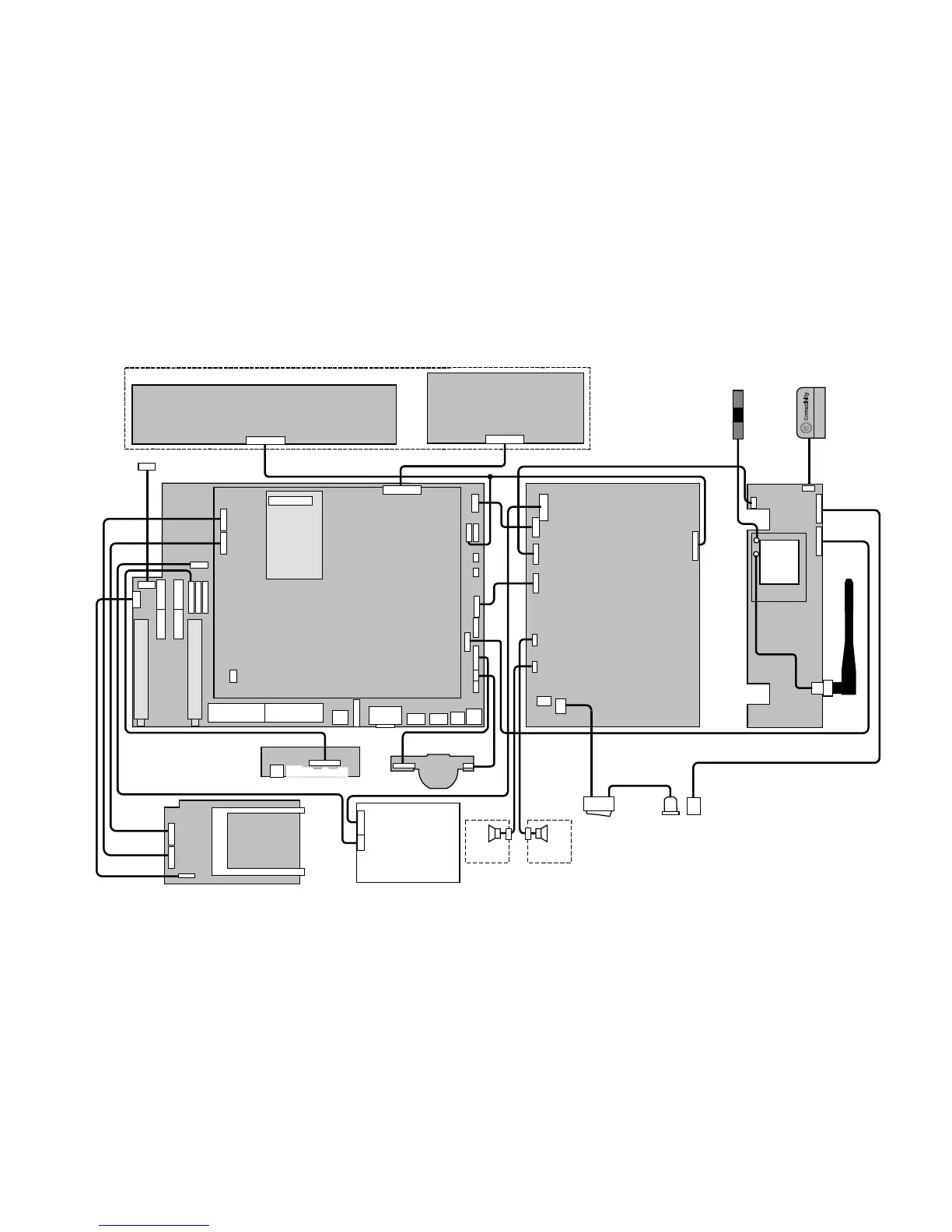

Verdrahtungsplan / Wiring diagram Connect 42 Media Full HD+/DR+
W2032
W1008
70062.001
W2020
W1030
89914.051
89914.051
70032.002
70064.002
W2050 / W4005
MPEG-Encoder
89612050
87286.069
