(1
Equipment and upgrade options, see page 150.
(2
The position of the aerial sockets depends on the tuner equipment.

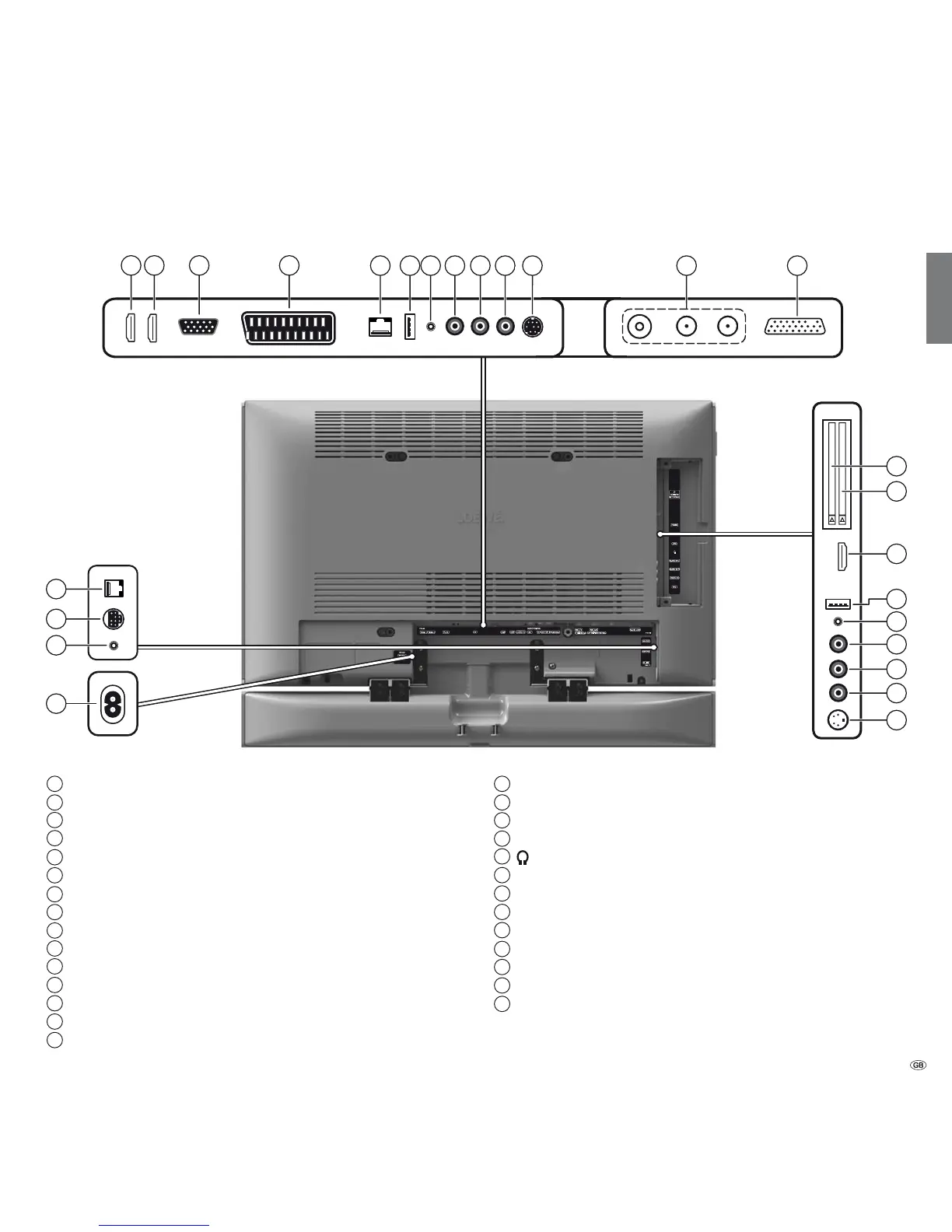

Connections rear side of the device (Individual 32)
1
HDMI 1 - HDMI input 1
2
HDMI 2 - HDMI input 2
3
PC IN - VGA/XGA input
4
AV - Euro-AV socket
5
LAN - Network connection
6
USB - USB connection
7
AUDIO IN - Audio input (analogue)
8
AUDIO DIGITAL OUT - Digital audio output
9
AUDIO DIGITAL IN - Digital audio input
10
CENTER IN - Centre audio input (analogue)
11
SERVICE - Service socket
12
ANT-TV - Antenna/cable analogue/digital
(1 (2
12
ANT SAT - Satellite antenna (Sat tuner 1)
(1 (2
12
ANT SAT 2 - Satellite antenna (Sat tuner 2)
(1 (2
13
AUDIO LINK - Surround audio outputs (analogue)
14
CI-COMMON INTERFACE - Common Interface 1 (CI slot 1)
15
CI-COMMON INTERFACE - Common Interface 2 (CI slot 2)
16
HDMI 3 - HDMI input 3
17
USB - USB connection
18
- Headphones connection
19
AUDIO IN L - Audio in left (AVS)
20
AUDIO IN R - Audio in right (AVS)
21
VIDEO IN - Video in (AVS)
22
AVS - S-Video connection (AVS)
23
220-240V~ 50/60Hz – Mains connection
24
IR LINK - Infrared transmitter connection
25
CONTROL - Rotating stand control
26
RS-232C - Serial interface
1 2
