7 CHANGING THE TABLE SYSTEM
7.1 REPLACING AN ACTUATOR
1. Disconnect the Power Hub from the Mains
2. Disconnect the Actuator from the Power Hub
3. Remove the Height-Adjustable Column from the Table Top
4. Remove the Actuator from the Height-Adjustable Column
5. Mount the new Actuator into the Height-Adjustable Column. Consult the relevant Operating
Manual for exact instructions and safety information
6. Mount the Height-Adjustable Column back onto the Table Top
7. Plug the Actuator back into the Power Hub
8. Reconnect the system to the Mains
7.1.1 UNPLUGGING THE CABLE FROM THE ACTUATOR
CAUTION
Risk of minor or moderate injury through electric shocks
Inserting foreign objects into connectors may lead to minor or moderate injury
through electric shocks.
• Disconnect the Actuator from the Power Hub before unplugging the Cable.
NOTICE
Unplugging the Actuator Cable incorrectly may damage the connectors irreparably.
• Do not attempt to remove the Actuator Cable by hand
• Consider whether it is necessary to remove the Cable before doing so
• Read the instructions below in full
Proceed as follows to remove the Actuator Cable from the Actuator:
1. Disconnect the Power Hub from the Mains
2. Disconnect the Actuator from the Power Hub and wait 10 seconds for residual voltage to dissipate
3. Insert a at-head screwdriver into the gap behind the cable until it reaches the bottom of the connector
4. Use the screwdriver to lever the Actuator Plug gently upwards and out of the connector

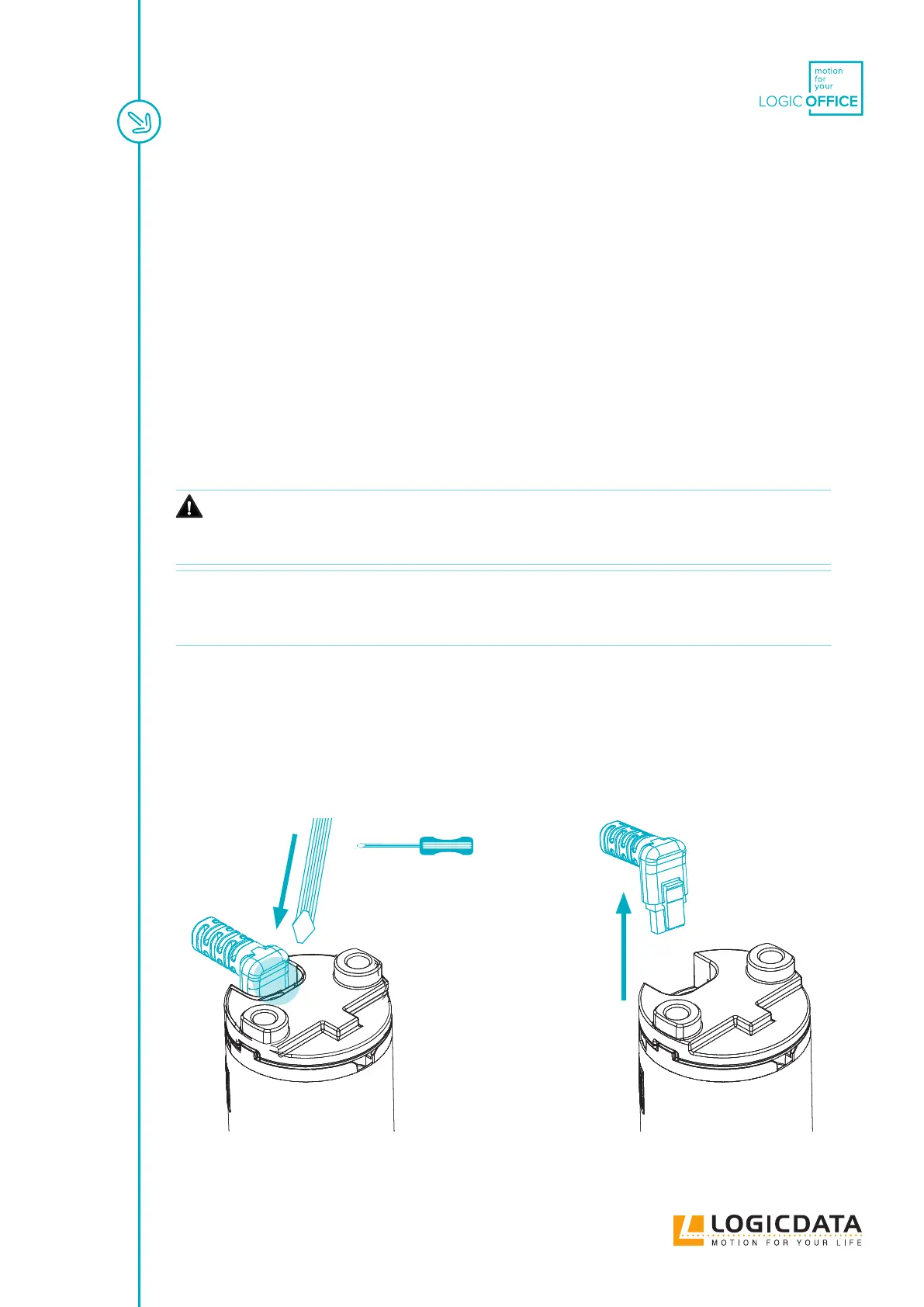

Fig. 7: Removing the Actuator Cable
Gently lift the Plug
Insert screwdriver
(at-head recommended)
