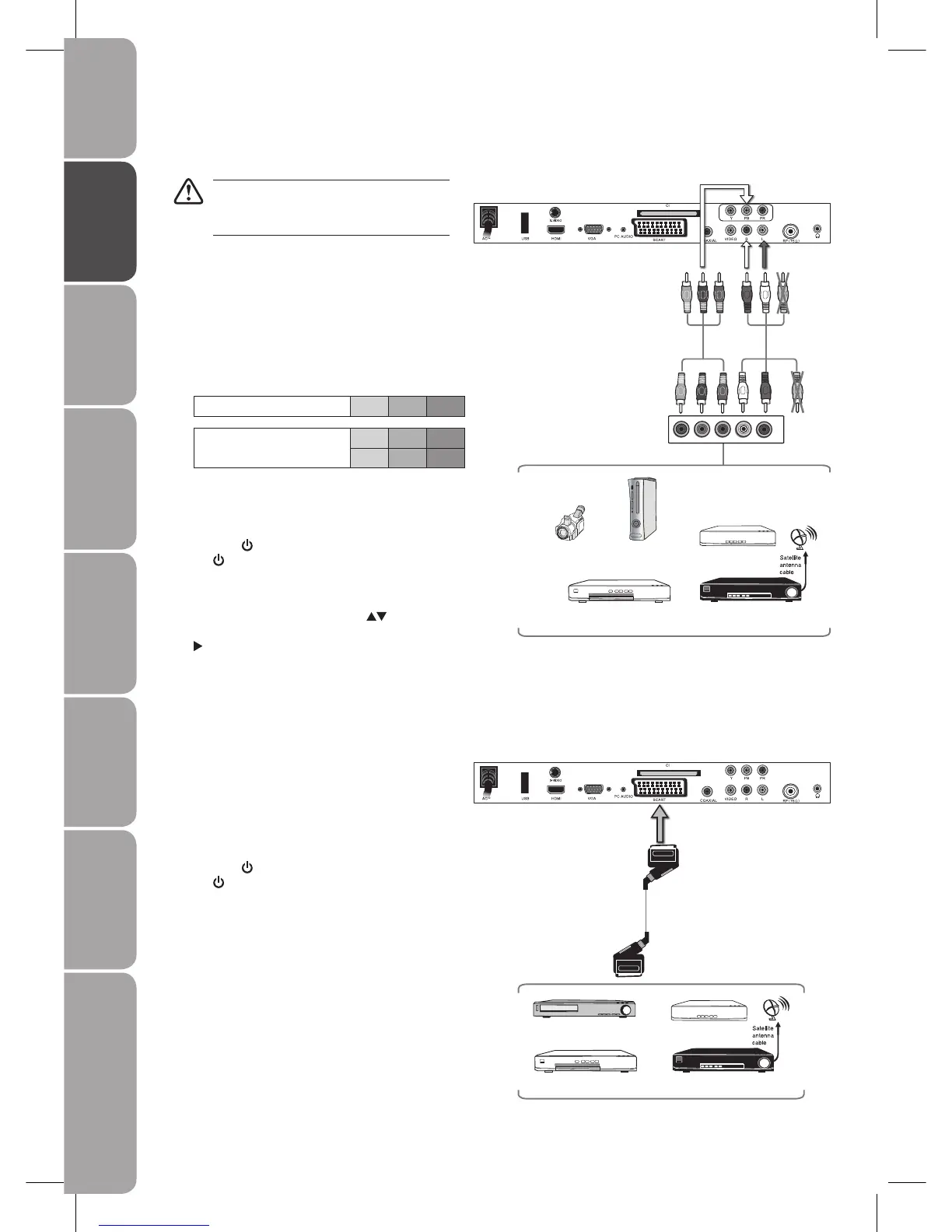

Connecting an A/V Device with Component (YPbPr) Cable
Not all A/V devices have the ability to connect
to a TV. Please check your A/V devices user
guides for compatibility.
Use a component cable to connect the external 1.
A/V device’s component output jacks to the TV’s
YPbPr IN jacks. Use an audio cable to connect the
external A/V device’s component audio jacks to
the TV’s AUDIO IN jacks.
To achieve better picture quality, connect a DVD
player to the component input ports as shown
below.
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
Plug the connected devices into the mains socket 2.
before switching on the POWER ON/OFF switch at
the bottom of the TV.
Press the3.
/ I button on the top panel of the TV or
the
button on the remote control to turn on your
TV.
Press the 4. SOURCE button on the remote control
to display the Source List. Use the
buttons to
select YPBPR, and then press the OK button or the
button.
Connecting an A/V Device with SCART Cable
Use a SCART cable to connect the external A/V 1.
device’s SCART socket to the TV’s SCART IN jack.
Plug the connected devices into the mains socket 2.
before switching on the POWER ON/OFF switch at
the bottom of the TV.
Press the3.
/ I button on the top panel of the TV or
the
button on the remote control to turn on your
TV.
The TV will change the input source to 4. SCART
automatically once the A/V device is switched on.
Rear View of TV
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
AV Cable
(included)
Rear View of TV
Component Cable
(not included)
To Next Page
