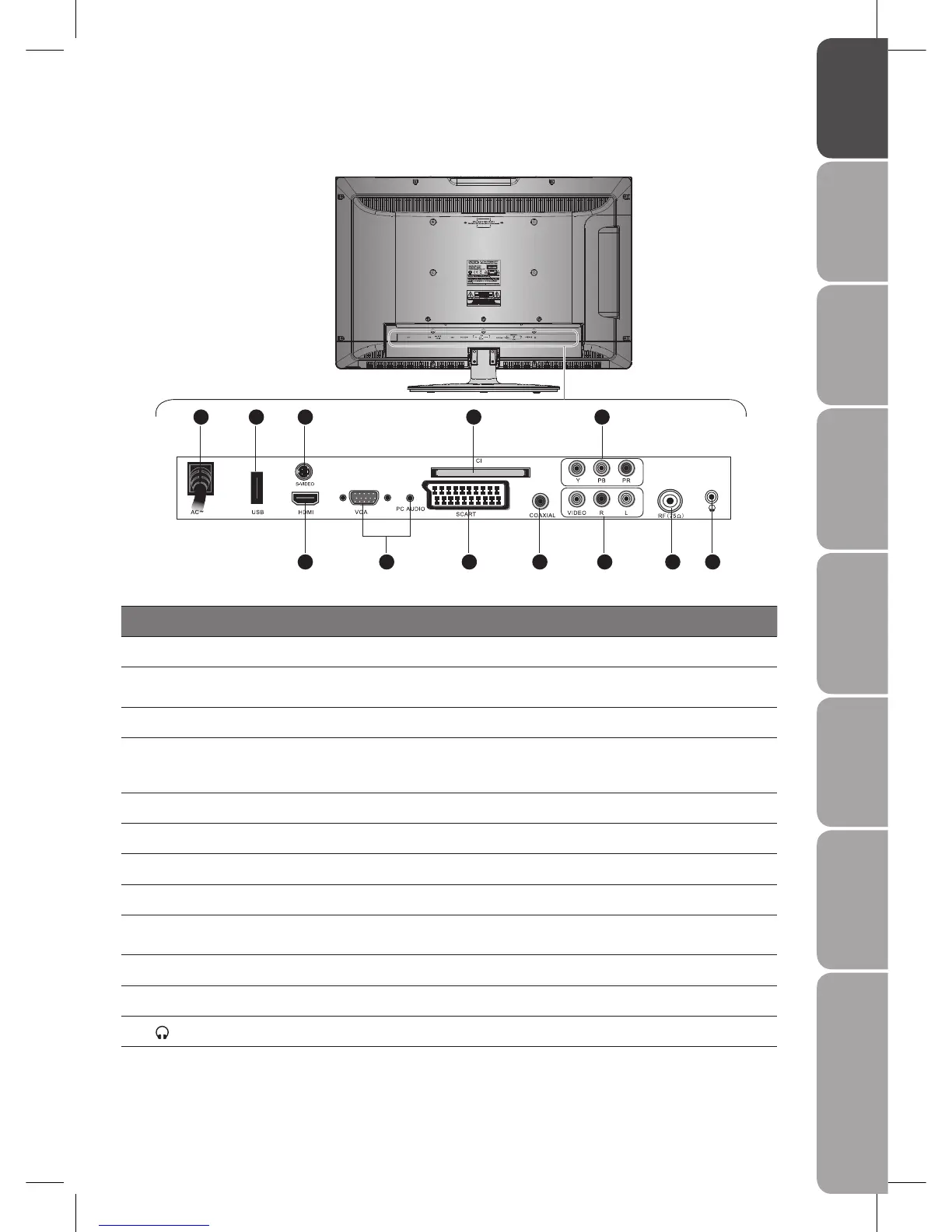

Rear View and Jacks
Item Description
1 AC~ Connect the mains cable to the mains socket.
2 DVR USB port
Allows the insertion of a USB storage device. You can view media files or record DTV
programmes through this port.
3 S-VIDEO Connect to VCR, DVD Player, or other AV devices with S-Video output jacks.
4 HDMI
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all digital audio/
video interface between this TV and any HDMI-device, such as a set-top box, Blu-ray
player, and A/V receiver.
5 VGA / PC AUDIO Connect to a PC or other devices with a VGA interface.
6 CI (Common Interface) Slot Allows the insertion of a Common Access Module. (Refer to page 29 for details.)
7 SCART Connect to camcorders, VCR, DVD Player, or other AV devices with SCART output jack.
8 COAXIAL Connect to the audio jack on the digital/standard 5.1 audio system.
9 Y, PB, PR
Connect to the DVD player, Digital Set-Top-Box, or other A/V devices with component
(YPbPr) video and audio output jacks.
10 VIDEO / AUDIO (L/R) Connect to the Composite VIDEO and AUDIO (L/R) output jacks on external video devices.
11 RF (75 Ω) Connect to the aerial socket on the wall with the RF coaxial cable.
12
Connect earphones for private listening.
1 2 3 6 9
4 5 7 8 10 11 12
