Logik L65UE18 User Manual

10

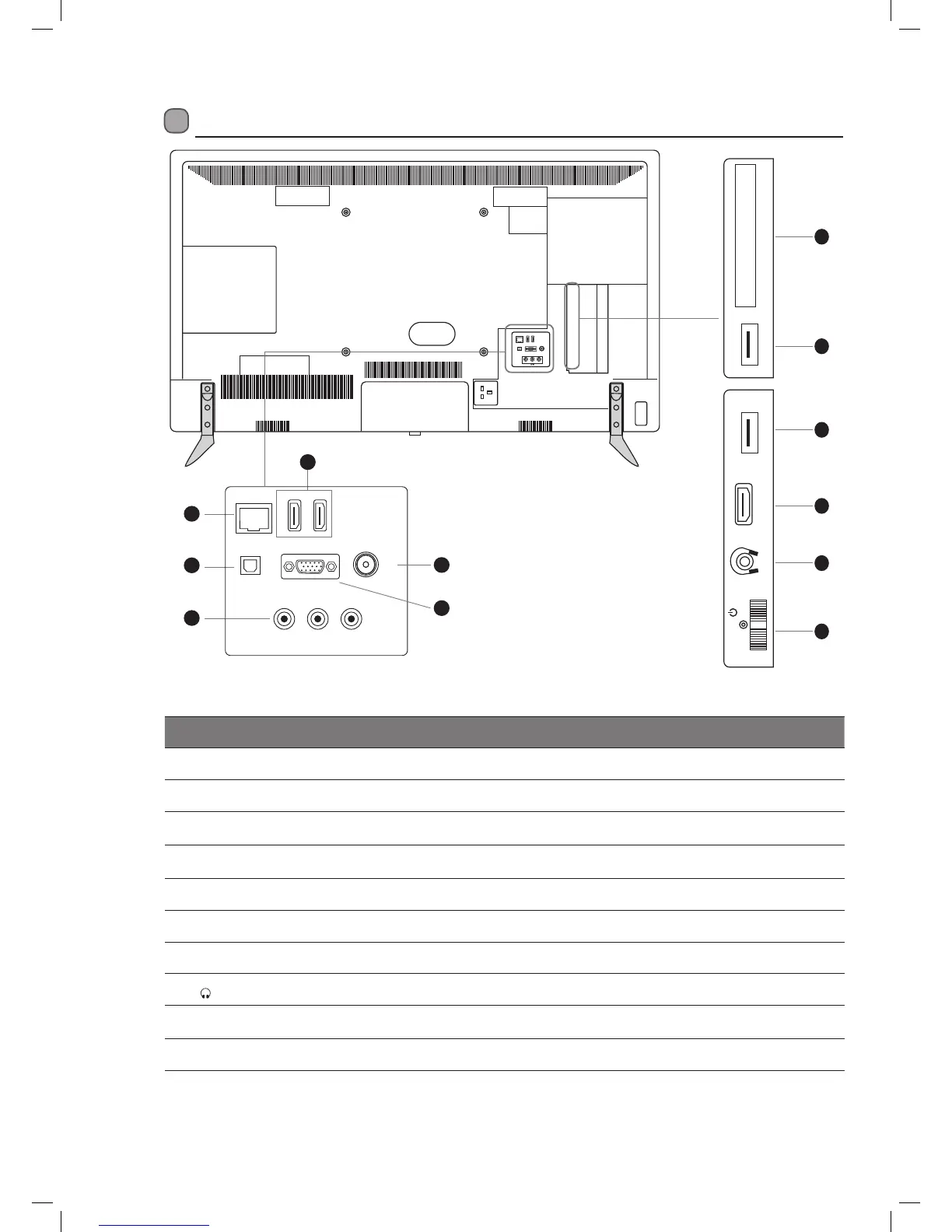

Rear View and Sockets
HDMI3 HDMI 2
(ARC)
LAN
ANT.
VGA
Optic.OUT
SPDIF
R L VIDEO
Item Description
1 LAN Connect to a router via a LAN cable for smart TV services.
2 Optic OUT Optical audio out (Digital) - Connects to an audio device via an optical cable.
3 AV IN
Connects to composite video and AUDIO (L/R) output sockets on external video devices.
Audio inputs (red and white) also used with VGA input.
4 HDMI 1, 2(ARC) & 3
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
5 ANT Connects to the aerial socket on the wall with the RF coaxial cable.
6 VGA Connects to a computer or other devices with VGA interfaces.
7 MULTI FUNCTION SWITCH Switches the TV into standby and on. Selects modes (channel,volume, and source).
8
Connects to the headphones. The headphone jack must only have 2 divisions to mute the audio.
9 USB (USB 2.0)
Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
10 COMMON INTERFACE Allows the insertion of a Common Access Module.
1
3
4
2
7
8
4
9
9
10
HDMI 1
HDMI3 HDMI 2
(ARC)
LAN
ANT.
VGA
Optic.OUT
SPDIF
LNB
300mA Max.
13V dc/18V dc
COMMON INTERFACE
USB
5Vdc
Max. 500mA
USB
5Vdc
Max. 500mA
MODE - / I
- +
R L VIDEO
HDMI 1
HDMI3 HDMI 2
(ARC)
LAN
ANT.
VGA
Optic.OUT
SPDIF
COMMON INTERFACE
USB
5Vdc
Max. 500mA
USB
5Vdc
Max. 500mA
MODE - / I
- +
R L VIDEO
BACK AV
5
6
Logik 65' LED Smart 4K HDR TV L65UE18 Manual.indd 10 25/10/2018 09:40
