INSTALLATION
12
GB

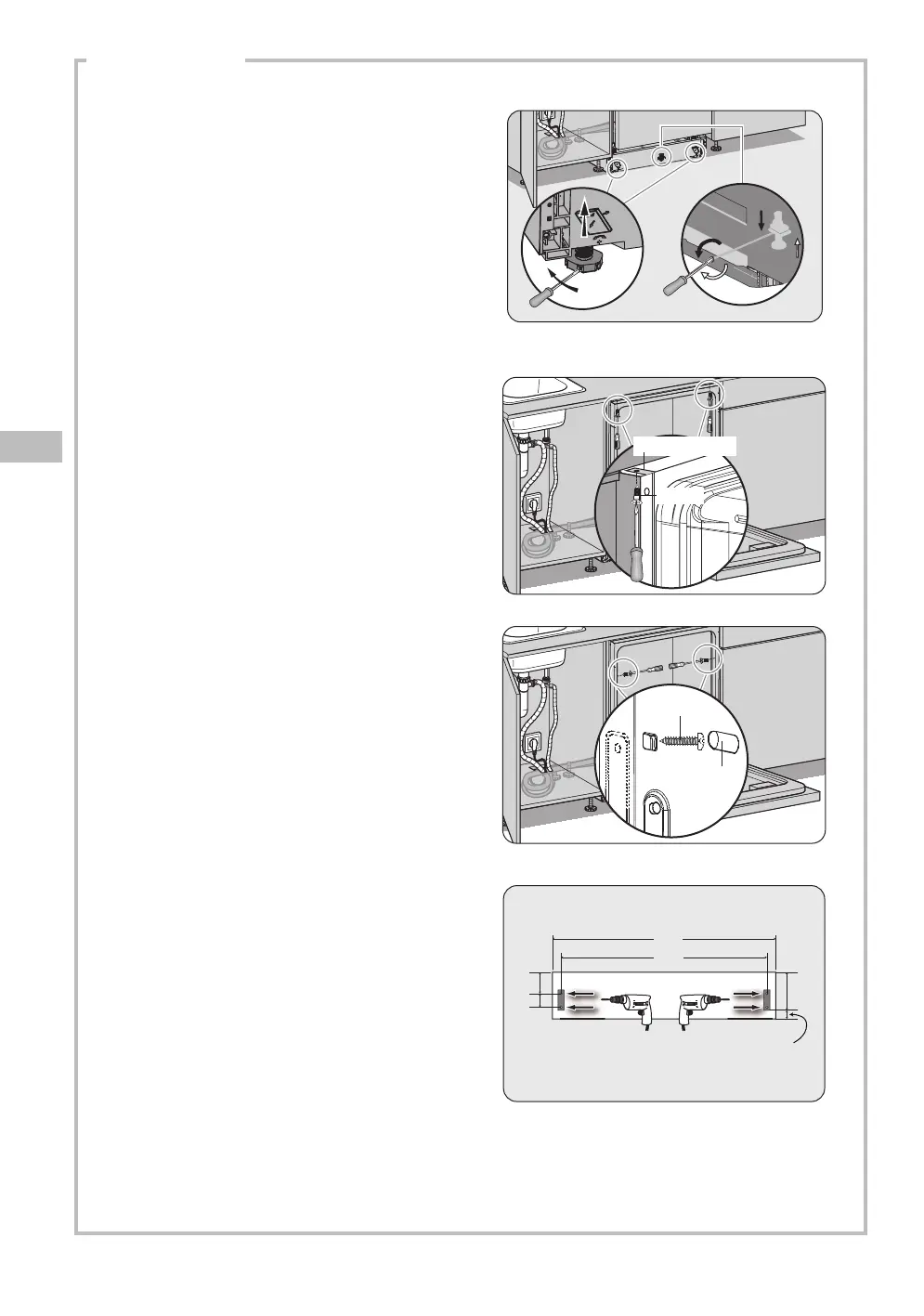

10. Adjust the adjustable feet again to obtain
the optimum levelling of the unit.
11. To secure the dishwasher under the table
top, tighten the screws as shown. Note
their positioning for the dierent types of
worktops.
597
544.4
36
20
84
12. For Marble / Granite Worktop Only
a. Bend the installation hook into a right-
angle.
b. Slot it into the side plane.
c. Secure with 2x screws
13. Use the supplied toe panel or create your
own toe panel. Cut out a 597 mm wide
plinth for toe panel. Tape the supplied toe
panel mounting brackets to the toe panel as
shown. Drill the required holes.
Wooden Worktop
Granite / Synthetic / Ceramic Worktop
ST3.5x16
Hole Cover
Installation Hook
ST4x14
