INSTALLATION
13
GB

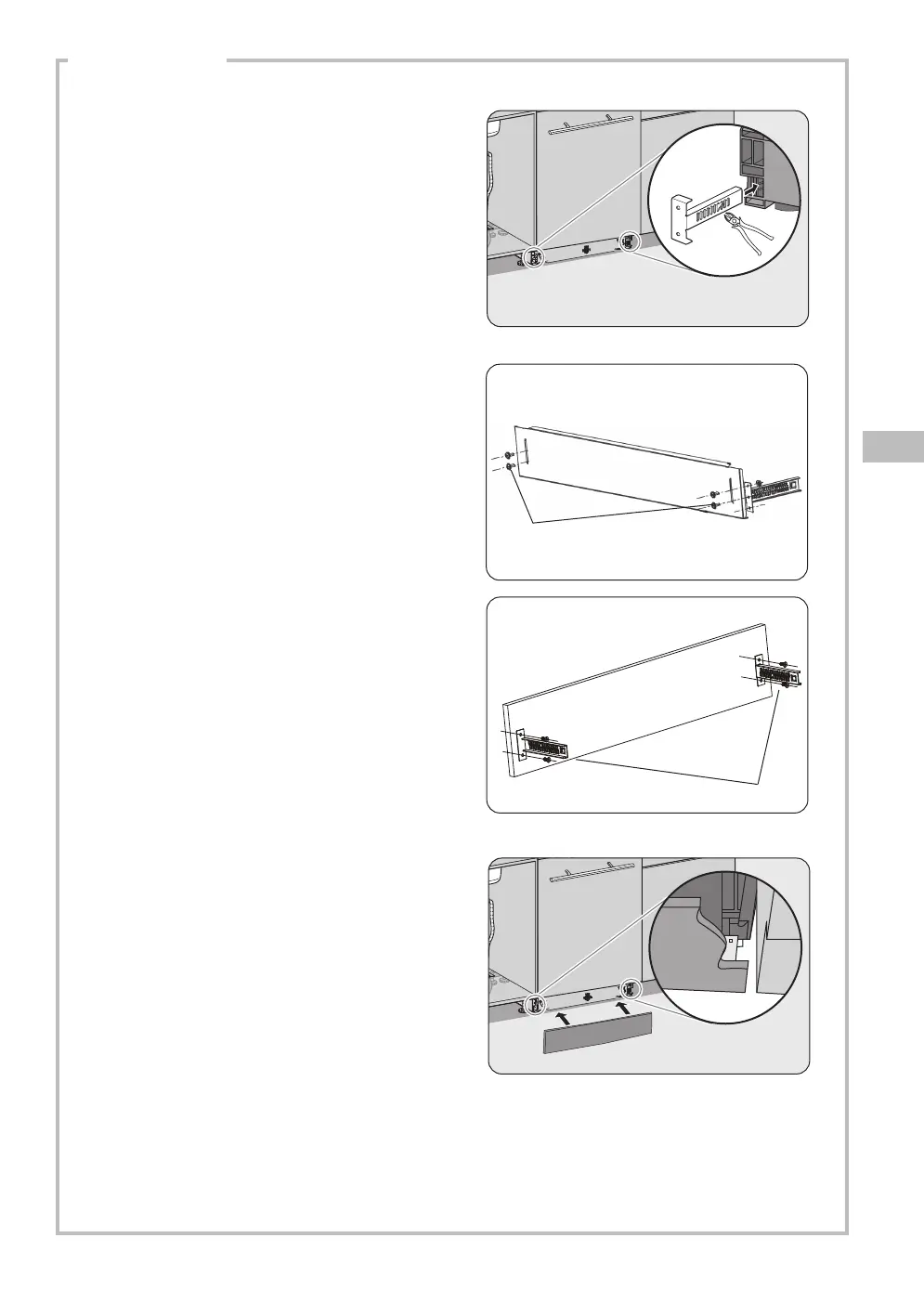

14. Determine the correct position for the
toe panel mounting bracket, remove
the bracket and bend the metal tab. This
ensures that the toe panel won’t slide in
further than you need.
15. Attach the toe panel mounting brackets to
the toe panel. Align the screw holes, then
secure the toe panel.
16. Attach the toe panel to the dishwasher.
Supplied toe panel
M4x10 screw
M4 nut
Created toe panel
ST4x14 screw
