Installation
Preparing the Worktop

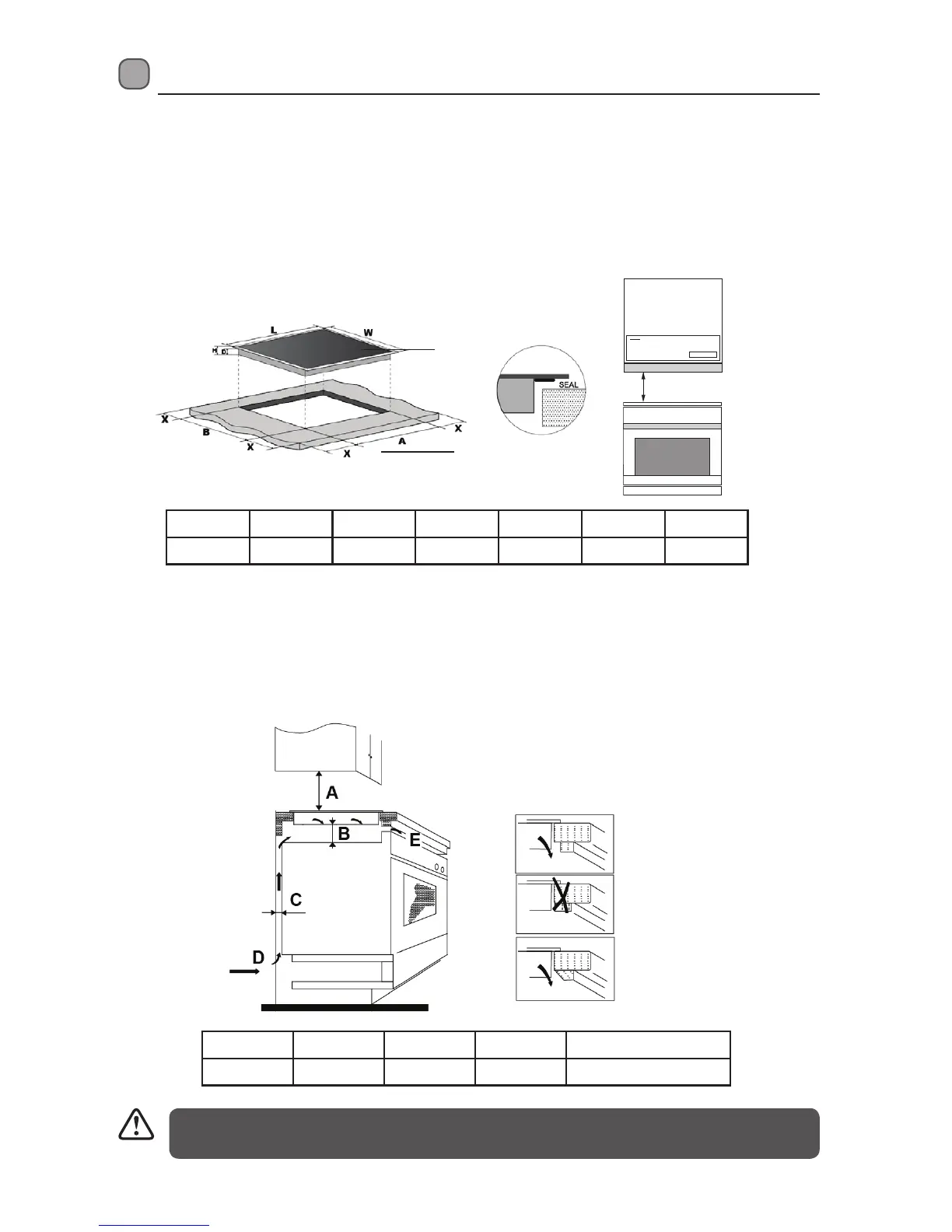

Cut out the work surface following the dimensions shown in the drawing below.
For the purpose of installation and use, a minimum distance of 5cm space must be left around
the cut out.
Be sure the thickness of the work surface is at least 30mm. Use a heat-resistant work surface
material to avoid deformation caused by the heat from the hob. The minimum distance
between the hob and the cupboard should be at least 760mm.
Ensuring Adequate Ventilation
Always make sure the ceramic cooker hob is well ventilated and that the air inlet and outlet are
not blocked. This hob requires an adequate supply of fresh, cool air to fully function. The base of
the hob must have direct unrestricted ventilation to the room where the hob is installed. Follow
the requirements below.
760 mm (min)
YOU MUST ensure that ventilation holes are not blocked by the worktop, when you put the hob
into position.
Hob
Worktop
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590 520 60 56 560+5 490+5 50 min
A (mm) B (mm) C (mm) D E
760 50 min 20 min Air intake Air exit 5 mm
