Logitek mixIT - Mixit-6

Logitek mixIT Audio Console System/JET67 Manual
6

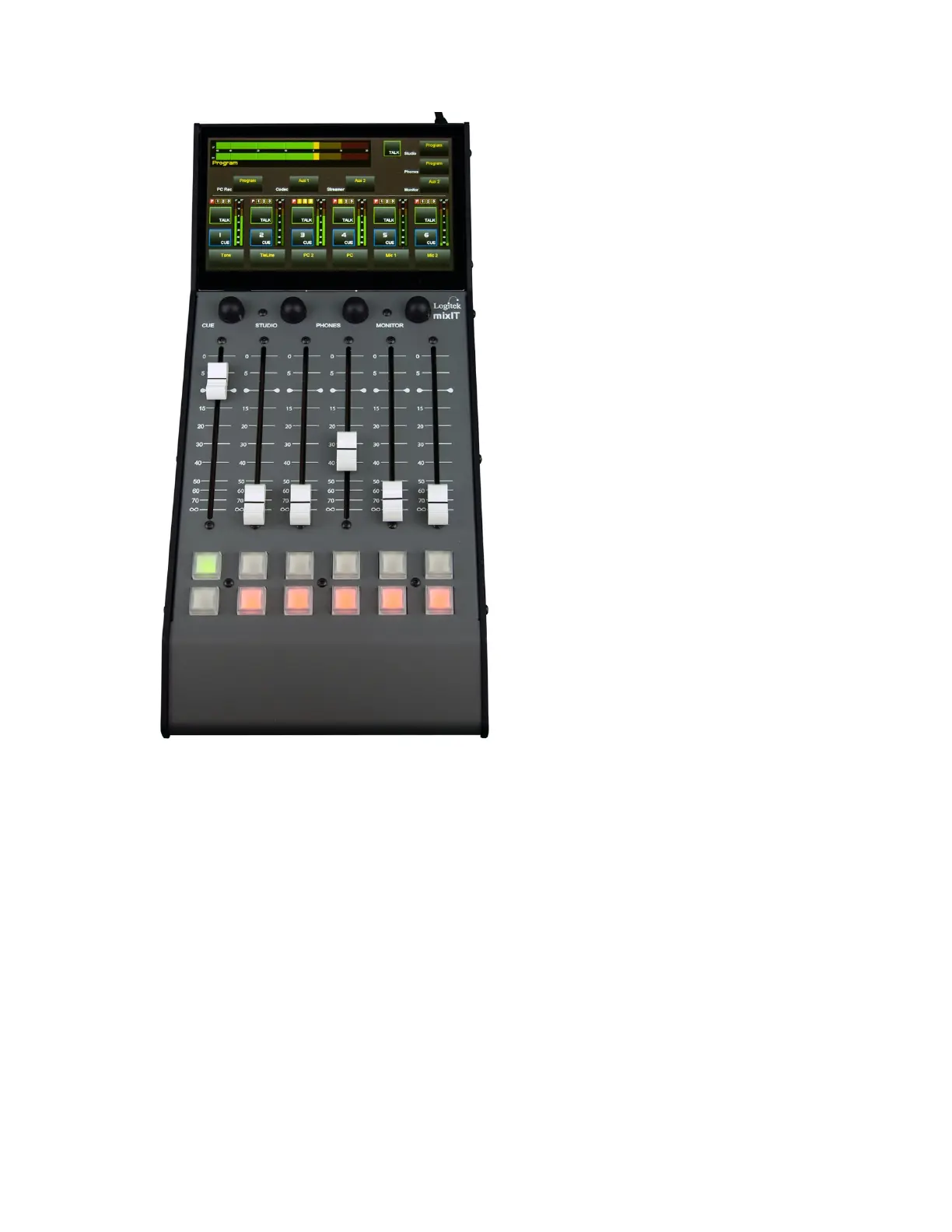

Figure 3 - The mixIT-6 Console
mixIT-6
The mixIT-6 console is a kit that contains the following:
MIXIT-C6 mixIT 6 Channel Surface
JET-67 JET67 Audio Engine with 1 J67-I/O cards installed
This system contains:
• 6 fader touchscreen controlled audio console
• 2 microphone inputs with phantom power
• 3 stereo analog inputs
• 2 digital inputs
• 4 stereo analog outputs
• 2 digital outputs
• 4 port Ethernet switch (2 x 1GB/2 x 10/100)
