Logosol Multifunctional Servo Drive LS-231SE
Doc # 712231004 / Rev. A, 05/05/2011
Logosol, Inc. • 1155 Tasman Drive • Sunnyvale, CA 94089 Tel: (408) 744-0974 • www.logosolinc.com
49

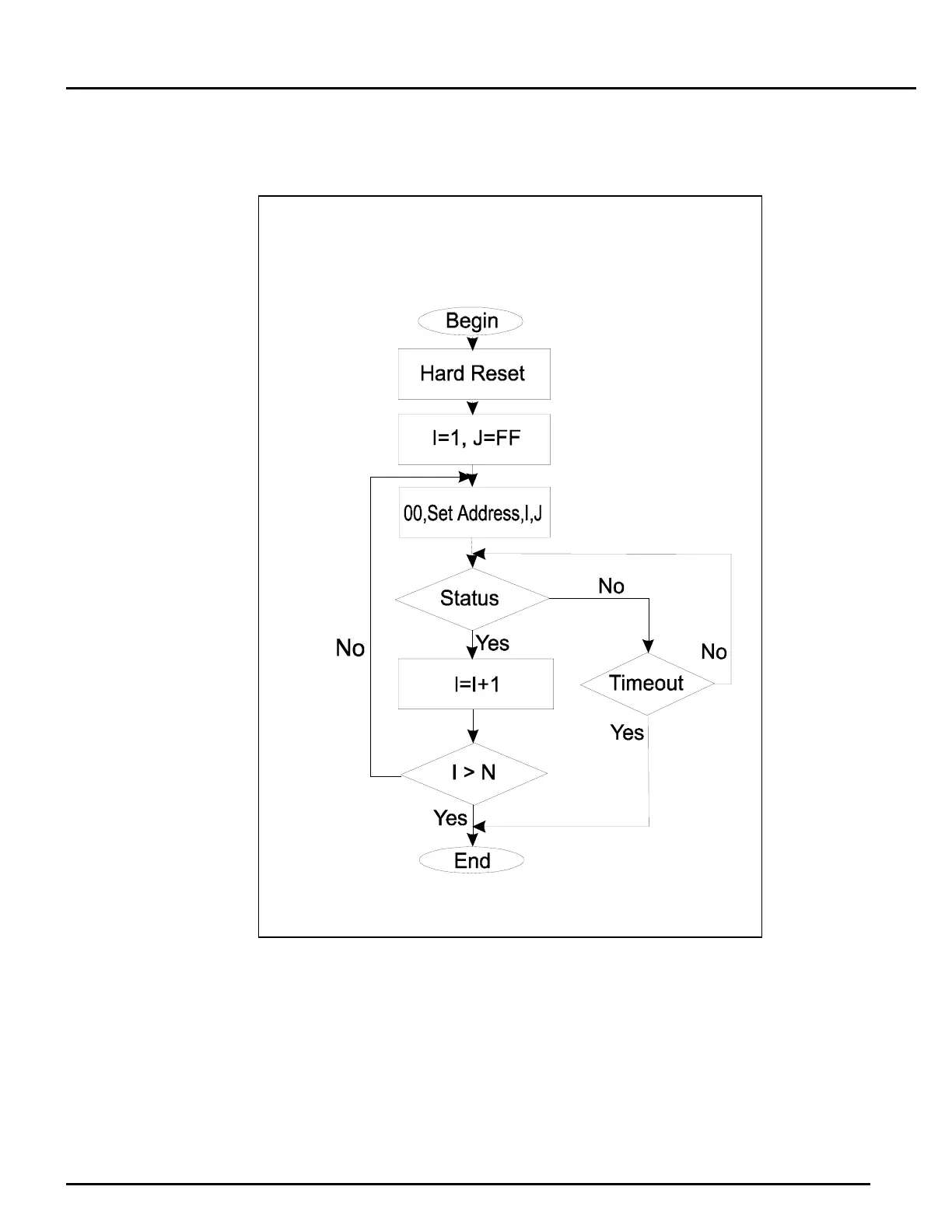

The flowchart shows the addressing procedure of N drives network. There is no group leader and
the group address is FF.
I - Individual Address; J - Group Address = FF;
Status - Status Data sent to the Host; Timeout - Greater than one servo cycle.
