36
MM
1 2 3 4 A B C
ABS
10.00
100.00
10.00
TOE BOARD
MM
REL
ABS
1 2 3 4 A B C
10.00
0.00
10.00
TOE BOARD
MM
0
0
0
INCH
INCH/MM

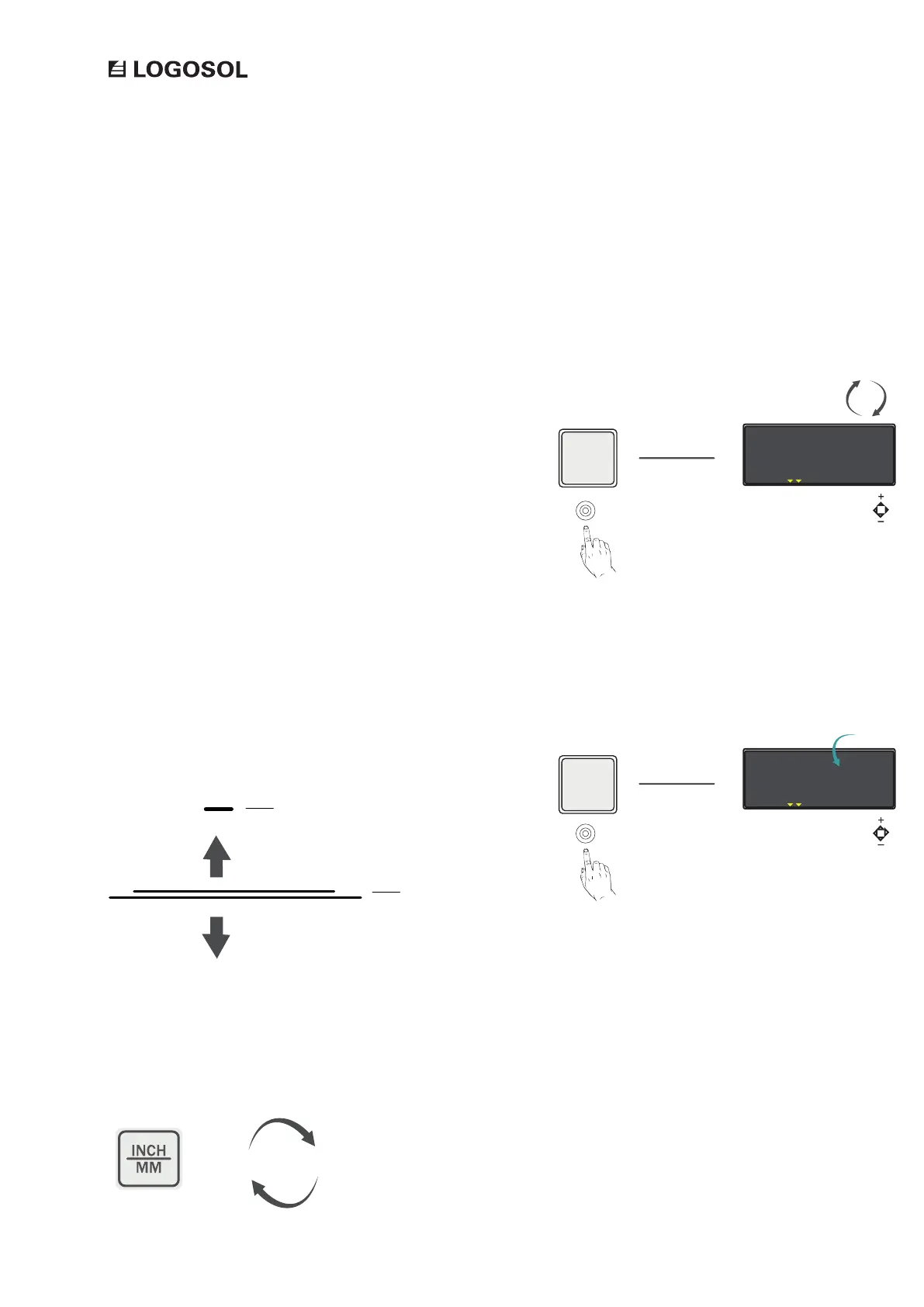

The display can show measurement units in inches or
millimetres. To choose measurement unit you press
down the key inch/mm.
If the saw blade position is raised
from the set zero point, the value
shown on the display is negative.
DIMENSIONING
The Smart Set interface initially shows the distance between
the log bed and the bottom of the sawblade. The selected
measurement is shown in the box called ABS on the display.
The Smart Set interface can display several different measurements
and units to make it easier for the user in different situations.
The interface is set in the starting position to show an absolute
measurement between the saw blade and the log bed in mm.
ABSOLUTE MEASUREMENTS
RELATIVE MEASUREMENTS
The 0 key creates a new zero point for the blade’s position. From
this zero point, a new relative measurement is shown for the
position of the blade. If the sawblade is raised from this selected
point, a negative value is shown, and if the sawblade is lowered a
positive value is shown. On the display, the selected value is shown
with the symbol 0. In this mode, the kerf is compensated manually.
FUNCTIONS
