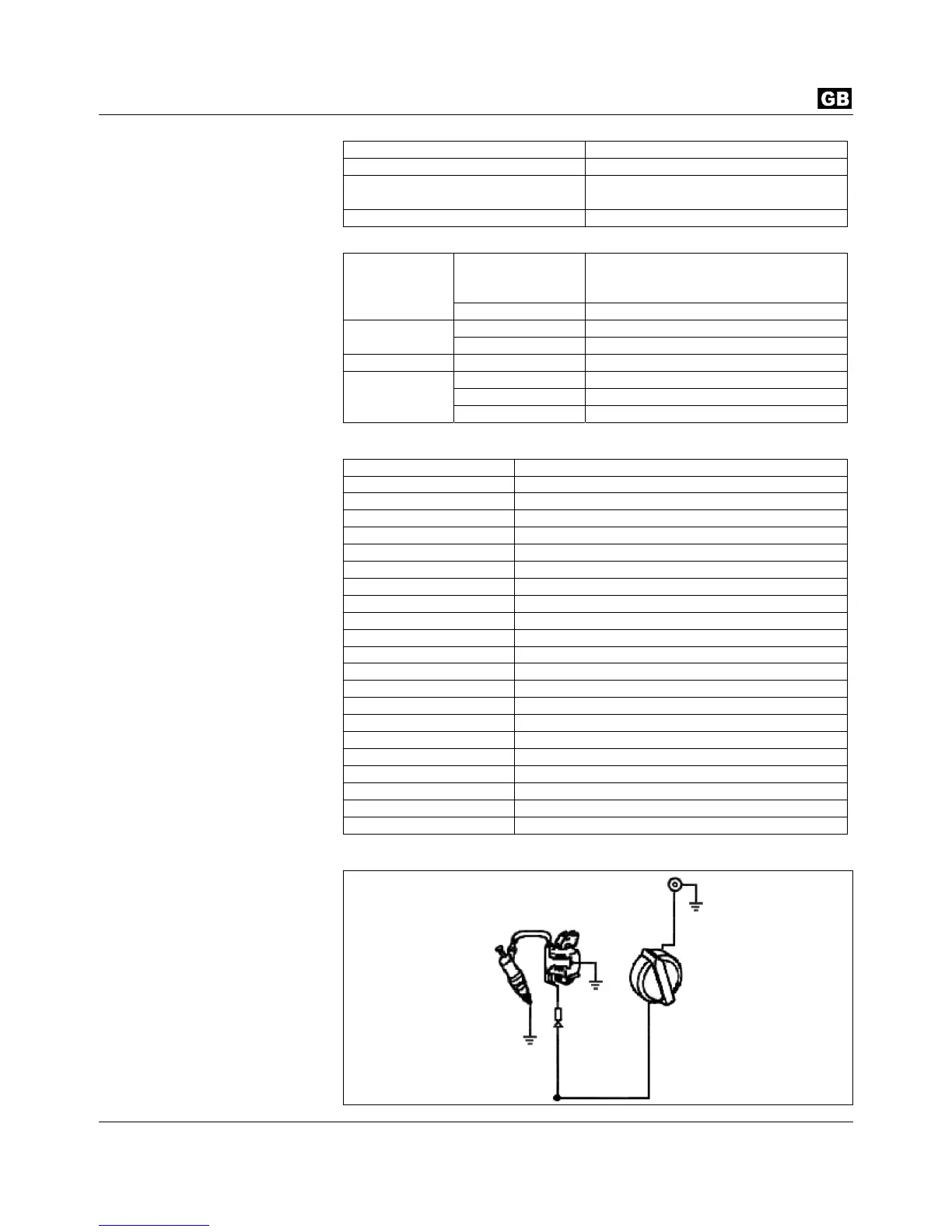

LONCIN LC170F User Manual

TECHNICAL INFORMATION / TECHNICAL DATA / WIRING DIAGRAM
30
Adjusting the engine Object Technical specifications
Spark plug gap 0.7 – 0.8 mm
Valve play
Intake: 0.15 ± 0.02 mm (cold)
Exhaust: 0.2 ± 0.02 mm (cold)
Other information No other adjustments are required
QUICK INFORMATION
Engine oil
Type
SAE 10W-30
API SE or better, for general use
See engine oil recommendation
Oil capacity 0.6 l
Spark plug Type F7RTC or equivalent
Gap 0.7 – 0.8 mm
Carburettor Idling 1400 ±150 rpm
Maintenance Each use Check engine oil; check air filter
First 20 hours Change engine oil
After this See “Maintenance”
11. TECHNICAL
SPECIFICATIONS
Model LC170F
Type One-cylinder, 4-stroke, force ventilation, OHV
Rated output (kW/3600 rpm) 4.0
Max. torque (Nm/rpm) 13/3000
Fuel consumption (g/kWh) ≤395
Idling 1400 ±150 rpm
Speed variations % ≤ 10%
Noise (≤) 70 db(A)
Bore x stroke (mm) 70×55
Displacement (cm³) 212
Kompression 8,5:1
Lubrication Splash
Starting Starting with cranking rope
Rotation Counterclockwise (from P.T.O. side)
Valve play Intake valve: 0.10 – 0.15 mm, exhaust valve: 0.15 – 0.20 mm
Spark plug gap 0.7 – 0.8 mm
Ignition Transistorised magneto ignition
Air cleaner Semi-dry, oil bath, foam filter
Dimensions (length) (mm) 330
Dimensions (with) (mm) 375
Dimensions (height) (mm) 336
Net weight (kg) 16(19)
12. WIRING DIAGRAM
ELECTRONIC
IGNITION
SPARK PLUG IGNITION SWITCH
yellow
blue
