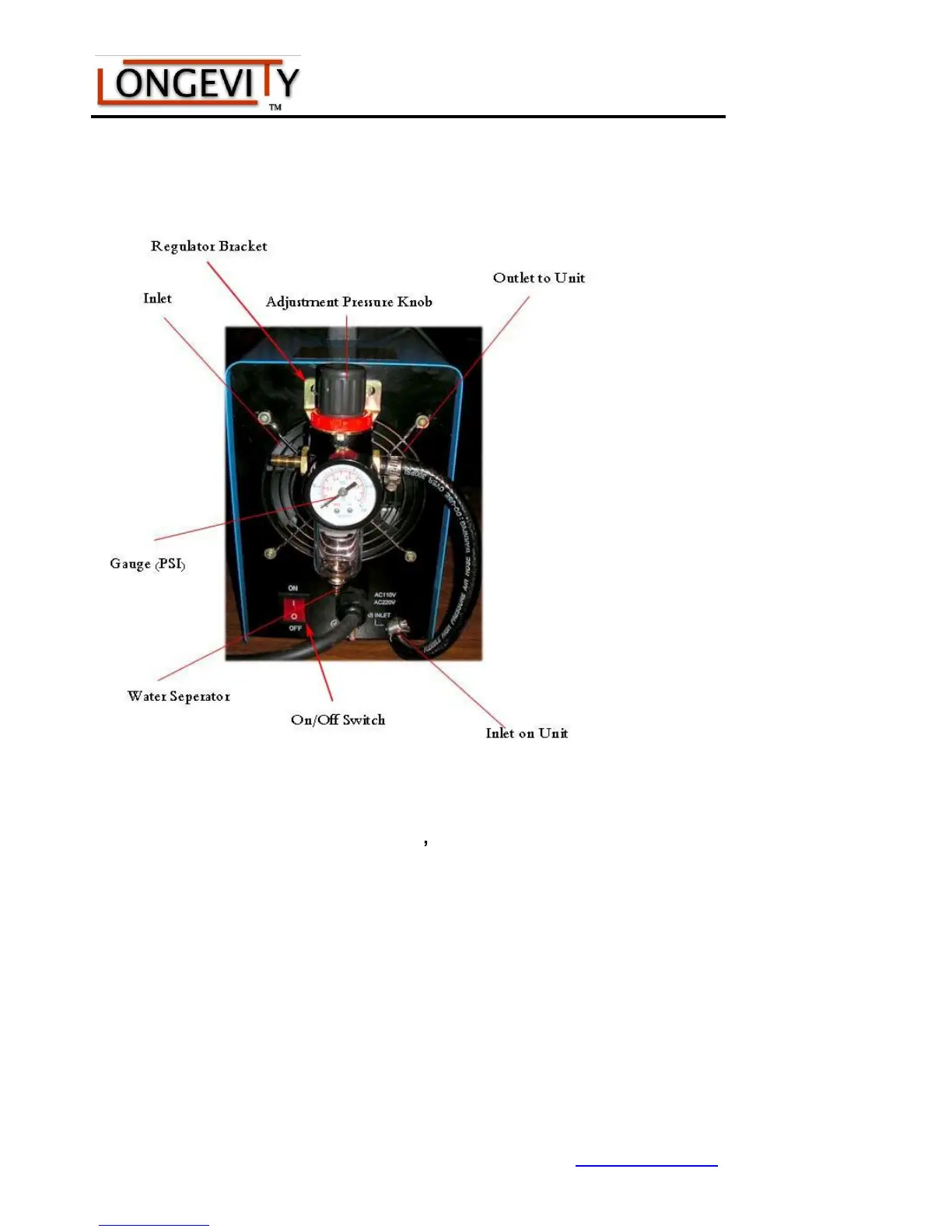

Air Regulator Assembly to Unit (Pictured
ForceCut™ 40D Plasma Cutter):
LONGEVITY® includes an air regulator/filter with your machine. You must attach
the bracket to the machine, and fasten the regulator to the bracket so it looks as
pictured
1. Locate the INLET and OUTLET labeled on the regulator picture above and
attach the Air Compressor to the inlet and the OUTLET to the INLET on
Unit with the provided hose to back of the machine, where shown, and secure
it with a hose tie.
2. Set the air compressor to about 60-75 PSI depending on the thickness of your
cut. If you are getting a poor cut quality, try adjusting the PSI on the regulator
to see if the cut quality improves.
3. Periodically, after long periods of use, you must remove water from the air by
pushing the water release button inward to release water from the water
separator section of the regulator.
