Assembly of Plasma Torches:
The plasma cutter torch handle is made of fire and heat resistant materials. Avoid
dropping the torch or striking anything with it. For convenience and ease of use, the
torch’s ON/OFF switch can be positioned on the top, the side, or the bottom of the
torch body.
Assembly of Consumables for the LP-40D/50D

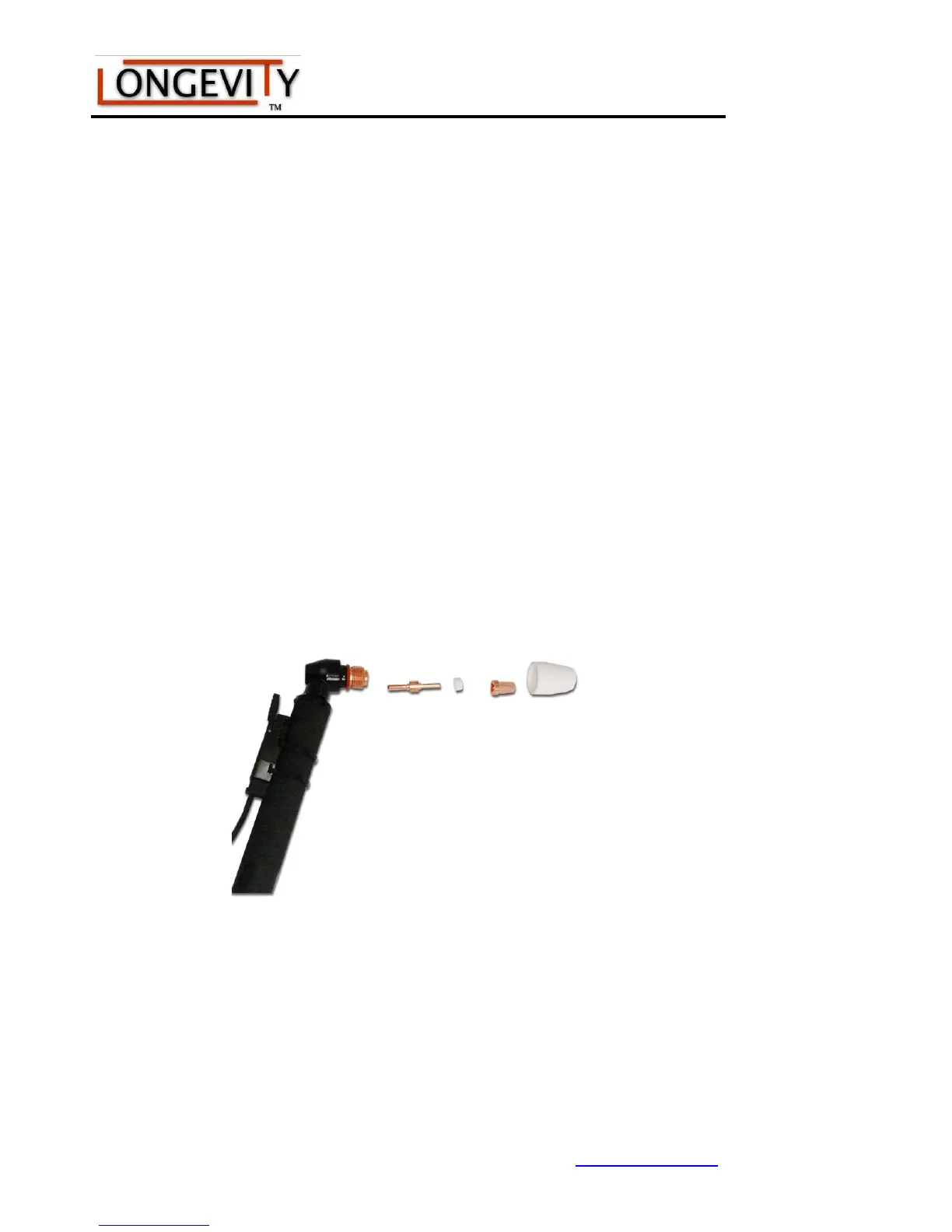

Assemble the consumables as pictured above, and described below.
1. Insert the electrode.
2. Seat the ring on the electrode.
3. Place the copper tip on the ring, ensuring that is seated flat.
4. Secure all parts into place by turning the ceramic cup clockwise until it is
snug. Do not over tighten.
The torch consumables are now successfully assembled.
