Plasma Cutters www.LWELD.com
www.longevity-inc.com 17

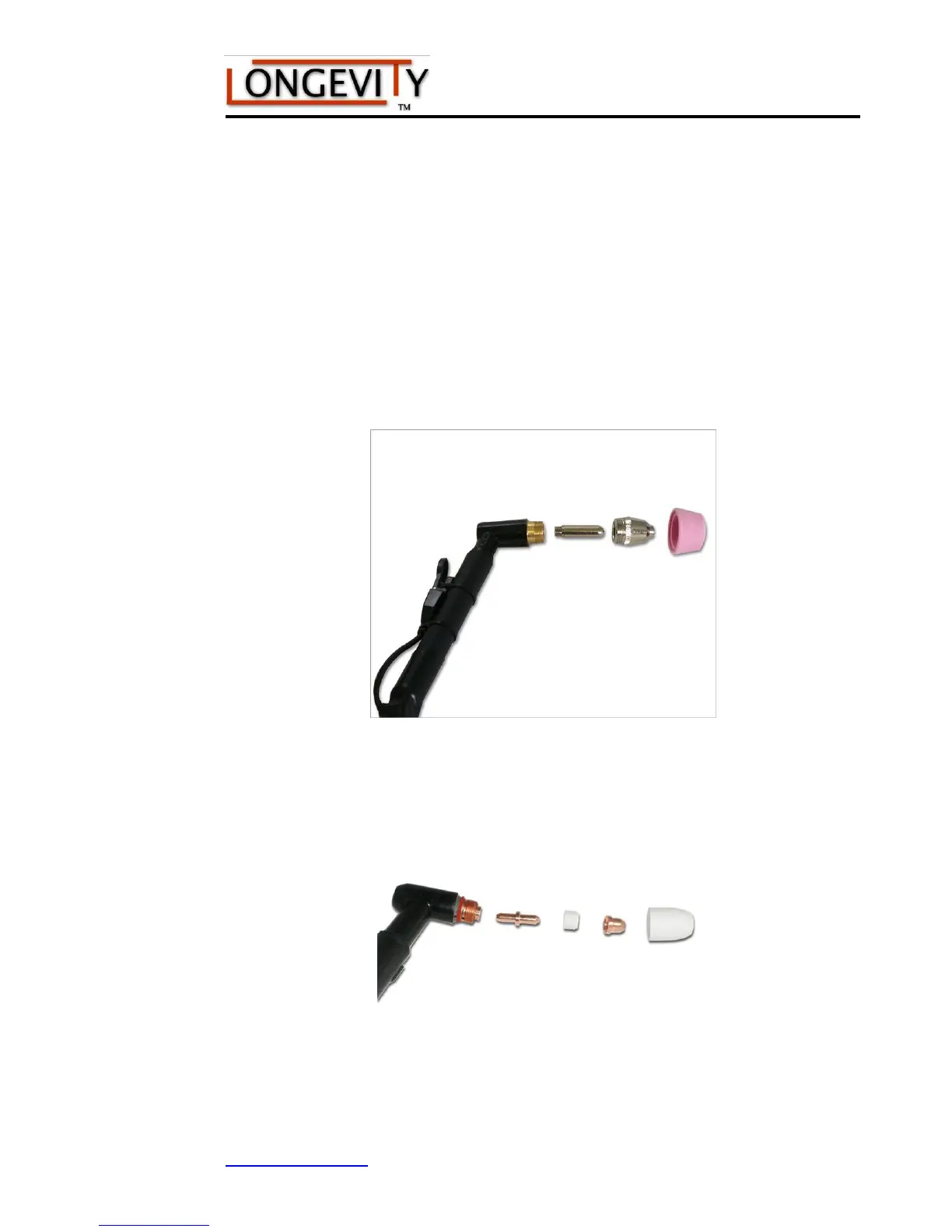

Assembly of Consumables for the LP-60D
Assemble the consumables as pictured above, and described below.
1. Insert the electrode.
2. Place the copper tip on the ring, ensuring that is seated flat.
3. Secure all parts into place by turning the pink ceramic cup clockwise until it
is snug. Do not over tighten.
The torch consumables are now successfully assembled.
Assembly of 70/80 AMP Torch for the LP-70/80
