This assembly is similar to the cutters described above, except it does use a swirl
ring.
1. Insert the electrode, and tighten with until snug.
2. Insert the swirl ring on top of the electrode.
3. Place the copper tip on the electrode/swirl ring, ensuring that is seated flat,
and tighten with wrench until snug.
4. Secure all parts into place by turning the ceramic cup clockwise until it is
snug. Do not over tighten.
The torch consumables are now successfully assembled.

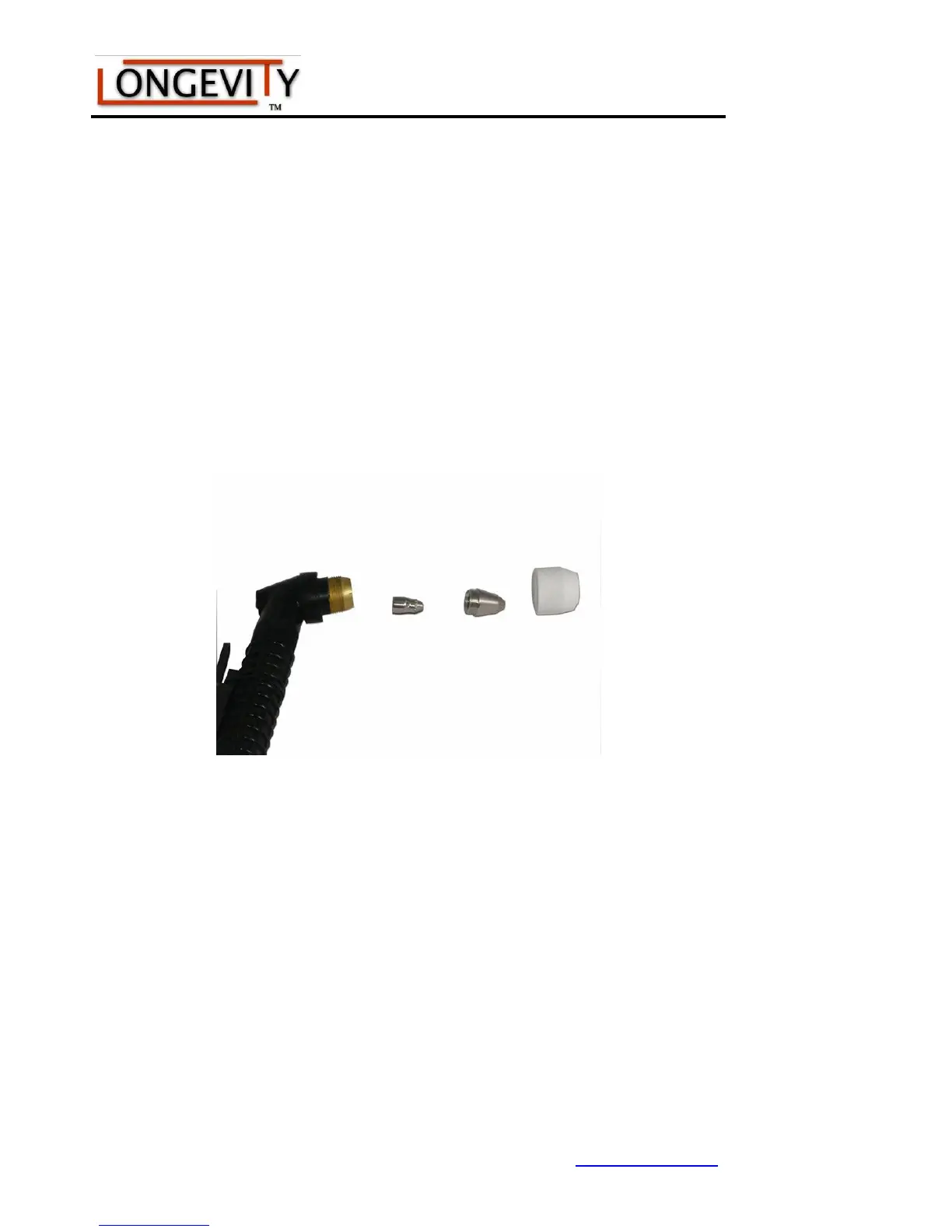

Assembly of 100 AMP Torch for LP-100:
Assemble the consumables as pictured above, and described below.
1. Insert the electrode.
2. Place the copper tip on the ring, ensuring that is seated flat.
3. Secure all parts into place by turning the pink ceramic cup clockwise until it
is snug. Do not over tighten.
The torch consumables are now successfully assembled.
