5

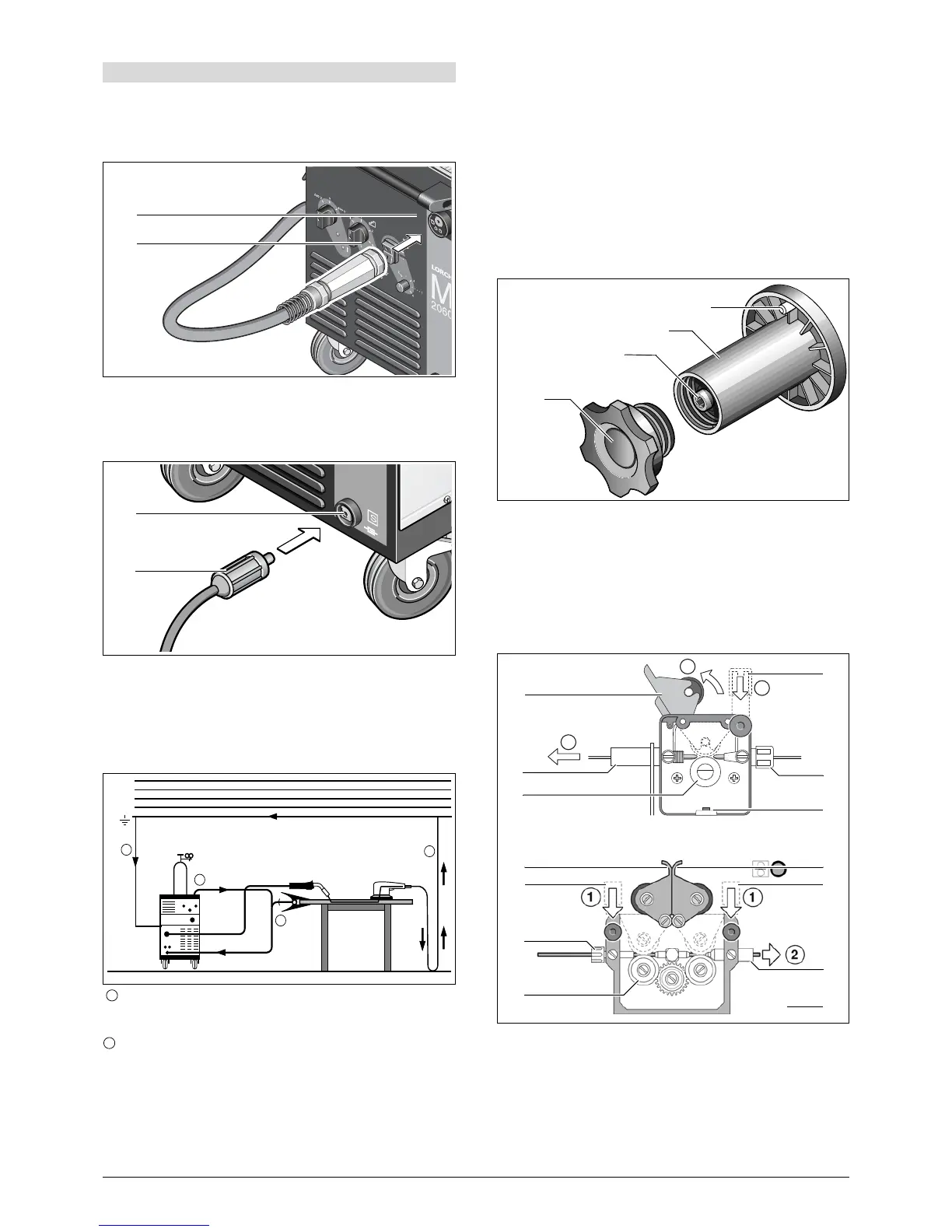

Torch Connection
Plug in the centralplug 11 of the torch 3 into the central socket
10.
How to connect the ground cable
Connect the ground cable 13 at the groundconnection 12 and
fasten it turning to right and connect the ground clamp 9 to the
workpiece or at the welding table.
How to connect the ground clamp
Fasten the ground clamp 9 near the welding location, this
avoids that the current will flow trough machineparts or con
-
trols.
Please keep attention that the connections between ground
clamp and workpiece is constant.
Do not place the ground clamp on the welding machine or
gas cylinder, otherwise welding current is conducted via
the protective conductors and will destroy them.
Connect the ground clamp tightly to the welding bench or
to the workpiece.
How to connect at the mains.
Plug in the plug into the mains socket. The fusing should be
corresponding to the technical data.
How to insert the wirespool
Open the lid at the machine and screw off the nut 17 from the
wire-coil pick-up 15.
Put on the wire coil at the wire-coil pick-up and pay attention
that the tappet is well insert at the coil 14.
By use of small wire coils please use the adapter (art.no.
620.9650.0).
Adjust the brake 16 by releasing the torch button the wire coil
do not continue to turn.
Insert of the wire electrode
Screw out the contact tip at the torch 3.
Open the lid at the machine.
The diameter of the wire should correspond to the diameter of
the feeding rolls. This is readable on the front at the built in
feeding roll 19.
Lift the lever 20 and thread in the wire electrode trough the in-
let nozzle 21 and the central connection 10.
Close the lever 18 and fasten it with the sweep levers 20.
8 Before operation
