page 29
Pc-board DK-UFI
The pc-board DK-UFI is for wiring the welding sockets.
Functions
- wiring welding sockets
- providing output voltage
Measuring points
designation measuring point result
secondary output voltage
in MMA (stick electrode) mode
X2
x3
+
GND
ca. 58V DC
X6
X7
+
GND
ca. 58V DC
X1/1
X1/2
+
GND
ca. 58V DC

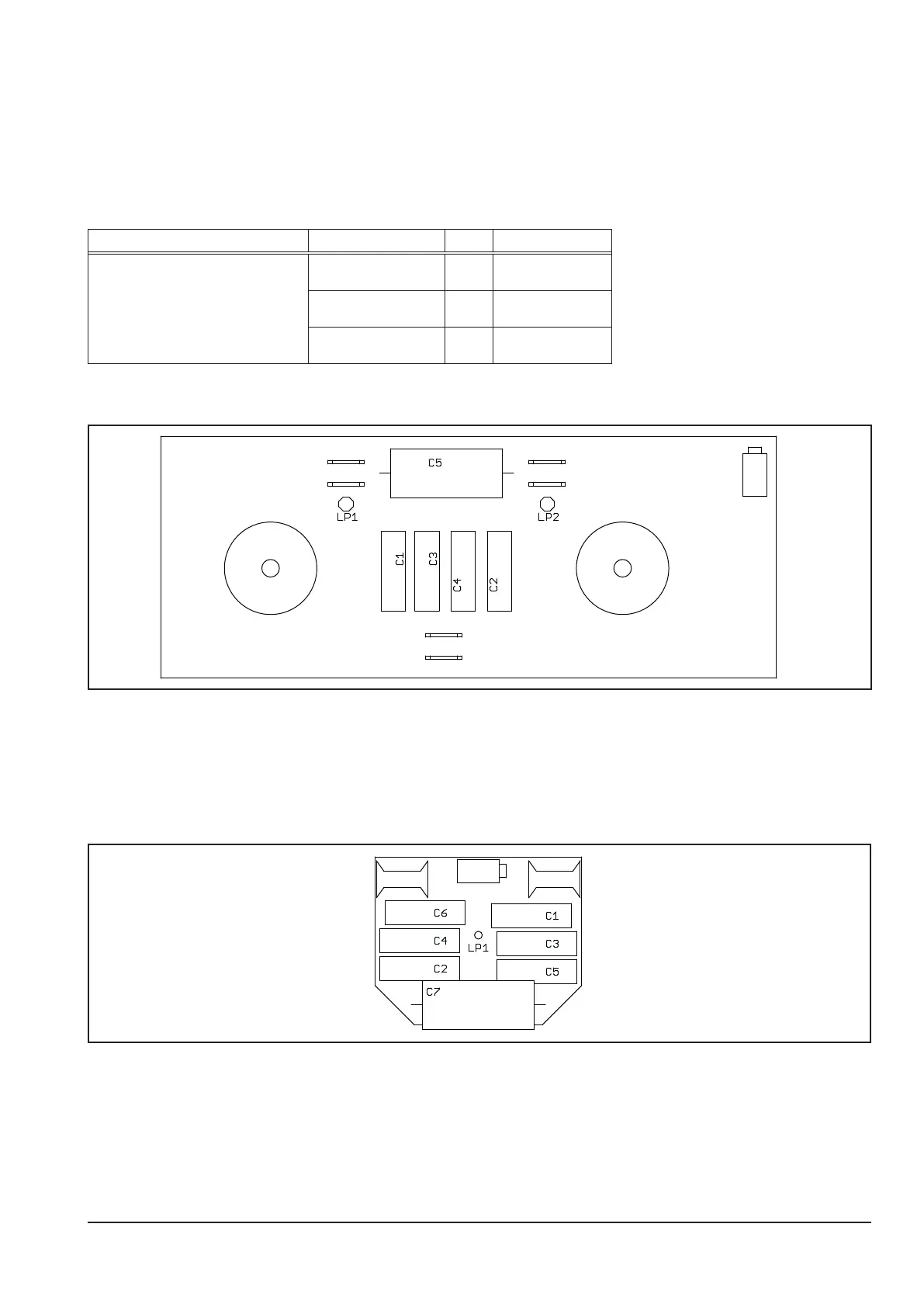

Picture pc-board DK-UFI
X1
X2
X3
X7
X6
X5
X4
Pc-board DK-EMV
The pc-board DK-UFI was replaced by the pc-board DK-EMV.
Since serial no. xxx-1602-001 from the 9th Jan. 2006, the pc-board DK-EMV is used:
Picture pc-board DK-EMV
X1
X2
X3
