Troubleshooting guide for LORENTZ ECDRIVE submersible
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.
Pictures may differ from actual products depending on local market requirements and regulations.
2.2.2 Check the isolation of the motor
It is important to use an isolation test device to measure the motor phases. This device can measure
the resistance at a high voltage level.

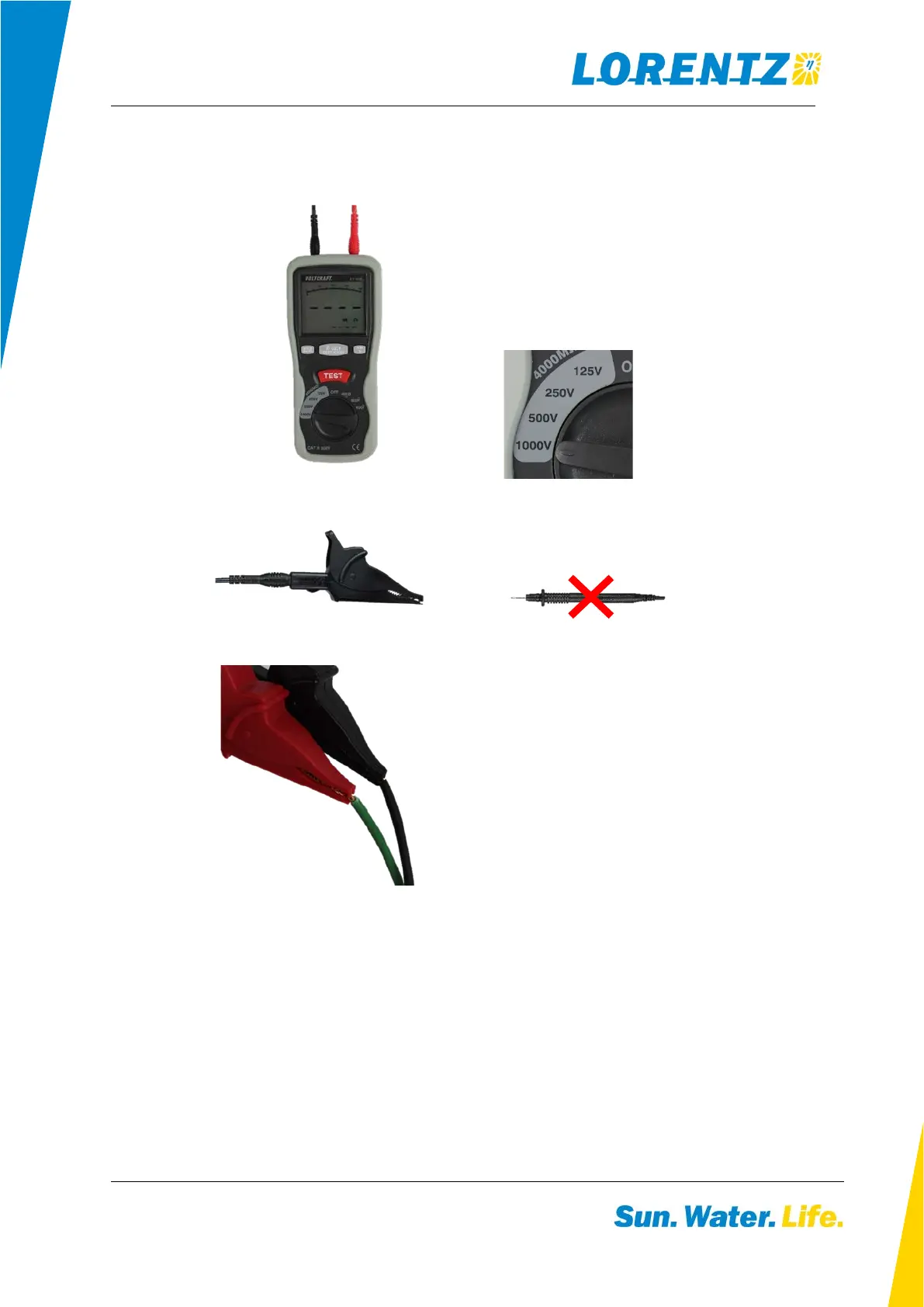

• Configure your isolation measuring
device:
o Choose isolation –
measurement at 1000 V
o Insert the measuring tips into
the provided sockets (black to
COM and red to Ω)
• The measurement is easier and safer by
using crocodile clips
• Connect the measuring clips to the
motor phases (3 different steps – L1 to
GND, L2 to GND and L3 to GND)
The value should not be below 0,5 MΩ.
