How do I connect DIN cameras to the system?
13
What is PIP and how do I use it?
PIP means “Picture In Picture”.
VGA/Component Mode/Picture Frame: When using the PIP function, the DVR screen is
displayed in the PIP Video Display
DVR Mode: When using the PIP function, the VGA or Component screen is displayed in the
PIP window (referred to as Reverse PIP).
This function could be used to watch a Movie while still monitoring the Live Video display.
1. PIP (VGA, Component, or Picture Frame):

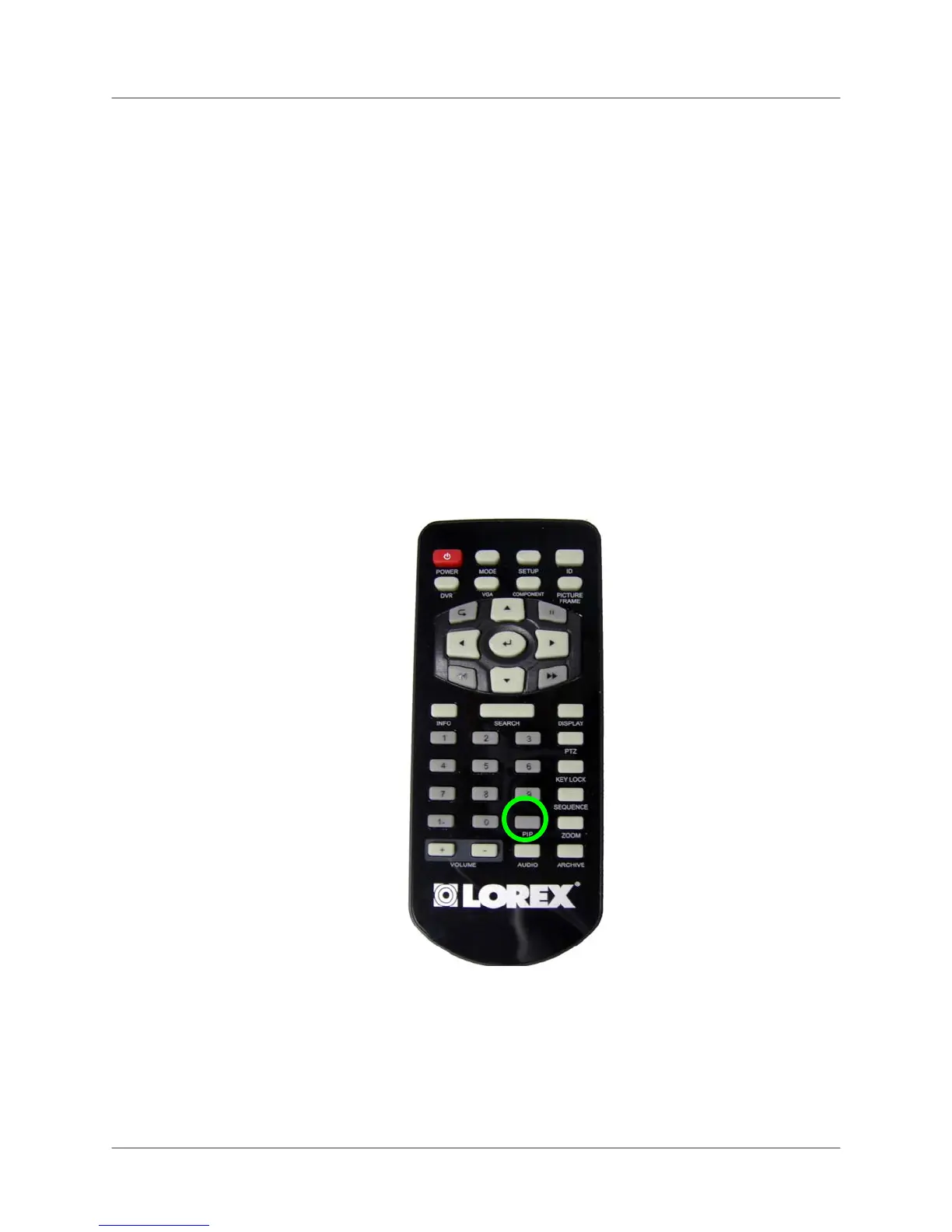

Remote Control (only):
• Click the PIP button once to display the DVR in the PIP window
• Click PIP again to close the PIP window
