How do I connect DIN cameras to the system?
7
How do you connect BNC cameras to the system?

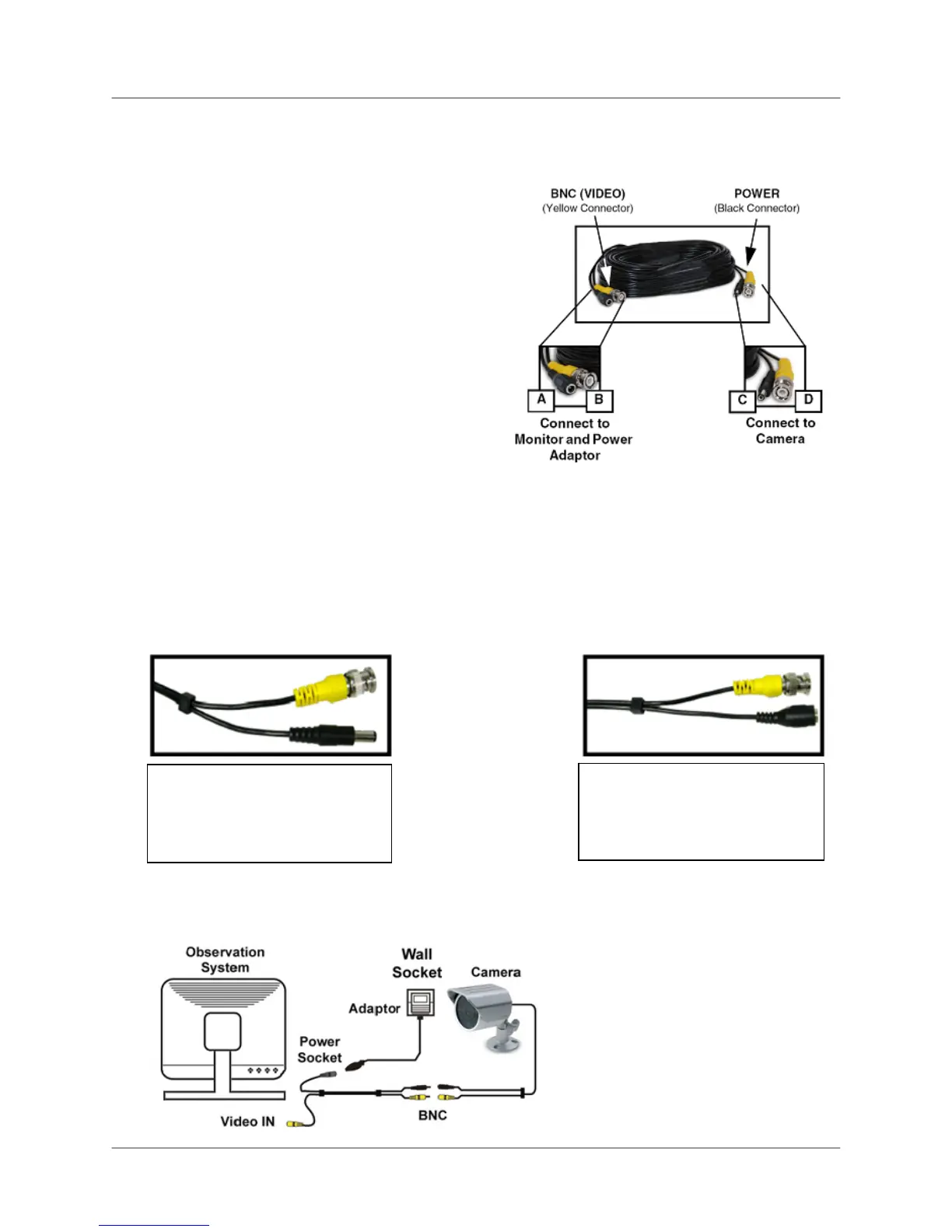

1. Connect the Extension cable to the Camera
and System:
A. Connect the Barrel Power connector to
a power adaptor.
B. Connect the BNC connector to an
available BNC Port of the System.
C. Connect the Male Power connector to
the Camera.
D. Connect the BNC connector to the
Camera.
2. Connect the Power Adaptor to a wall outlet.
IMPORTANT NOTE: The ends of the extension cable are NOT the same - one end has a
Male power port, and the other has a Female power port. Before permanently running the
Camera Extension Cable, make sure that the cable has been oriented between the Camera
and the unit correctly.
Camera Connection Diagram
Male Power Port - The male
power port end of the
Extension cable connects to
the Camera.
Female Power Port - The
female power port end of the
Extension cable connects to
the Power Adaptor.
