Transducer installation | Installation Manual
Forward:
Use for seeing sh and structure directly in front of the transducer.
Know the depth of the sh and structure to target your next cast.
Scout:
Use to scan large areas for sh and structure. Search for schooling
sh and know the direction of your next cast.
Attach the bracket arm to the shaft front collar
Install the bracket arm in the desired position to the shaft collar.
When installed, the arm can be used as a handle to align the shaft
clamp with the centerline of the trolling motor.

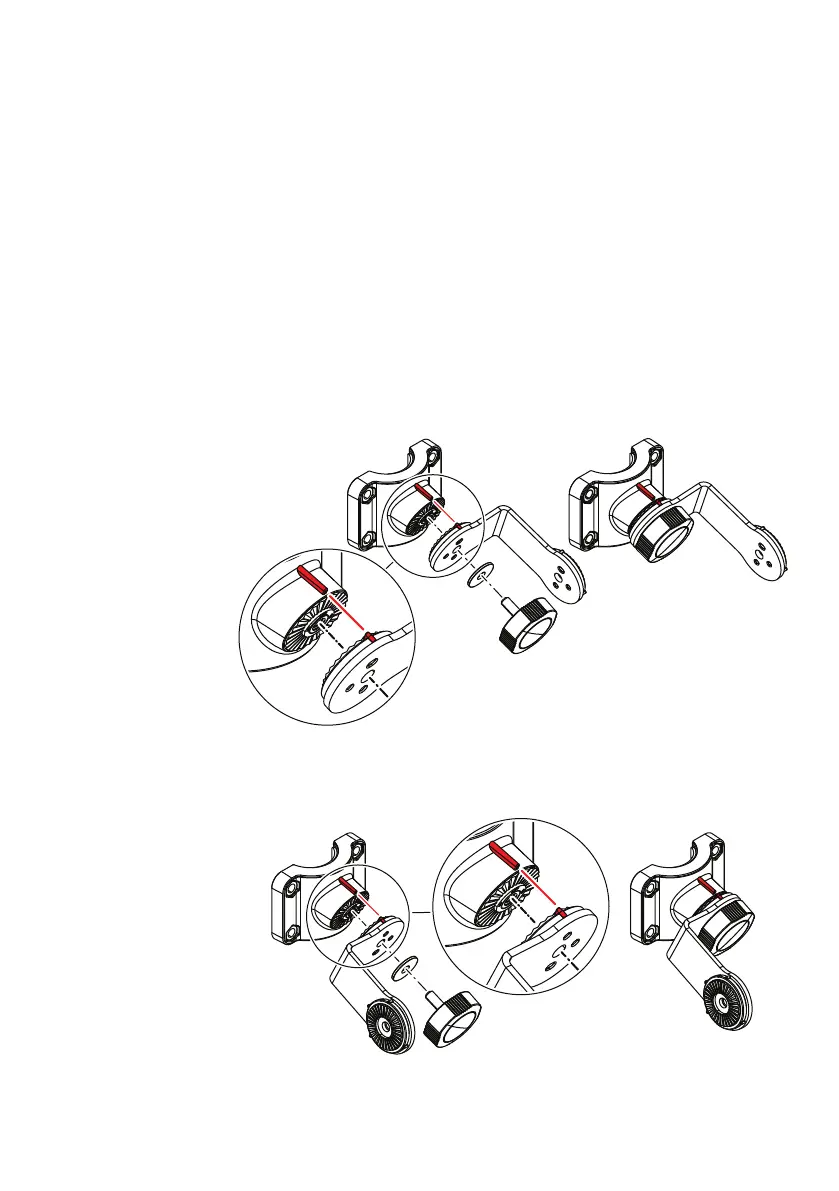

Port side - Down/Forward orientation
Starboard side - Down/Forward orientation
