Transducer installation
This chapter describes how to install the transducer.
The transducer can be mounted either to the shaft or to the motor
of the trolling motor.
Shaft mounting
The transducer can be oriented in three dierent ways; down
looking, forward looking, or in scout position.

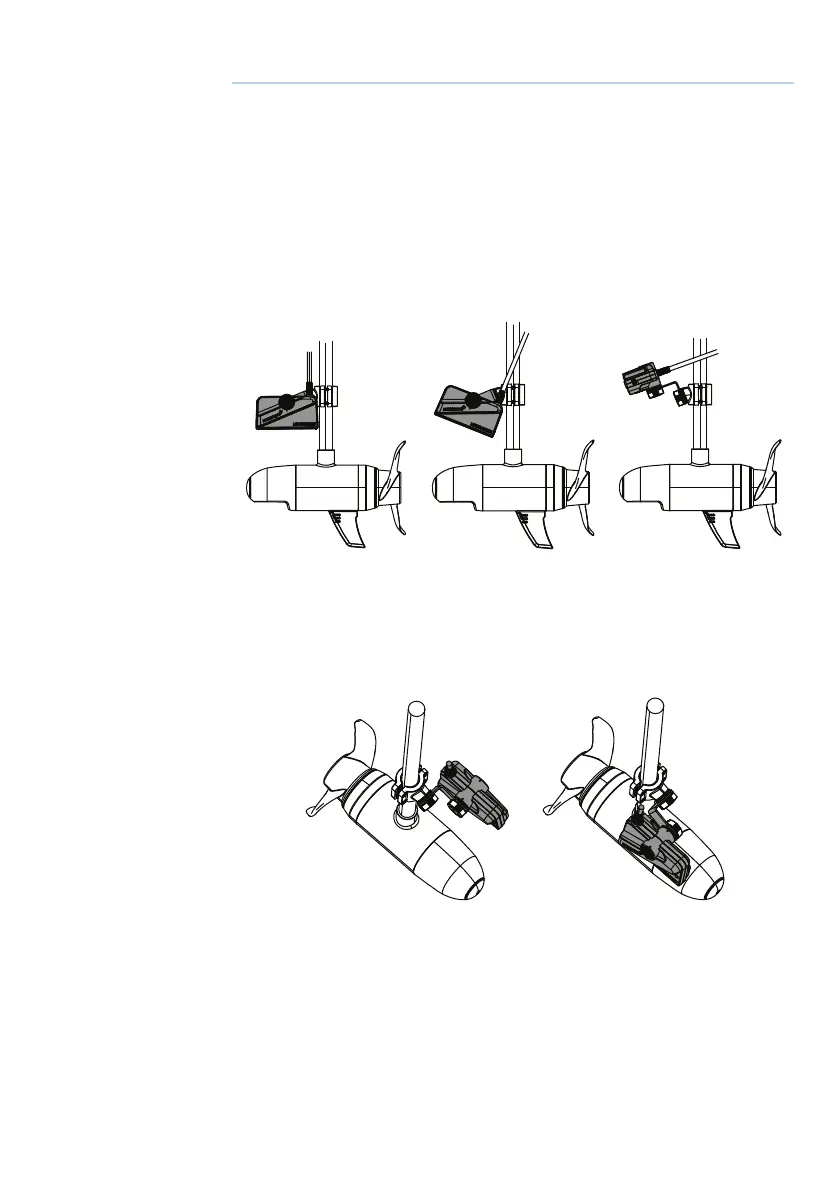

Down Forward Scout
The transducer can be mounted on the port or starboard side of
the shaft.
Port side Starboard side
Down:
Use for vertical shing to see what is below the transducer. Watch
your lure and sh movements in real time.
