Wiring | Installation Manual
+
_

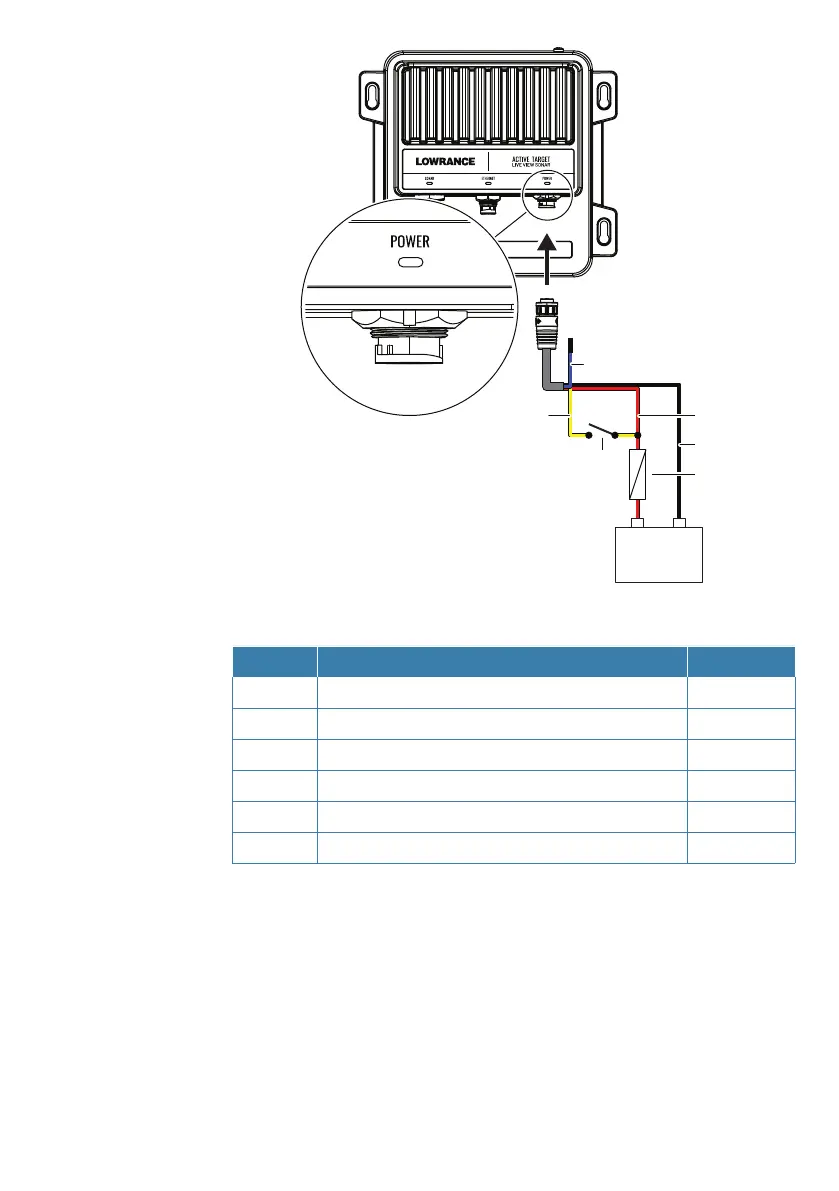

12/24 V DC
B
E
F
C
D
A
Key Description Color
A Not used Blue
B Accessory wake up Yellow
C + 12 V DC Red
D DC Negative Black
E Fuse
F Switch
Power controlled by power bus/display unit
The unit will turn ON/OFF when power is applied/removed. By
connecting the yellow wire to a display unit’s yellow wire, the sonar
module will turn on the moment the display unit is powered up.
