79
2. The Water Speed window title bar flashes, indicating the window
contents can be changed. Press
ENT
| or to select data
type|
ENT
|
EXIT
.

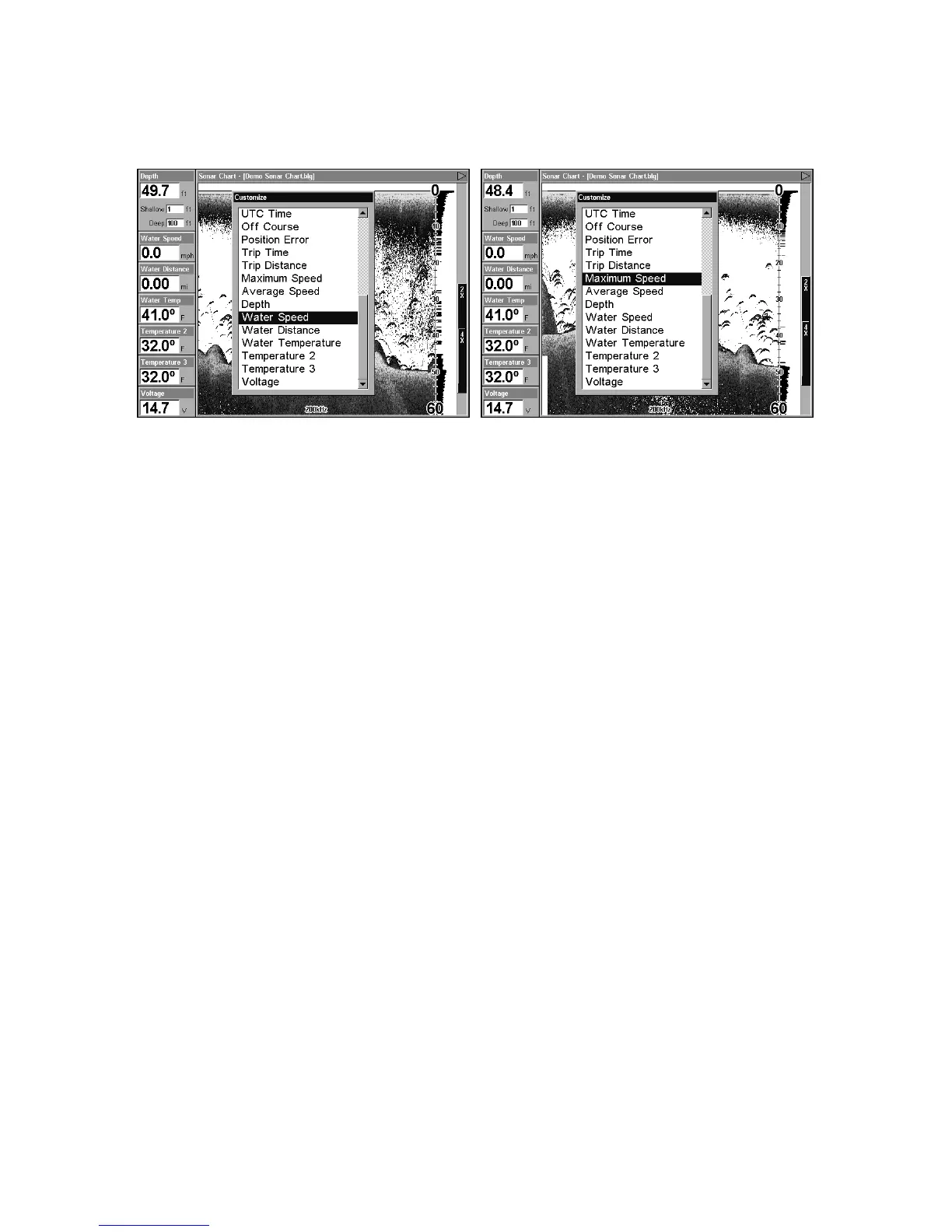

Options List for customizing Digital Data windows. At left, the list first
appears with Water Speed selected. At right, Maximum Speed has been
picked to replace Water Speed in the top digital data window.
Tip:
You can customize other digital data windows before returning to
the Sonar Page. After changing the first window by selecting the
Data Type and pressing Enter, use the key to select another win-
dow to change. When the selected window title bar flashes, press
ENT
| or to select data type|
ENT
. Repeat these steps until you're
finished customizing, then press
EXIT
to return to the Sonar Page.
FlashGraf
The FlashGraf sonar page option represents a flasher style sonar com-
bined with a scrolling chart. A circular dial shows all returning echoes
at a high screen refresh rate.
It uses the Colorline feature to show weaker targets as lighter colors.
The bottom depth is also shown as a black bar across the outer circle.
You can adjust the size of the chart and the flasher windows by using
the Resize Window command, which is described on page 102.
