LPKF S62 - Page 9

How-To Document
Updated on:
11/13/2008
By:Christopher Ware
Page 9 of 13

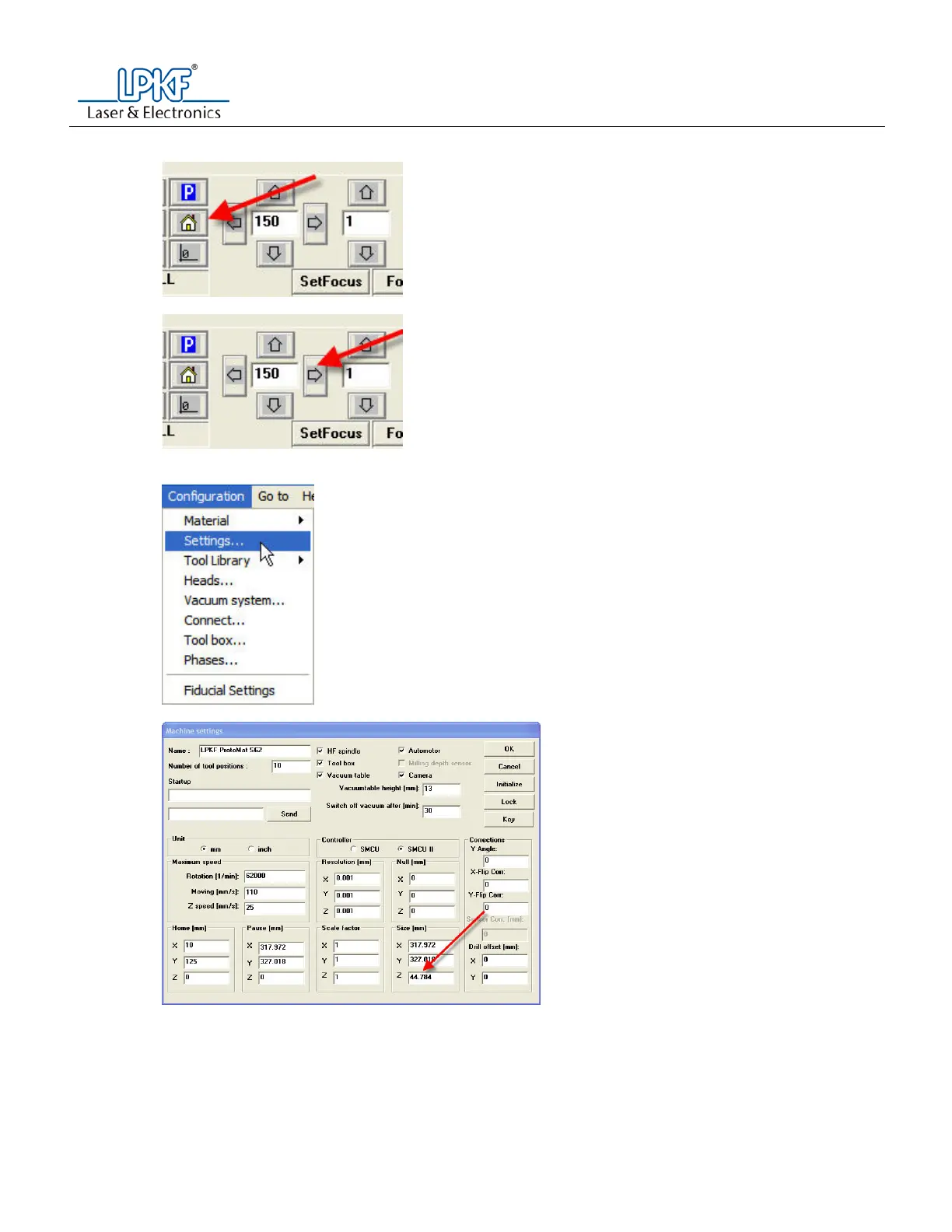

m. Move the machine to the home position.
n. Move the machine 150mm to the right (along the X axis)
o. Place the brown plastic strip in the center channel underneath the drill tip.
p. Go to the configuration menu and select settings.
q. Note the Z axis range in the table size portion along the bottom of the settings window.
