LPKF S64 - Step 2: Hood and Cover Removal; Step 3: Connection and Conductor Disconnection

Upgrade dispenser S64/ S104
Disassembly dispenser
9/15
LPKF Laser & Electronics AG | 05.10.2021 | V 1.0

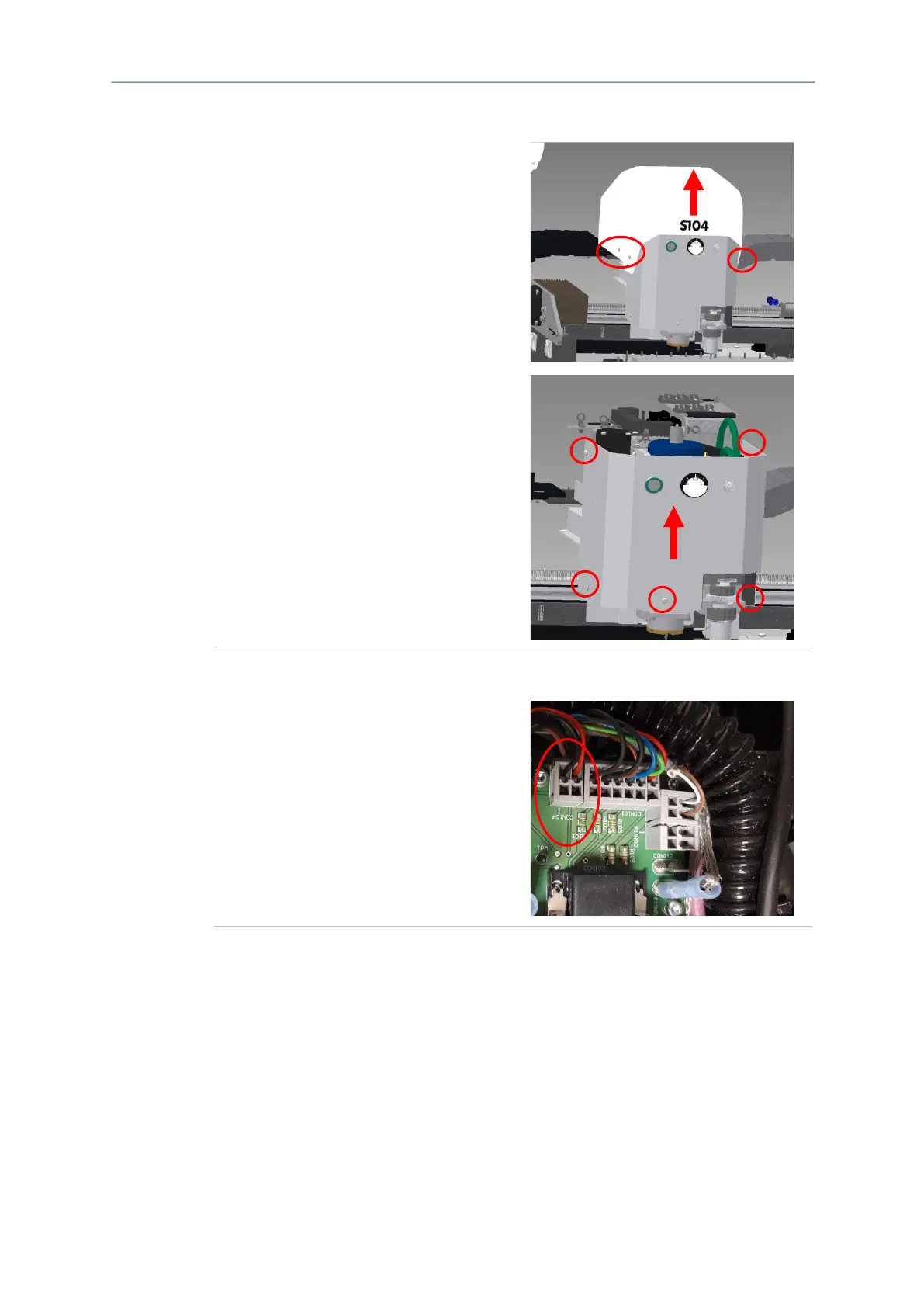

Step 2
 Open the machine hood
 Remove the four screws using a Torx
screwdriver T10
 Remove the upper head cover.
 Remove the five screws using a Torx
screwdriver T10
 Disconnect status light
 Remove the lower head cover.
Step 3
 Open the terminal connection CON 104
on the head pcb with a flat-bladed
screwdriver
 Remove the conductors.
 Cut the cable ties with the diagonal pliers.
