LRAD 500X
18
Description: A faulty amplifier can develop various symptoms, which affect the sound output
level and clarity.
To replace a faulty amplifier, perform the following steps.
1. Ensure the LRAD-500X is powered down and all connectors are disconnected.
2. Remove the 13 screws around the back plate of the LRAD-500X:
3. Lift the electronics enclosure out of the case and disconnect the emitter cable.
4. Mount replacement electronics enclosure and reapply all connections.
Total estimated repair time: 15 minutes.
Note: Depot level repairs internal to the electronics enclosure are detailed in the
maintenance handbook.

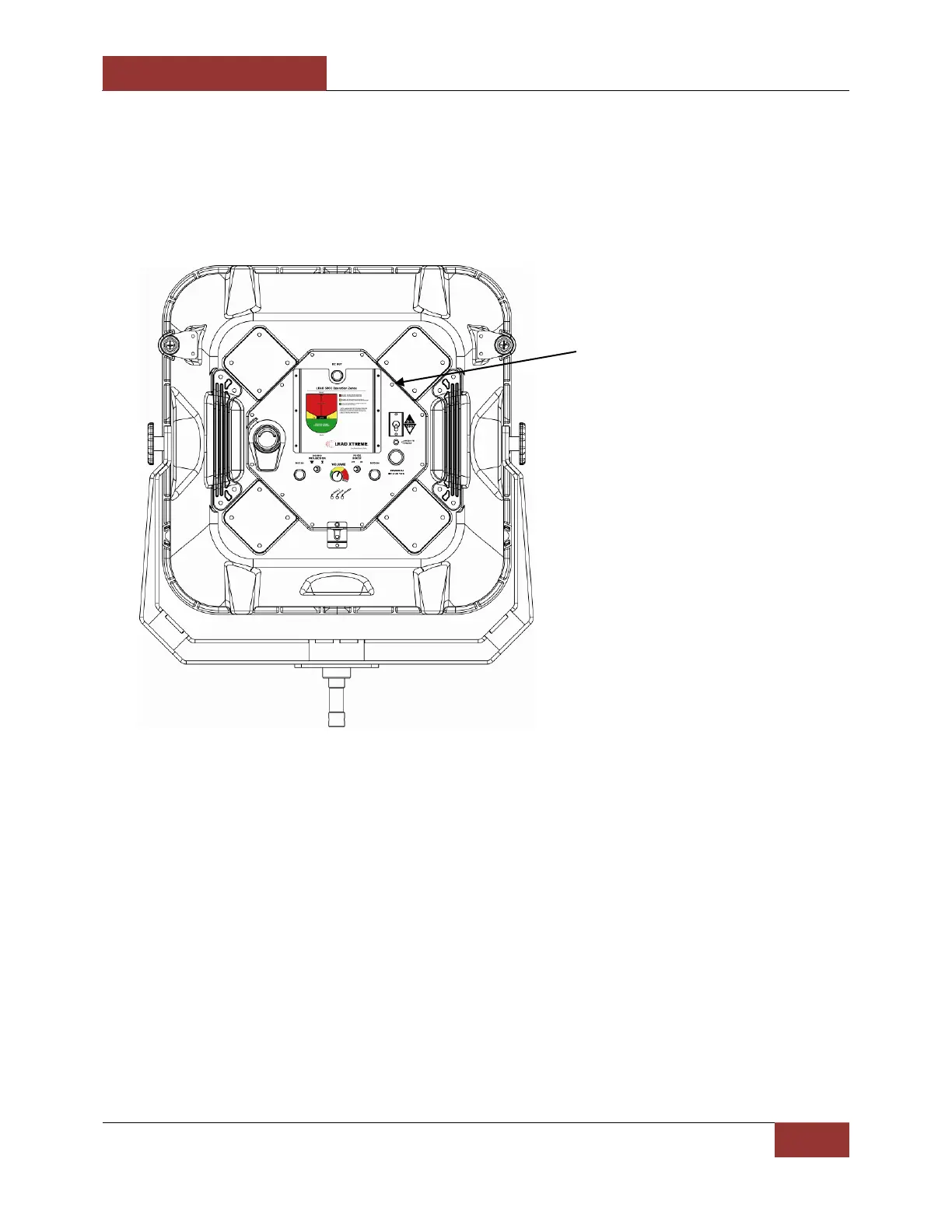

Remove 13X screws
