LRAD 500X
12

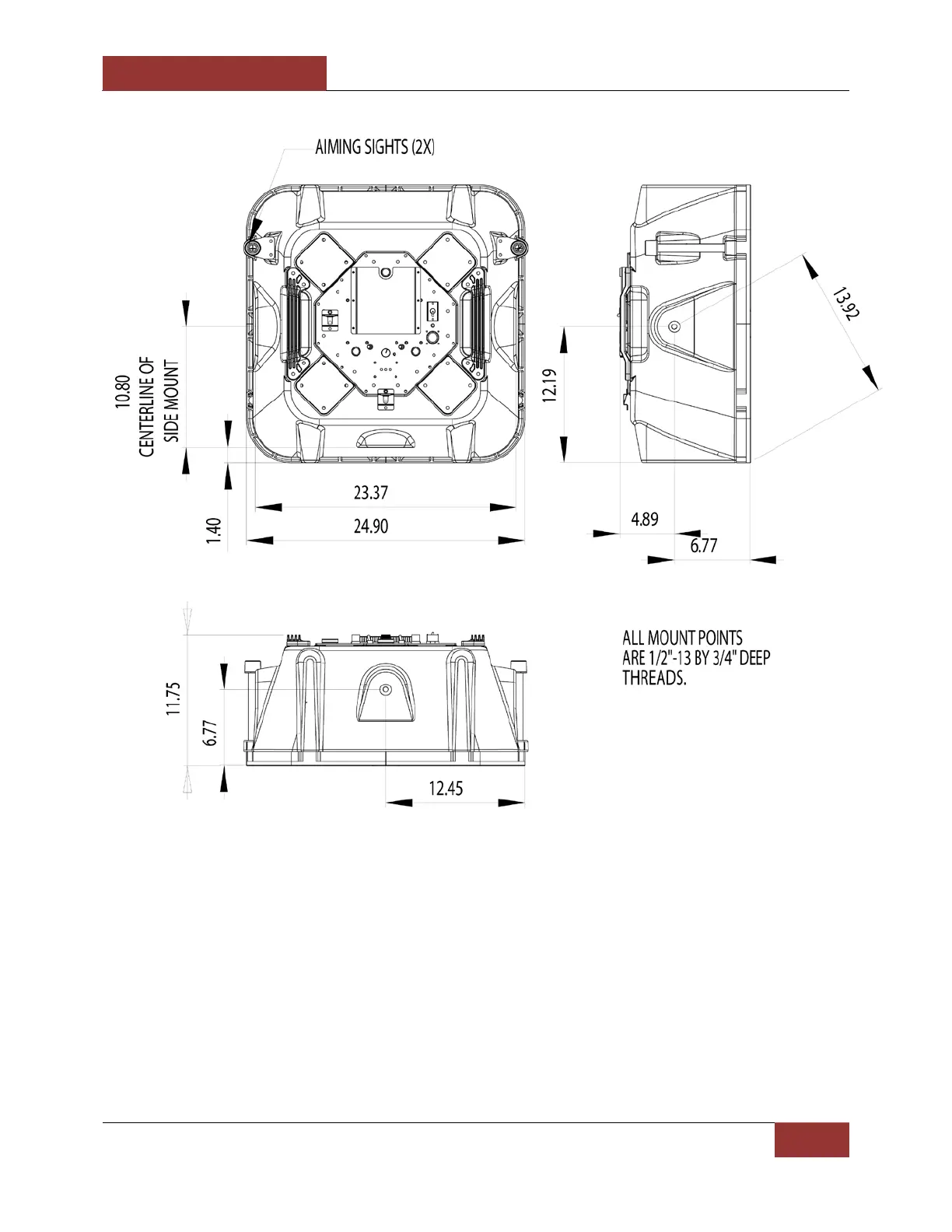

Figure 2: LRAD-500X mounting point details.
If mounting the LRAD-500X on a tripod or other mount, ensure that the tripod is secure and
stable to prevent the unit from being accidentally knocked or blown over.
In order to achieve the maximum communications range with the LRAD-500X, position the unit
at head-height or higher.
Ensure that the unit is pointed away from nearby buildings or personnel.
