Operator Controls and Connections
This section will familiarize the operator with the controls and interface connections on the
LRAD-500X unit. It is important that the user understands these controls prior to powering on
the unit in order to prevent accidental exposure to excessive sound pressure levels.
Rear Panel Connections
Auxiliary DC Output
The auxiliary DC output connector passes through DC power from the DC power input
connector for use on powered accessories that may be mounted on the LRAD-500X.
The output on this connector will always be at the same DC voltage as the input to the
LRAD-500X.
The connector provided is of the following MIL-38999 Type III designation:
MIL-38999/24WB5S

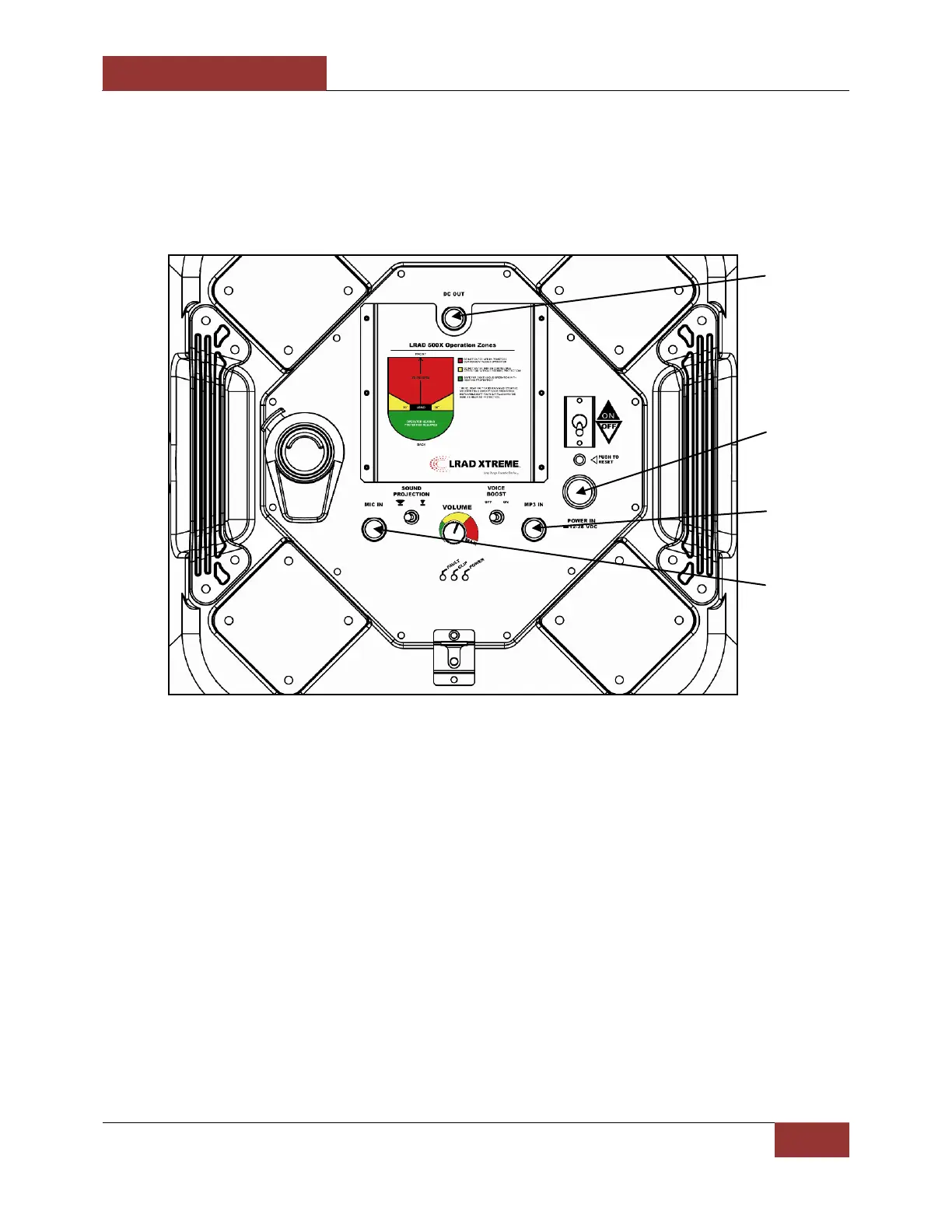

Auxiliary DC output
DC power input
MP3 player input
Microphone input
