LRAD 500X
9
Microphone Input
The microphone input connector is provided for connection with ATC’s handheld
microphone.
The connector provided is of the following MIL-38999 Type III designation:
MIL-38999/24WB98S

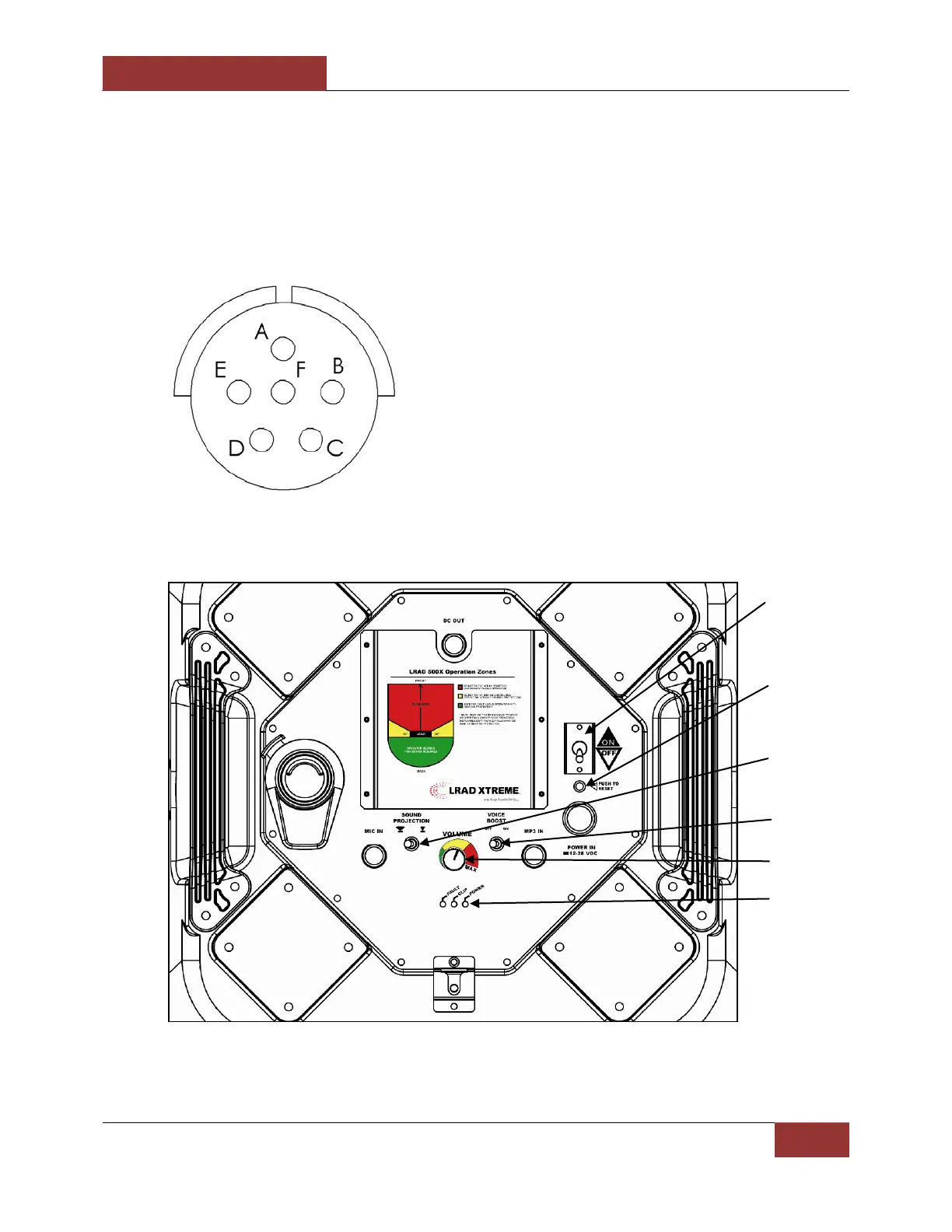

This connector provides six #20 socket contacts. The following figure shows the pinout
for this connector:
Pin A: Shield
Pin B: Signal -
Pin C: Signal +
Pins D thru F: Not used
Rear Panel Controls and Indicators
Main power switch
Resettable breaker
Sound Projection
switch
Volume control
Voice boost switch
LED status indicators
