LRAD 500X - DC Power Input; MP3 Player Input

LRAD 500X
8

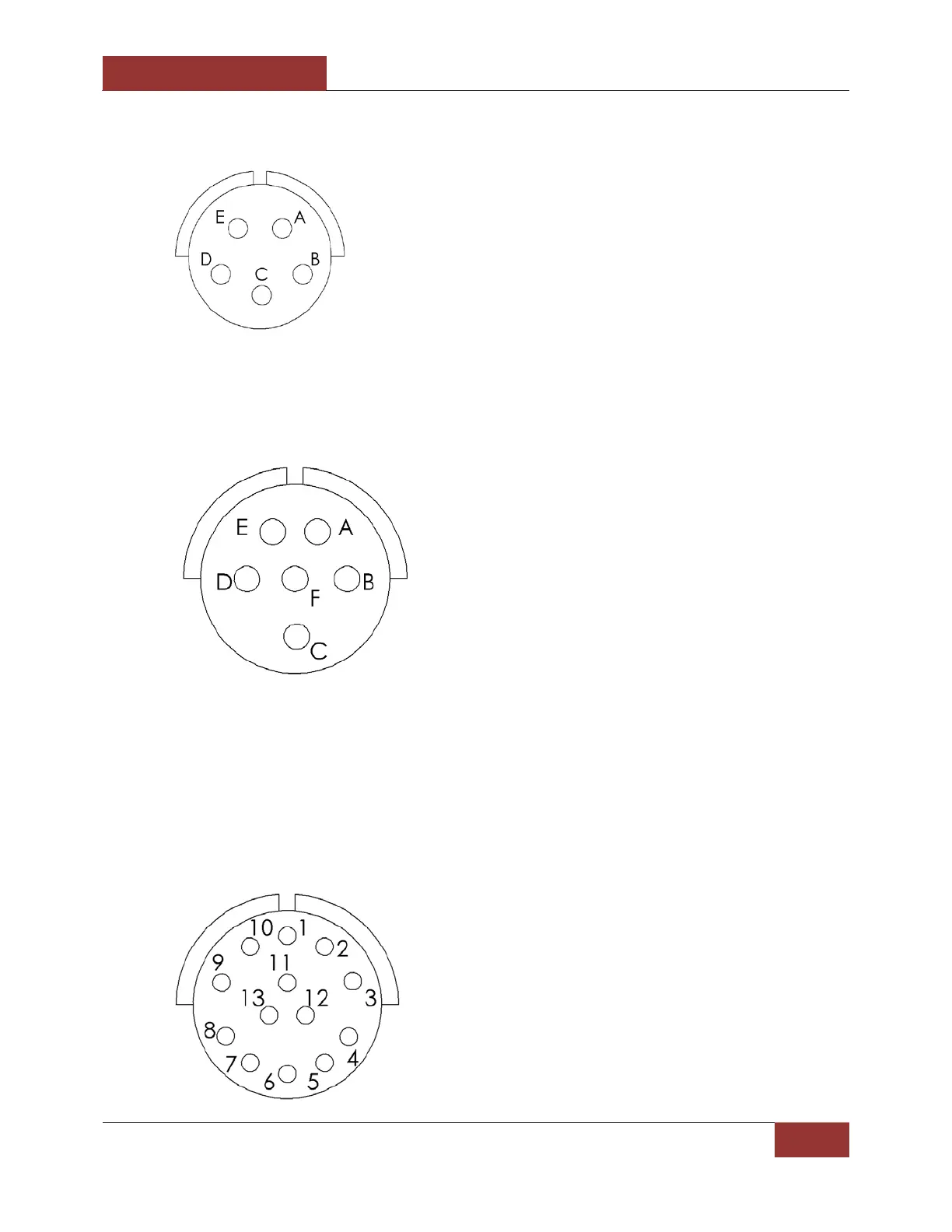

This connector provides five #20 socket contacts. The following figure shows the pinout
for this connector:
Contact A: DC output +
Contact B: DC output +
Contact C: Shield
Contact D: DC output –
Contact E: DC output -
DC Power Input
The DC power input is the main power input connector for the
unit. The LRAD-500X can operate at DC input voltage levels between 12 and 28VDC.
The connector provided is of the following MIL-38999 Type III designation:
MIL-38999/24WE6P
This connector provides six #12 pin contacts. The following figure shows the pinout for
this connector:
Pin A: DC in + (RED WIRE)
Pin B: DC in + (ORANGE WIRE)
Pin C: Shield
Pin D: DC in – (BLACK WIRE)
Pin E: DC in – (BROWN WIRE)
Pin F: Not used
MP3 Player Input
The MP3 player input connector is provided for
connection with ATC’s handheld MP3 player. This connection accepts line-level audio in
and powers the MP3 player.
The connector provided is of the following MIL-38999 Type III designation:
MIL-38999/24WB35S
This connector provides thirteen #22 socket contacts. The following figure shows the
pinout for this connector:
Pin 1: +5.2VDC Out
Pin 2: Signal +
Pin 3: Signal -
Pin 4: DC ground
Pin 5: Drain wire
Pins 6 to 13: Not used
Note: Input signal level is not to exceed 280mV RMS.
