, a minimal amount of assembly is required to attach the battery holder
assembly (p/n 126370001) to the smart batteries (p/n 0221029). The following pictures
illustrates the assembly procedure:
Note: The Allen screwdriver illustrated in the fourth frame (see next
page) is supplied with the CG-6 Spare Parts Kit (p/n 888025).

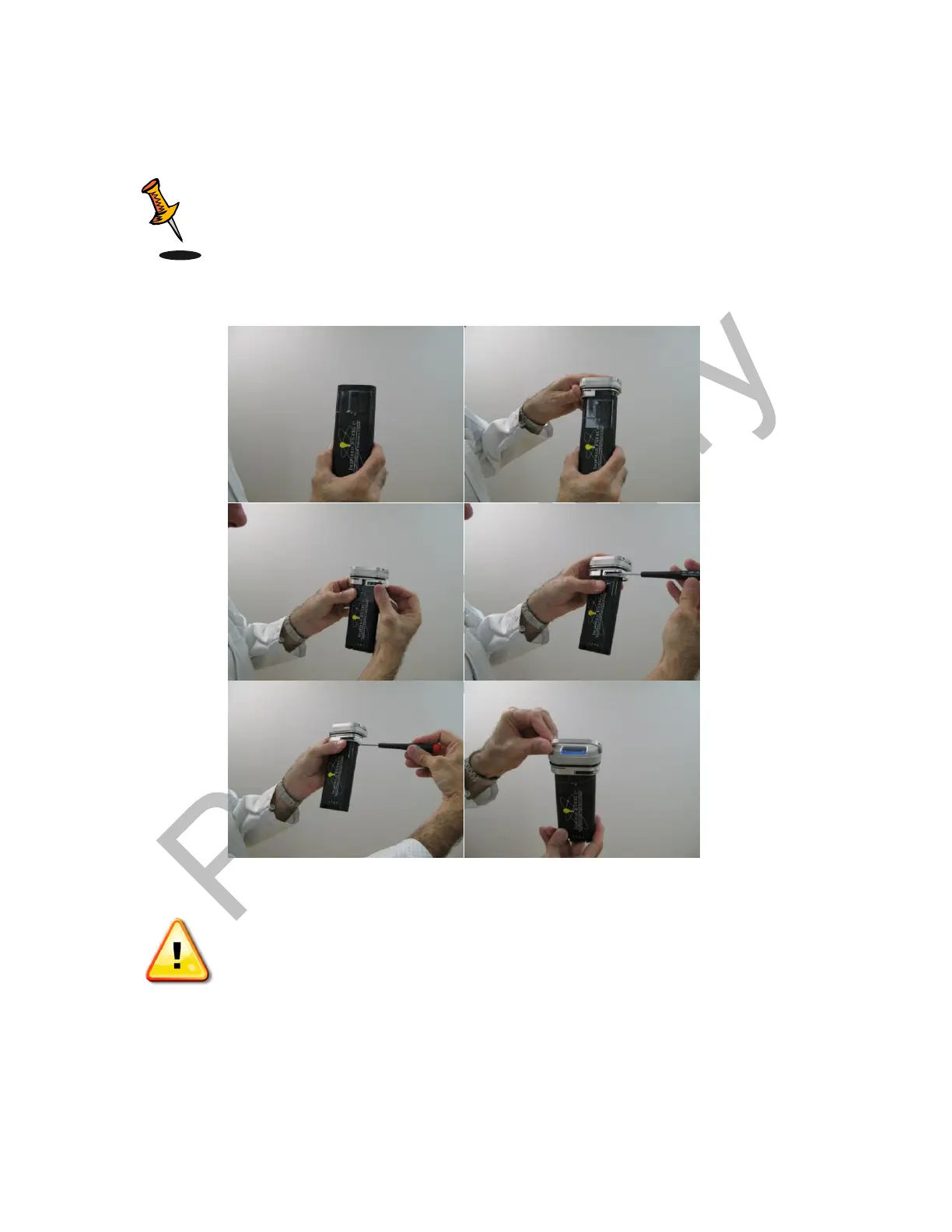

Figure 2-6 Assembling the battery packs
Important: The battery cap assembly handle must be on the side of
the battery where its logo is located, as per the last picture frame.
