LS tractor G3033 - Adjusting Wheel Tracks and Tire Replacement (Rear Wheel)

(11) Adjusting Wheel tracks and
tire replacement (Rear wheel)
 Track between rear wheels
1082mm (42.6in.) ~ 1338mm (52.7in.)
 If the front wheel track is adjusted, check the
clearance between tires and tractor body case
by case. If necessary, the steering angle must
be adjusted as following page.

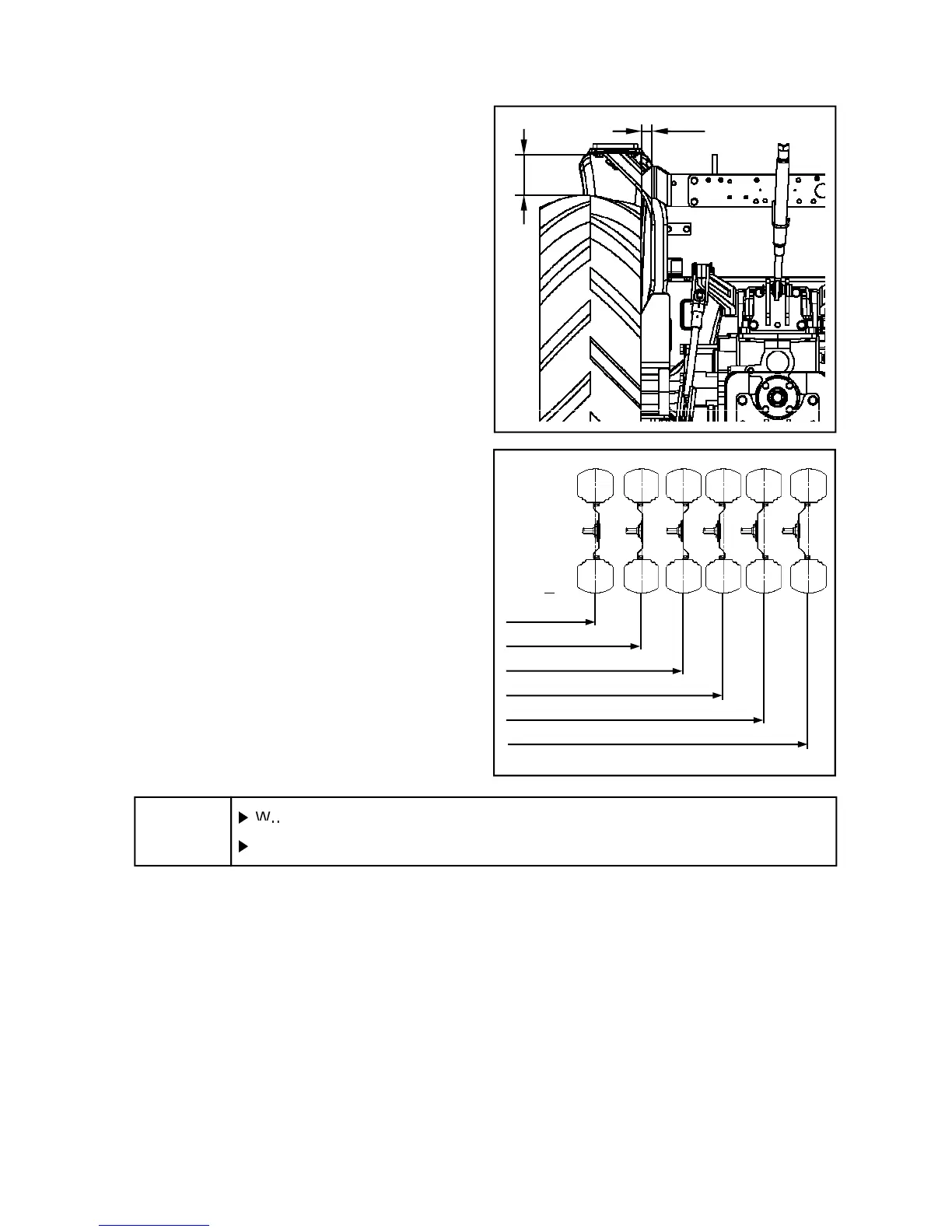

 When adjusting rear wheel track, check the
radial and lateral clearance between rear tire
and tractor chassis as below.
-
A : 15mm (0.6 in) (Minimum)
B
A
▶
When adjusting the wheel track, pay attention to the direction of tire lugs.
-
A : 15mm (0.6 in) (Minimum)
- B : 30mm (1.2 in) (Minimum)
1082 (42.6)
1138 (44.8)
1166 (45.9)
1222 (48.1)
1282 (50.5)
1338 (52.7)
Unit : mm (inch)
4
4 4
4 - 19
▶
When adjusting the wheel track, pay attention to the direction of tire lugs.
▶ if it shows /\ shape when looked behind, it is correct.
Notice
