4 -10

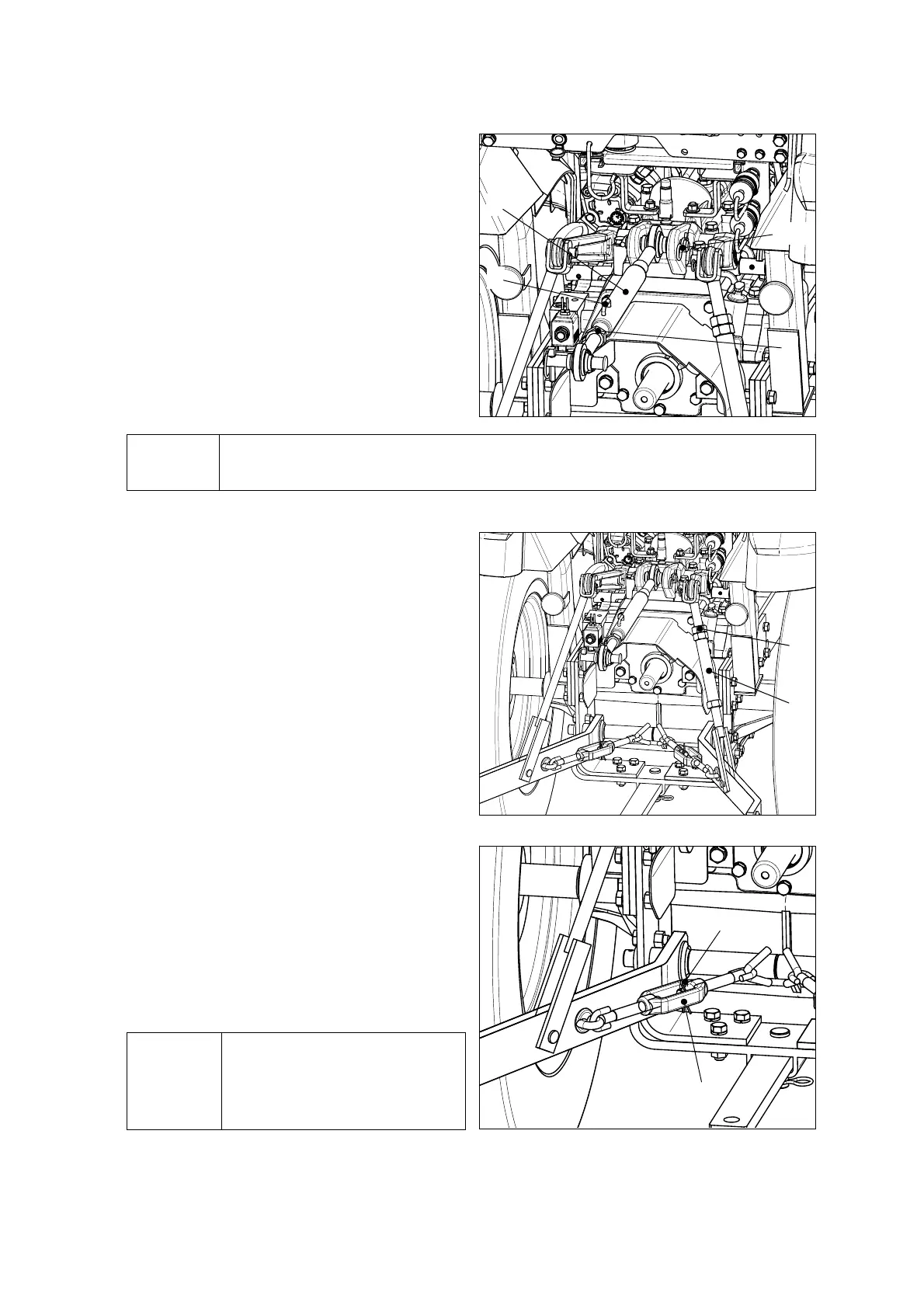

① Upper link installation and
adjustment
z Adjust the upper link ① depending on the
implements.
z Length of the upper link ① can be adjusted by
turning the grip ②.
z Fasten the lock nut ③.
z Adjusting range : 15.7 ~ 29.5 inch.
▶ Insert the snap-pin ⑤ firmly to prevent the upper link pin ④ from being escaped.Notice
② Adjustment of the lift rod’s length
z Lift rod (RH) can be adjusted by loosening the
lock-nut ②, and turning the body ①.
z After adjusting, tighten the lock-nut ② again.
③ Adjustment of stabilizer’s length
z The length of the stabilizer can be adjusted by
turning the handle ② , after removing the fixing-
pin ①.
z After adjusting, insert the fixing-pin ① again.
▶ Adjust the lateral swinging
clearance of the implement to
be within 20~40mm (0.8~1.6 in).
Notice
②
①
④⑤
③
①
②
①
②
