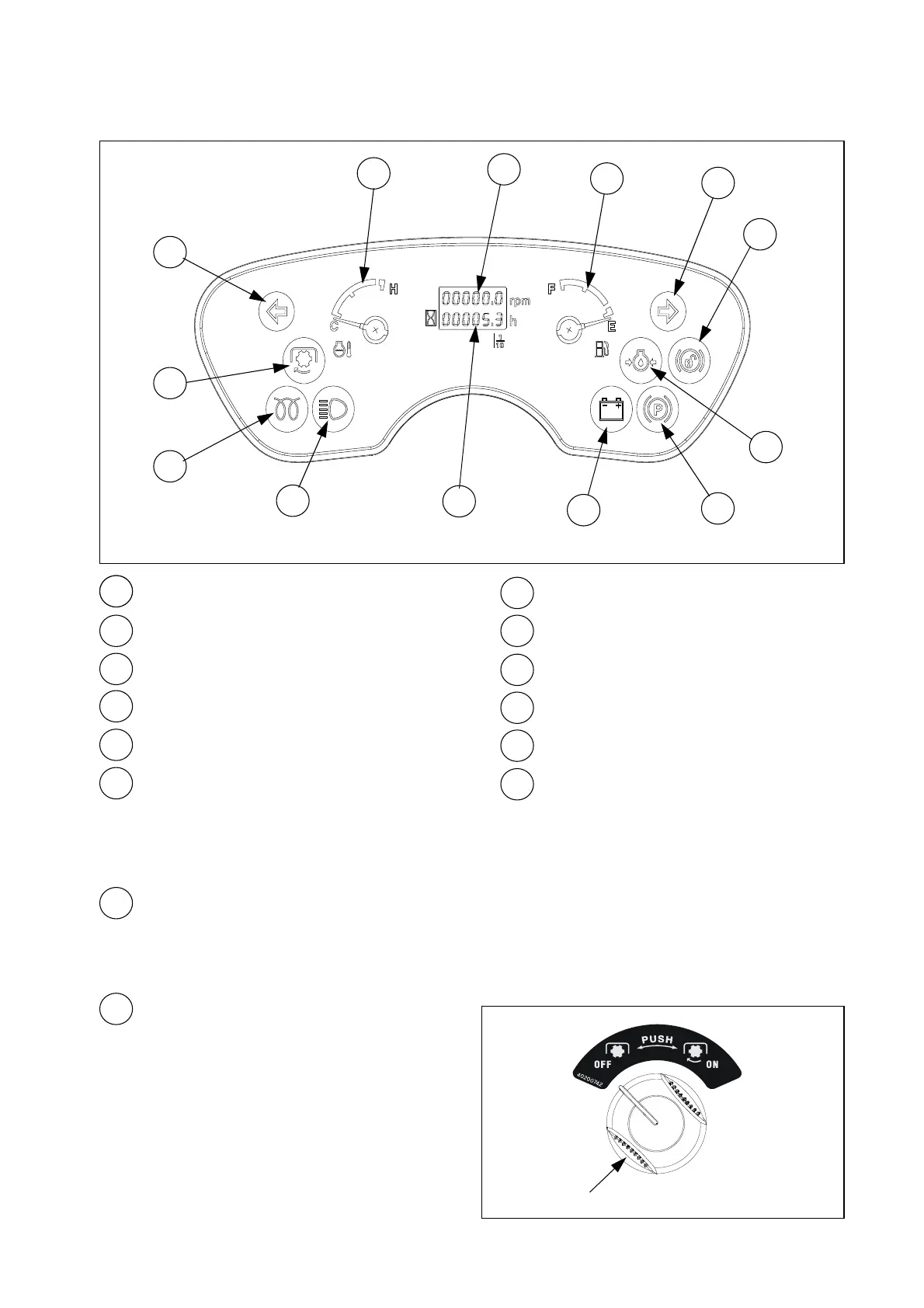

(1) Instrument panel
1
2
6
7
8
9
10
11
12
3
4
5
21
Turn signal indicator (Left / Right)
3
Cold start aid indicator
2
PTO operation indicator
4
High beam indicator
5
Engine coolant temperature gauge
6
Tachometer
7
Hour meter
8
Fuel level gauge
9
Battery charging indicator
12
Engine oil pressure indicator
10
Parking brake indicator
11
One side brake indicator (Not used)
1
Turn signal indicator (Left / Right)
z When turning the turn signal light switch to the left/right direction, the front/rear turn signal lights
are blinked, This indicator shall be blinked simultaneously.
1
PTO switch
2
PTO operation indicator
z When turning PTO switch ON while the engine
is running and PTO lever (if fitted) is engaged,
the PTO shaft shall rotate and this indicator
shall be turned on.
