LS tractor J2023H - Adjusting Wheel Tracks and Tire Replacement; Tires and Load Capacity

4 -19

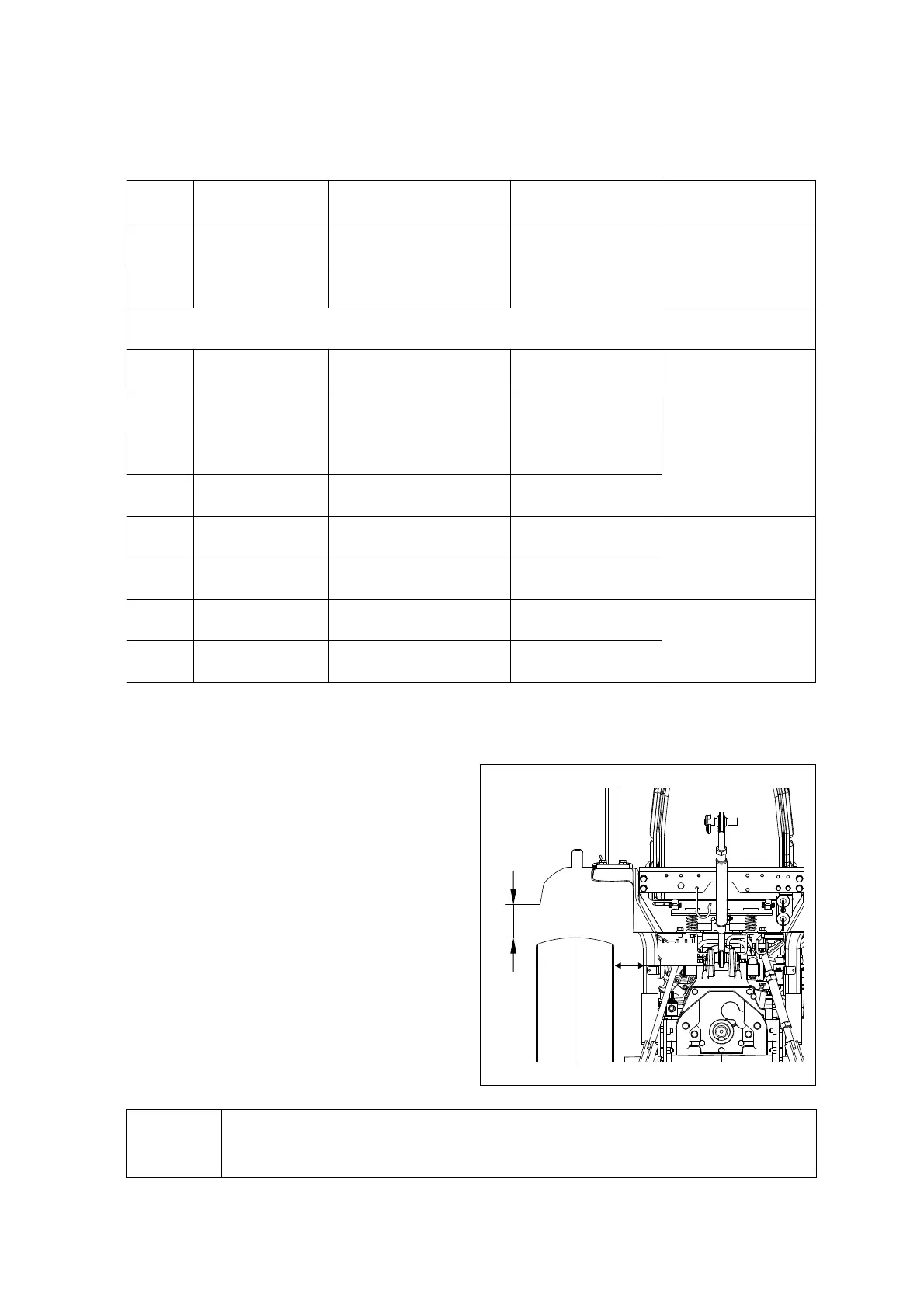

(6) Tires and Load capacity
(*) 1 : Front axle, 2 : Rear axle
Axle No.
(*)
Tires
Standard tire air pressure
(kg/cm2)
Load capacity (x2)
(kg)
Maximum mass(es)
1 6.0-12 4PR 1.8 (180 KPa, 26 psi) 650 (1433 lb)
1608 (3545 lb)
2 9.5-16 6PR 2.2 (216 KPa, 32 psi) 1450 (3197 lb)
Optional Tire
1 23x8.5-12 4PR 2.5 (245 KPa, 36 psi) 1334 (2941 lb)
1608 (3545 lb)
2 12-16.5 6PR 2.8 (275 KPa, 41 psi) 3828 (8439 lb)
1 23x8.5-12 4PR 1.6 (157 KPa, 23 psi) 1012 (2231 lb)
1608 (3545 lb)
2 33x12.5-16.5 4PR 2.1 (206 KPa, 31 psi) 2092 (4612 lb)
1 18x8.50-8 4PR 1.5 (147 KPa, 21 psi) 740 (1631 lb)
1608 (3545 lb)
2 26x12.0-12 4PR 1.4 (137 KPa, 20 psi) 1614 (3558 lb)
1 6.0-12 4PR 1.8 (180 KPa, 26 psi) 650 (1433 lb)
1608 (3545 lb)
2 300/65 R18 2.5 (245 KPa, 36 psi) 2500 (5512 lb)
(7) Adjusting Wheel tracks and
tire replacement
▶ When adjusting the wheel track, pay attention to the direction of tire lugs.
▶ if it shows “/\” shape when looked behind, it is correct.
Notice
z If the front wheel track is adjusted, check the
clearance between tires and tractor body case
by case. If necessary, the steering angle must
be adjusted.
(See page 4-22 in this manual)
z When adjusting rear wheel track, check the
radial and lateral clearance between rear tire
and tractor chassis as below.
- A : 15mm (0.6 in) (Minimum)
- B : 30mm (1.2 in) (Minimum)
“B”
“A
