LS tractor LL2100 User Manual

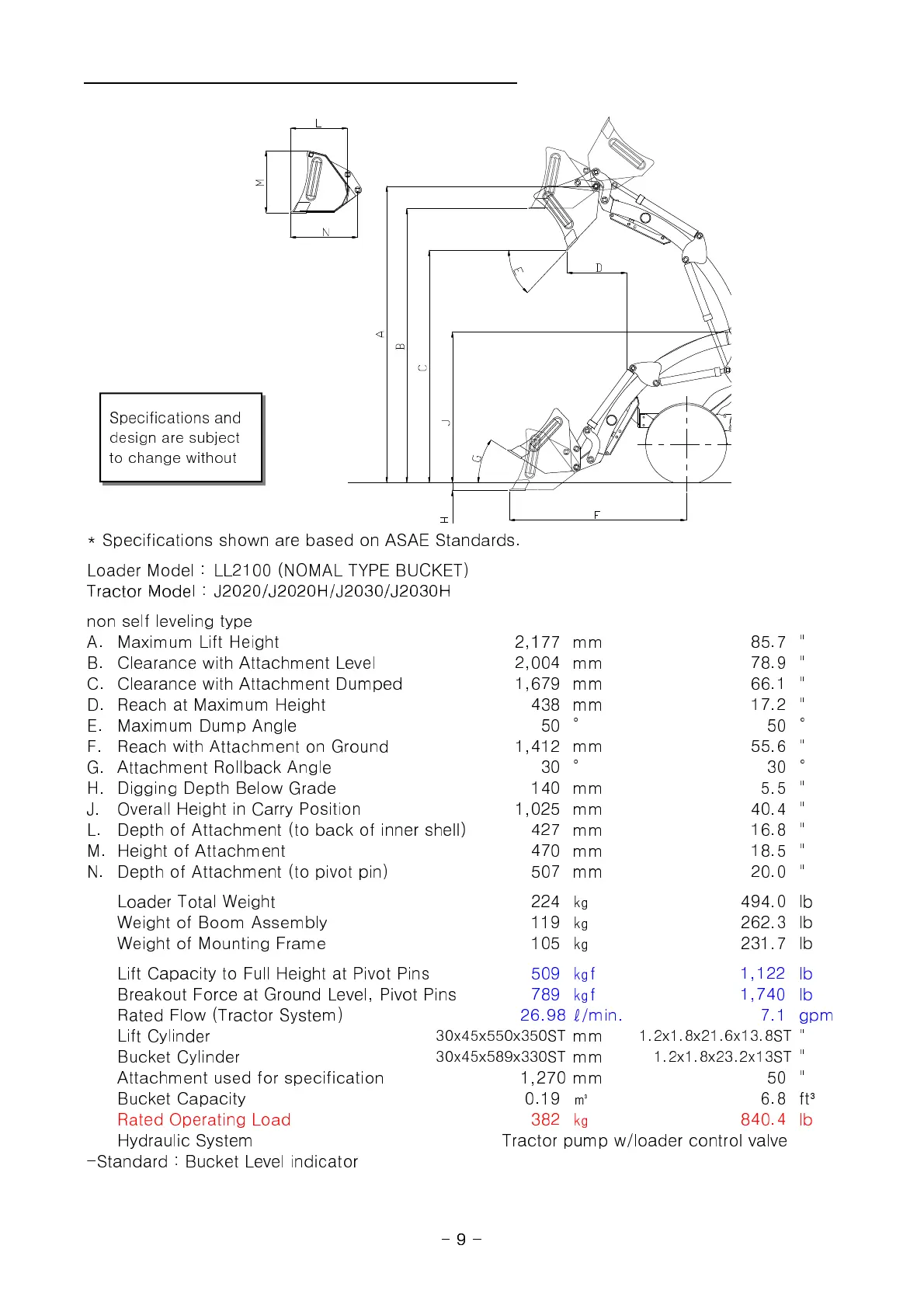

LOADER SPECIFICATION - NOMAL TYPE
* Specifications shown are based on ASAE Standards.
Loader Model : LL2100 (NOMAL TYPE BUCKET)
Tractor Model :
J2020/J2020H/J2030/J2030H
Specifications and
design are subject
to change without
- 9 -
Tractor Model :
J2020/J2020H/J2030/J2030H
non self leveling type
A. Maximum Lift Height 2,177 mm 85.7 "
B. Clearance with Attachment Level 2,004 mm 78.9 "
C. Clearance with Attachment Dumped 1,679 mm 66.1 "
D. Reach at Maximum Height 438 mm 17.2 "
E. Maximum Dump Angle 50 ° 50 °
F. Reach with Attachment on Ground 1,412 mm 55.6 "
G. Attachment Rollback Angle 30 ° 30 °
H. Digging Depth Below Grade 140 mm 5.5 "
J. Overall Height in Carry Position 1,025 mm 40.4 "
L. Depth of Attachment (to back of inner shell) 427 mm 16.8 "
M. Height of Attachment 470 mm 18.5 "
N. Depth of Attachment (to pivot pin) 507 mm 20.0 "
Loader Total Weight 224 ㎏ 494.0 lb
Weight of Boom Assembly 119 ㎏ 262.3 lb
Weight of Mounting Frame 105 ㎏ 231.7 lb
Lift Capacity to Full Height at Pivot Pins 509 ㎏f 1,122 lb
Breakout Force at Ground Level, Pivot Pins 789 ㎏f 1,740 lb
Rated Flow (Tractor System) 26.98 ℓ/min. 7.1 gpm
Lift Cylinder
30x45x550x350ST
mm
1.2x1.8x21.6x13.8ST
"
Bucket Cylinder
30x45x589x330ST
mm
1.2x1.8x23.2x13ST
"
Attachment used for specification 1,270 mm 50 "
Bucket Capacity 0.19 ㎥ 6.8 ft³
Rated Operating Load 382 ㎏ 840.4 lb
Hydraulic System Tractor pump w/loader control valve
-Standard : Bucket Level indicator
- 9 -
