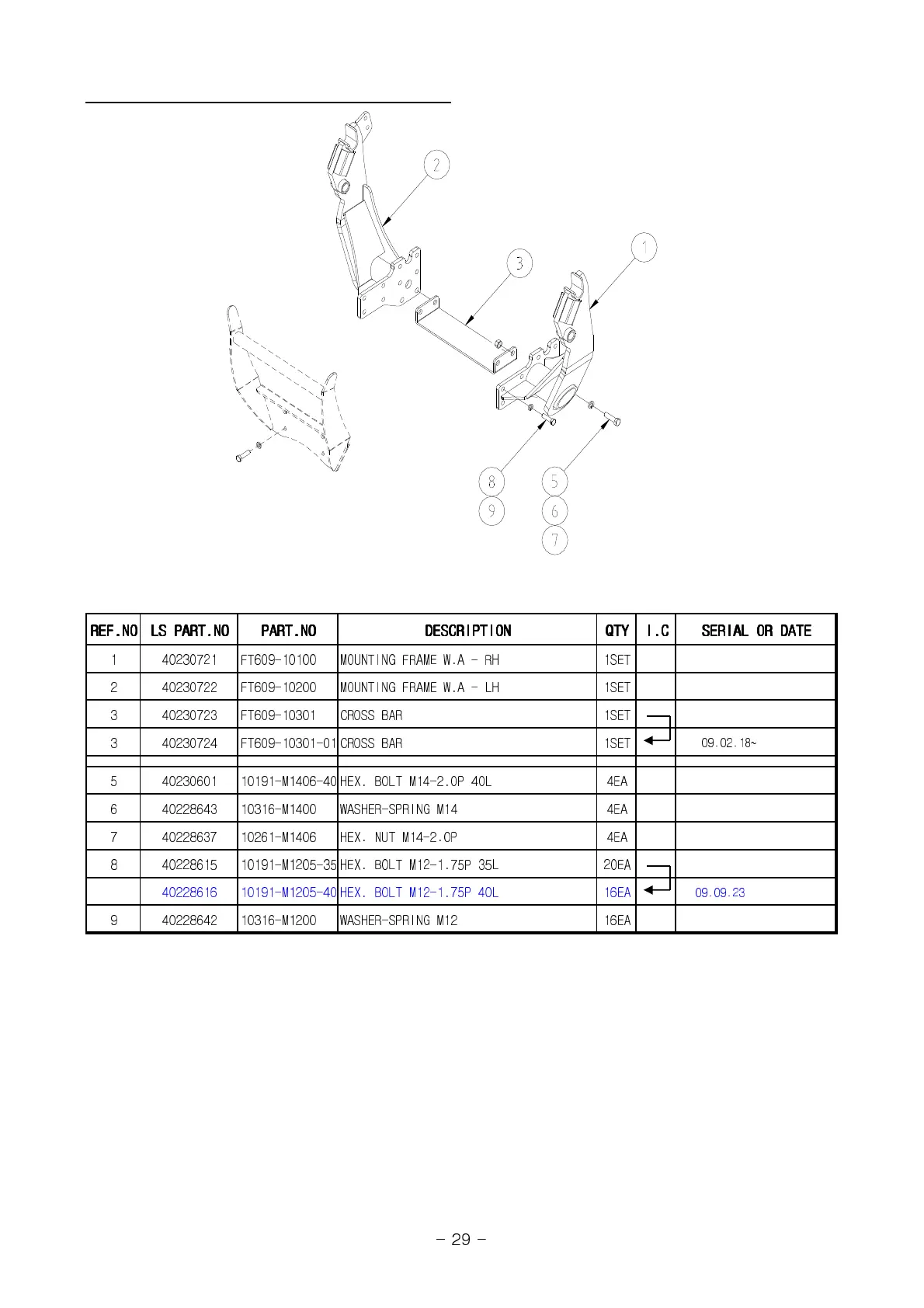

MOUNTING FRAME ASSEMBLY

REF.NO

REF.NOREF.NO

REF.NO LS PART.NO

LS PART.NOLS PART.NO

LS PART.NO PART.NO

PART.NOPART.NO

PART.NO DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION QTY

QTYQTY

QTY I.C

I.CI.C

I.C SERIAL OR DATE

SERIAL OR DATESERIAL OR DATE

SERIAL OR DATE

1 40230721 FT609-10100 MOUNTING FRAME W.A - RH 1SET

2 40230722 FT609-10200 MOUNTING FRAME W.A - LH 1SET

3 40230723 FT609-10301 CROSS BAR 1SET

3 40230724 FT609-10301-01 CROSS BAR 1SET

09.02.18~

5 40230601 10191-M1406-40 HEX. BOLT M14-2.0P 40L 4EA

6 40228643 10316-M1400 WASHER-SPRING M14 4EA

7 40228637 10261-M1406 HEX. NUT M14-2.0P 4EA

8 40228615 10191-M1205-35 HEX. BOLT M12-1.75P 35L 20EA

40228616 10191-M1205-40 HEX. BOLT M12-1.75P 40L 16EA

09.09.23

9 40228642 10316-M1200 WASHER-SPRING M12 16EA

- 29 -
